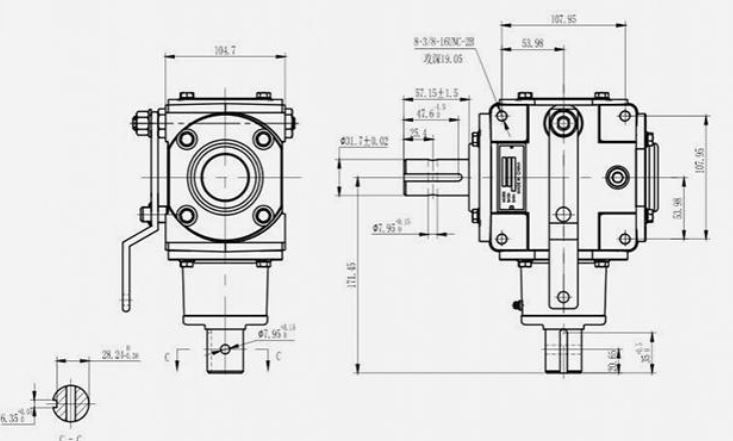

Agricultural Gearbox Grain Conveyor Gearbox
We could offer proper agricultural gearbox for customer's gram conveyor system if the application.
dimension and Input speed and gear ratio are offered by customers.
ODM (original design manufacturing) service is provided when manufacturing agricultural gearbox (used in
grain conveyor system).
The folloWings are its technical parameters:
| Model Number | EP2309832 |
| Gearing Arrangement | Bevel I Miter |
| Output Torque | 0.2-0.4Nrn before asssernbly oil seal |
| Rated Power | 16HP |
| Input Speed | 540 rpm |
| Output Speed | 540 rpm |
| Ratio | 1:01 |
| Housing material | HT250 |
| Shaft material | 20CrMnti |
| Weight | 12kg |
| Bolt torque | 16-22NM |
| Mould No | 4.233 |
| Color | Customer Requ..sts |
| Teeth | 19/19 |
| Noise | 82db-1 meter |
