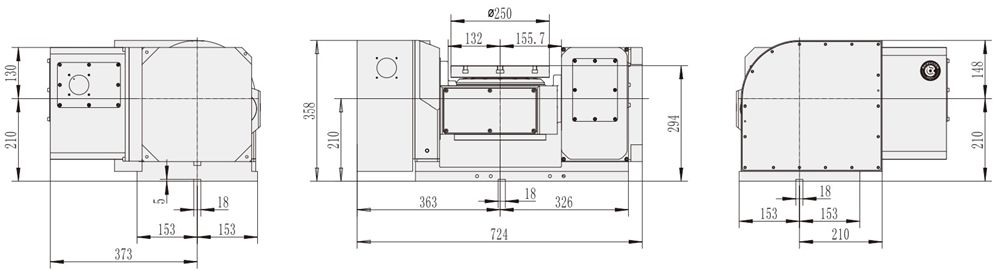

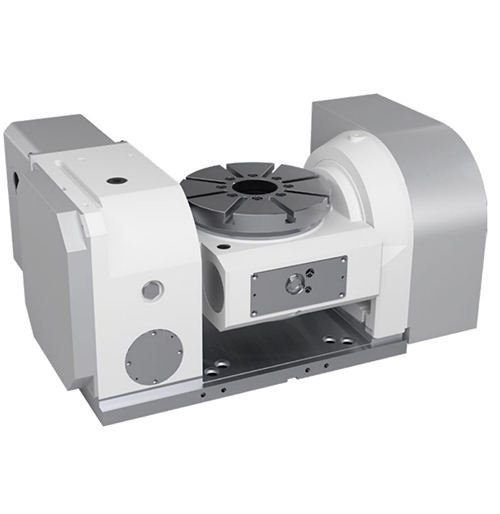

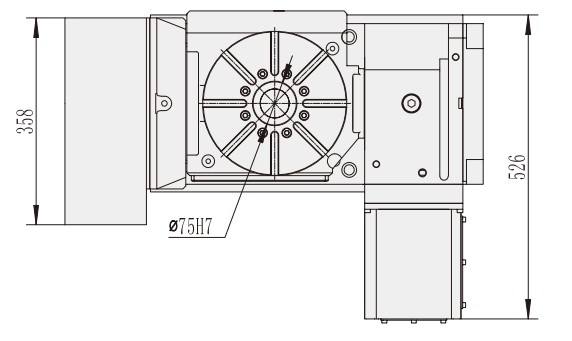

WT-S250 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanismProduct ModelWT-S250Servo motor (optional)Rotation axis β8i HF-104;Tilt axis β12i HF-154Panel SizeΦ250mmReduction RatioRotation axis 1:120 ;Tilt axis 1:120Disk ApertureΦ80mmMaximum Rotation Speed......

Send Inquiry

Product Description

The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanism

Product Model	WT-S250	Servo motor (optional)	Rotation axis β8i HF-104;Tilt axis β12i HF-154
Panel Size	Φ250mm	Reduction Ratio	Rotation axis 1:120 ;Tilt axis 1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	Rotation axis 33.3r.p.m ;Tilt axis 33.3r.p.m
Center Trough Hole	Φ50mm	Minimum Setting Angle	0.001°deg
Disk Height	294mm	Segmentation Accuracy	Rotation axis15″sec;Tilt axis 50″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	Rotation axis 4″sec;Tilt axis 8''sec
Positioning Button	18H7mm	Locking Method	Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	Rotation axis 70Kg/m ;Tilt axis 140Kg/m
Net Weight (about)	290Kg	Allowable Cutting Force	Rotation axis 55Kg.m ;Tilt axis 55Kg.m
Horizontal placement	100Kg	Placement	75KG

Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
