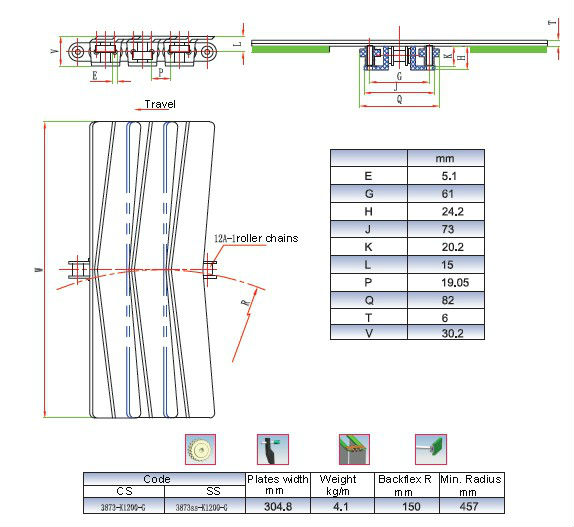

v patterned conveyor belts 3873SS-K1200-G
Temperature range: -40°~90° Plates material: POM
Color: Blue Roller base chain: standard 12A roller chain
Supply unit:1.524mtr (5ft) Max speed: 80m/min lubrication 50m/min dry
Working load: 3200N (mat.: CS), 1600N (mat.: SS) Packaging:1.524m/pc
Plates material: stainless steel or carbon steel
Max conveying length: 30m (mat.: CS), 24m (mat.: SS)
Main application : for vertical conveying of cans, glass bottles, etc..
Other Products:
Introduction of our company:
| Shanghai Lilai Chain Co.,LTD | ||||||
| Raydafon specialized in manufacturing conveyor chains, modular belts, sprockets and conveyor components. Since 1998 we have been supplying products to customers in Italy, Germany, Spain, etc. Now we have business all over the world. | ||||||
| Main application: | Food,beverage and Pharmaceutical industry etc,such as transportations of bottles. | |||||
| Certification: | ISO9001:2000 | |||||
| Note: | For the fast results, when requesting a quote: 1.Please inform quantities , material , sketches, drawings, lead time , etc. 2.We will reply you ASAP. 3. If you want to know more , please feel free to contact us. | |||||
Factory site and workshop:
Exhibitions:
Certification:
Packaging:
• Inner packing :pack in paper box
• Out packing: Cartons or wooden pallet
• Suitable for sea and inland shipment
• As customers request
Payment Terms:
• Loading Port: Shanghai China
• Samples Leading Time: 3-7 days
• Delivery Time: Within 7-15 days after ur payment
• Payment: L/C, T/T, Western Union
After sales service:
