Product Description

FEATURES AT A GLANCE

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m
3) Motor power: 0.12~200kW
4) Mounted form: foot-mounted and flange-mounted mounting

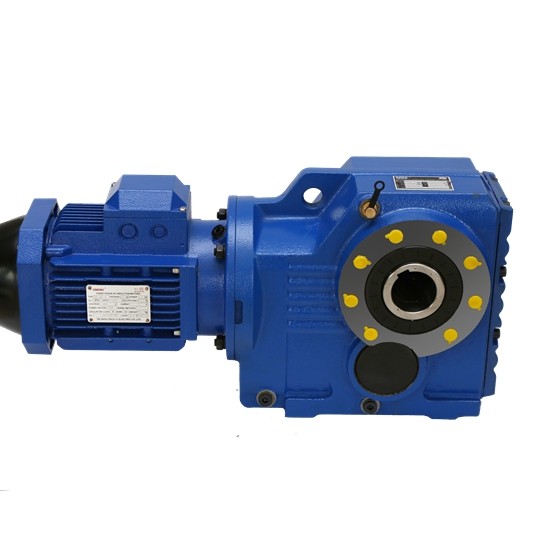

K series industrial helical gearbox bevel gear reducer is one kind of Helical Bevel type gearbox , High-stainless cast iron case .
,it is designed based on modularization , which bring many difference kinds of combinations ,mounting types ,and structure designs
.The detail classification of ratio can meet various of working condition .High Transmission efficiency ,Low energy consumption,
superior performance . The hard tooth surface gear use the high quality alloy steel , the process of carburizing and quenching,
grinding ,which give it follow characters : Stable transmission , low noise and temperature ,high loading ,long working life.
which widely use for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking ,
Sugar making , engineering Machines ,etc

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Product Name	K series industrial helical gearbox bevel gear reducer
Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm

Customer Photos

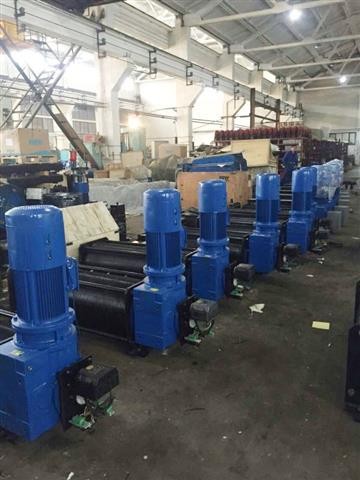

high power engine

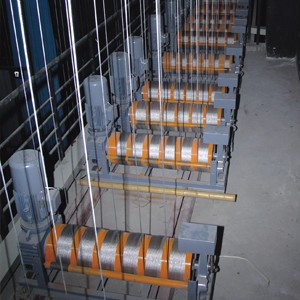

SLK USED BY stage equipment

SLK USED BYstage equipment
