Product Description

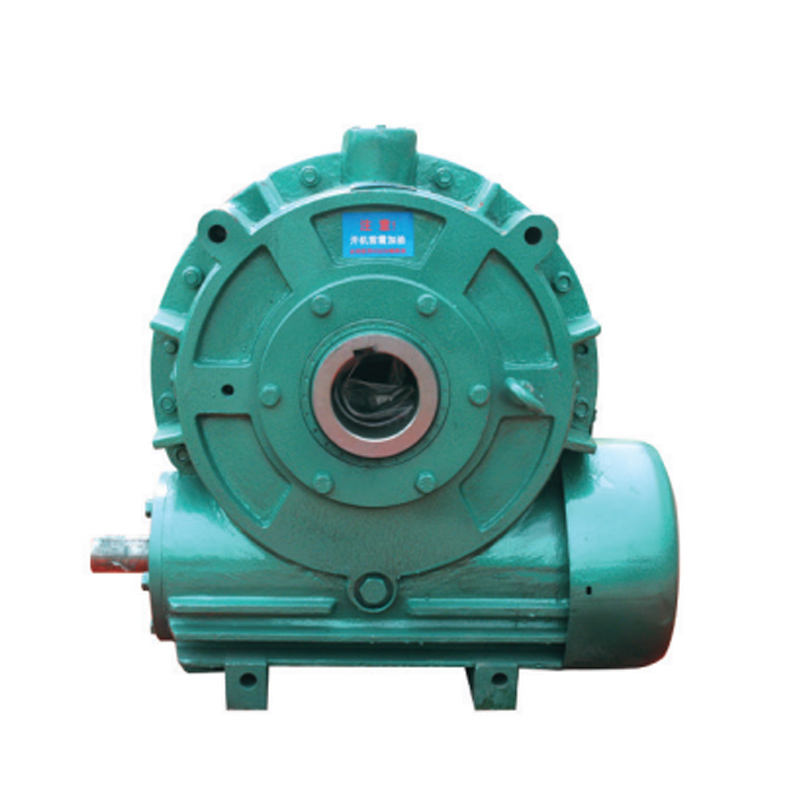

SCW Series Shaft Mounted Round Cylinder Decelerator Worm Gear box Speed Reducer Gearbox

Circular cylindrical worm reducer of shaft mounteduses the toroidal surface grinding wheel envelope forming (ZC1)cylindrical worm, worm gear tooth profile and the worm conjugate, using the mechanical standard J8/T6387-1992'Circular Cylindrical Worm Reducer of shaft mounted", it is widely used in metallurgy, mining, lifting, transportation,andchemical industry, construction, building materials and light industry and other mechanical drive retarding mechanism.This series reducer input power range between 0.7 to 202 kw, output torque between 180 to 33000 N.m. Has a largetransmission ratio, large carrying capacity, high transmission efficiency, reliable operation, long service life, etc.

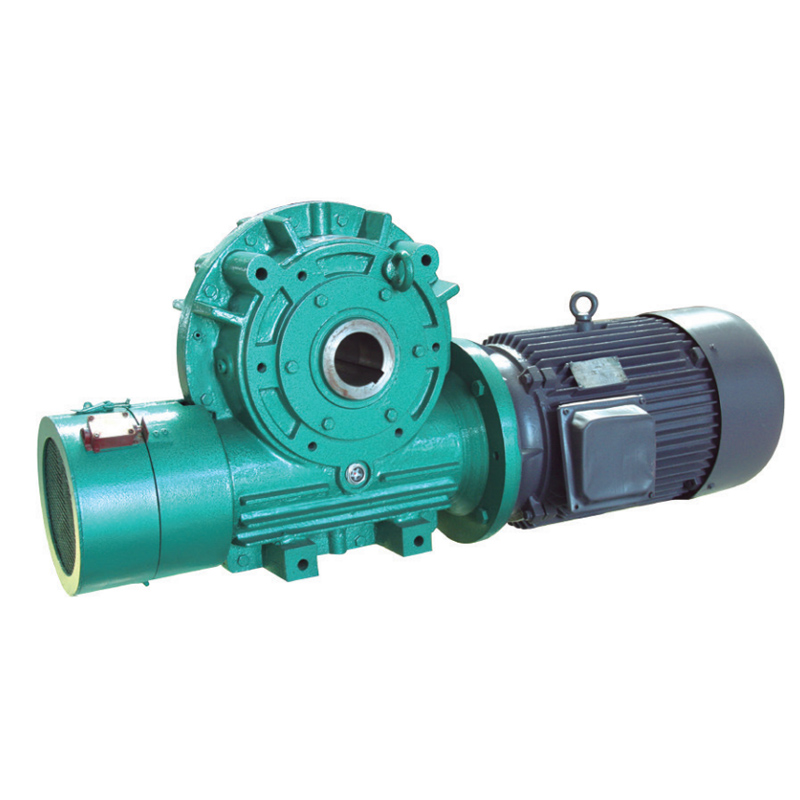

SCWUM

SCWU355

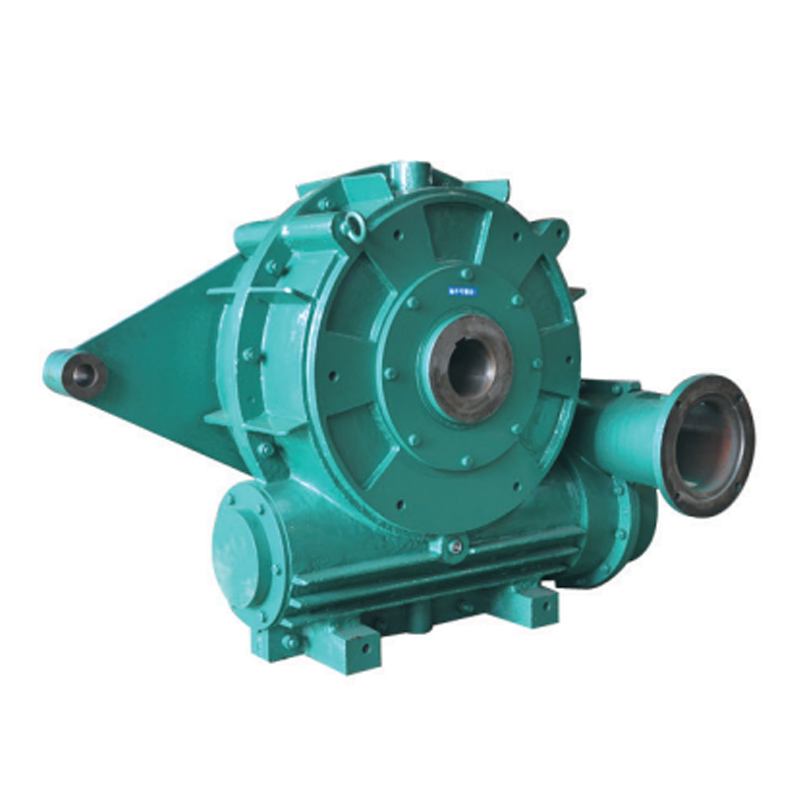

SCCWUMF355

Model

SCWU -worm under worm gear SCWUM - worm under the worm gear SCWS-worm in the side worm gear SCWSM- worm in the side worm gear, with motor and flange SCWO-worm on the worm gear SCWOM- worm on the worm gear, with motor and flangeSCWVl-Worm axis in the vertical direction

Type	Parameter
SCWU SCWS SCWO	Center distance	First series	63 80 100 125 160 200 250 315 400
	Center distance			Second series	140 180 225 280 355 450
		Ratio	5 6.3 8 10 12.5 16 20 2.5 31.5 40 50 63

Click here to contact us for more discounts!
