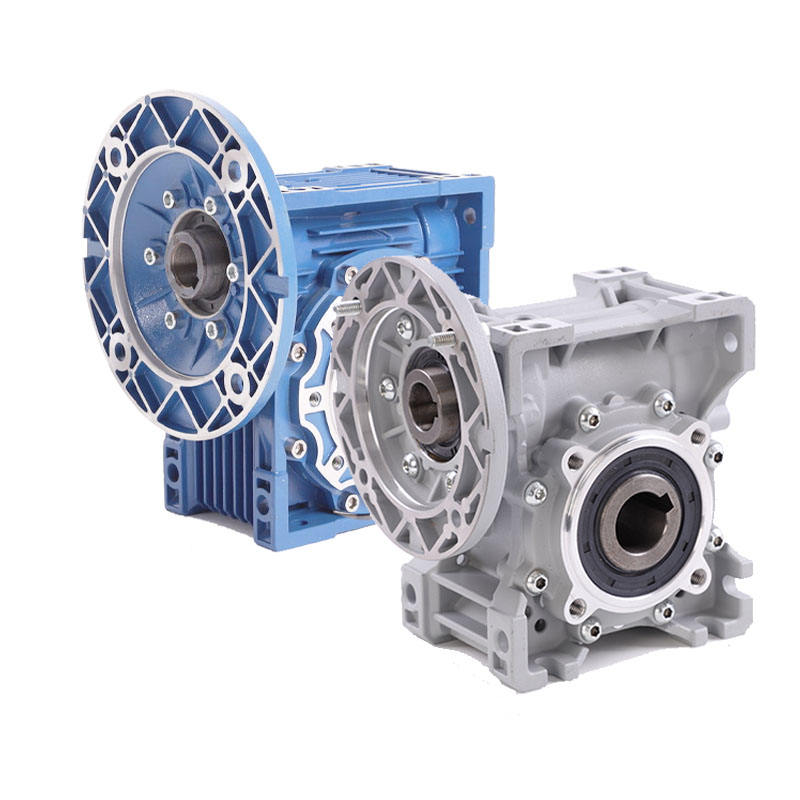

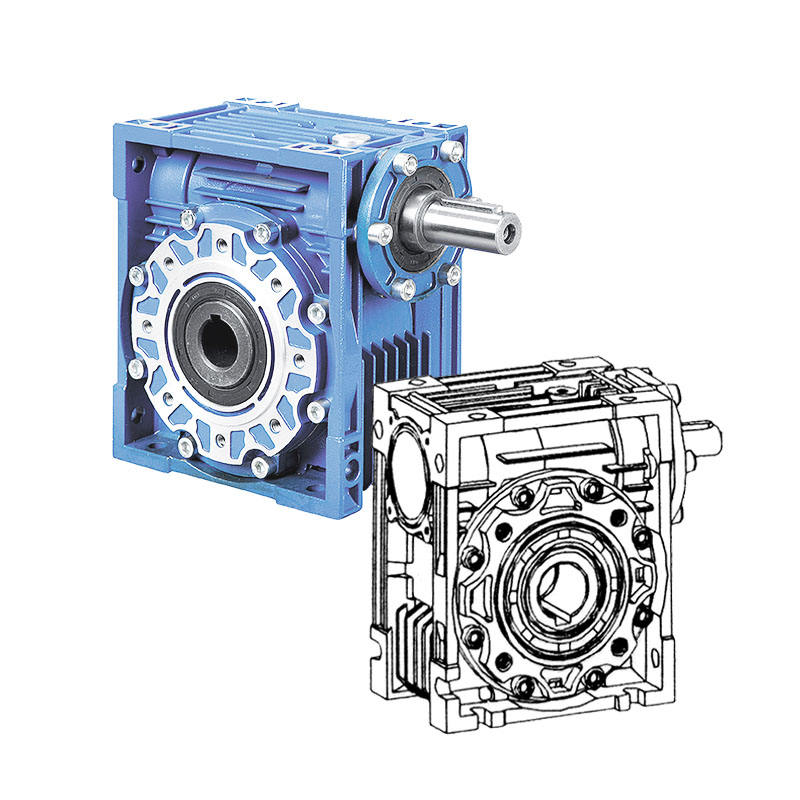

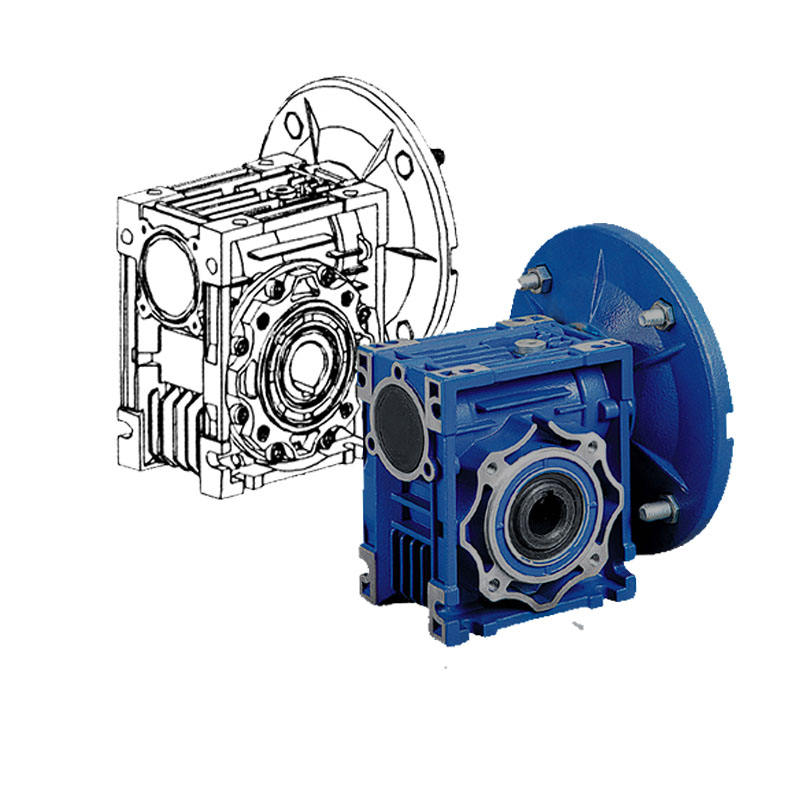

RV063 Ratio:1:7.5-1:100 Aluminium Worm Reduction Gear Speed Reducer Nrv Reducer

Raydafon Group's RV063 Aluminum Worm Reduction Gear Speed Reducer with ratio 1:7.5-1:100 delivers efficient power transmission for industrial applications. Its lightweight aluminum build, precise engineering, and durability make it ideal for machinery and automation, offering smooth operation and enhanced performance. This reliable reducer solves torque and speed control issues, setting itself apart with superior quality and versatility. Experience seamless integration and boost your projects with Raydafon Group's trusted solution.

Send Inquiry

Product Description

Product Information

Please tell us what you need:

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1
3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.

NMRV040:

RV063 Ratio:1:7.5-1:100 Aluminium Worm Reduction Gear Speed Reducer Nrv Reducer


   Type
  Worm Gear Speed Reducer / Gearbox / Reductor

  Model
  NMRV25/30/40/50/63/75/90/110/130/150/185

  Color
  Customized Color

  Packing
  Carton, Honey Comb Carton, Wooden Case with Wooden Pallet

  Usage
  Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.

  Flange
  IEC standard flange or customized dimensions

  Housing Material
  Aluminum&Cast iron

  Size
  11 sizes(WMRV25~WMRV185)

  Power
  0.06~22 KW

  Nominal torque
  ≤2548 N.m

  Ratio
  5~100

  For more models, please click here!

Warranty	3 years
Certification	CE
Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Energy & Mining
Customized support	OEM
Gearing Arrangement	Worm
Output Torque	740-1050
Input Speed	1400
Output Speed	14-186.7
Place of Origin	China
China	Zhejiang
Brand Name	EPG
nrv reducer	OEM is welcome.
Color	blue or gray or according to customer require
