RV Series Gearbox Manufacturer Reduction Gearbox Reductor

Discover Raydafon Group's RV Series Gearbox, a precision-engineered reduction gearbox reductor for industrial automation. Crafted with superior materials and advanced technology, it offers unmatched durability, efficiency, and smooth operation, ideal for engineers and manufacturers in robotics and machinery. Experience reliable performance that solves vibration issues, enhances productivity, and stands out with its compact design and competitive pricing. Trust in quality for seamless integration and lasting value.

Send Inquiry

Product Description

Product Information

Please tell us what you need:

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1
3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.

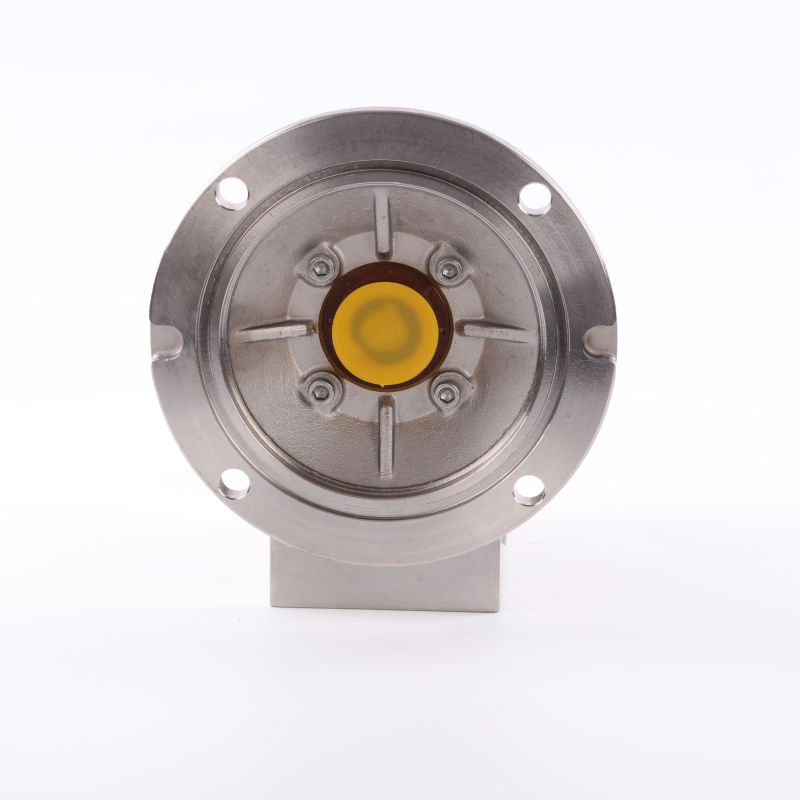

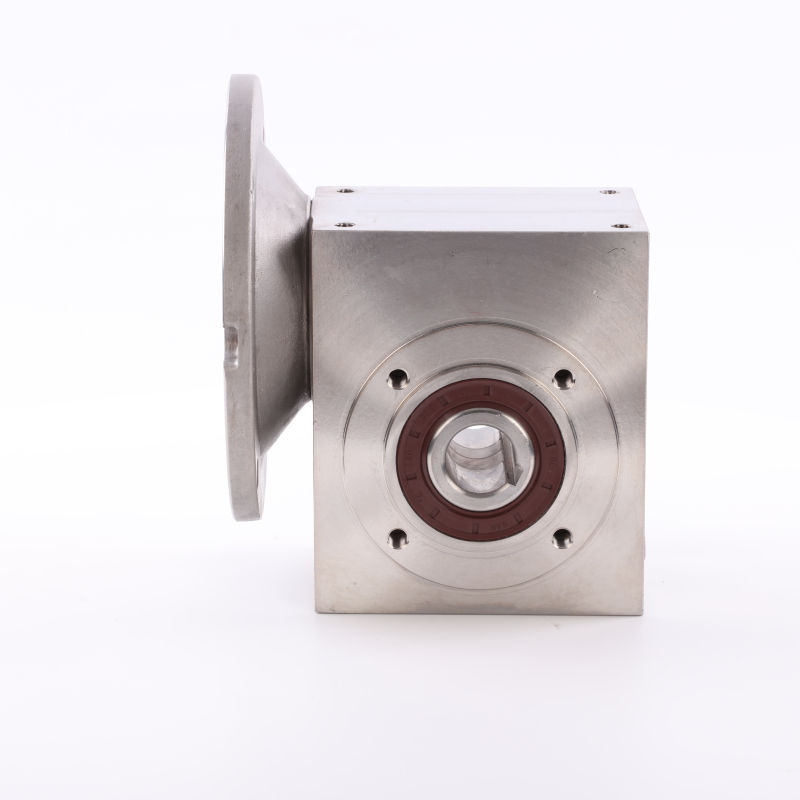

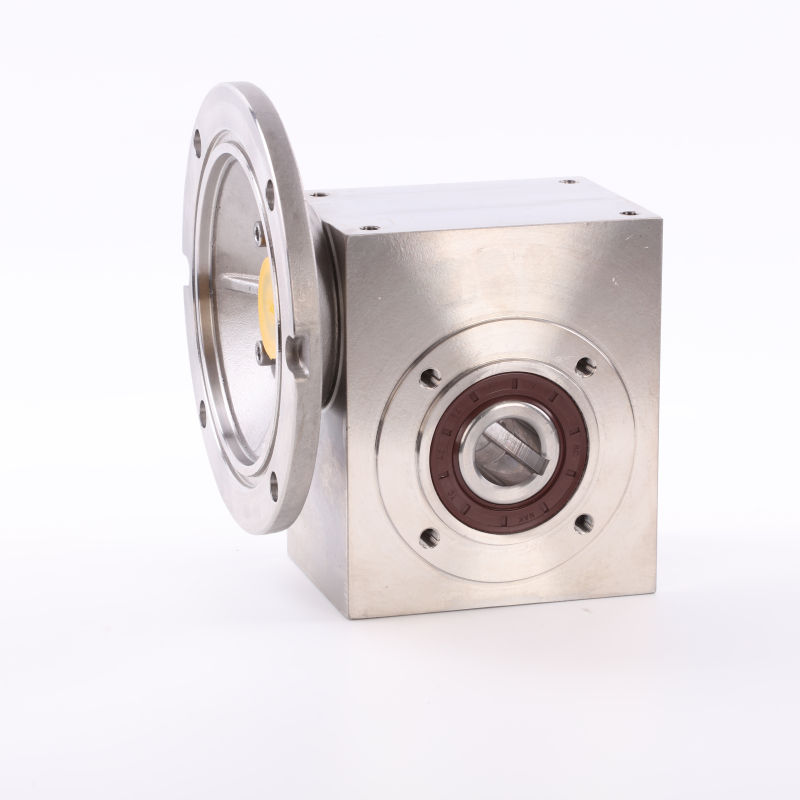

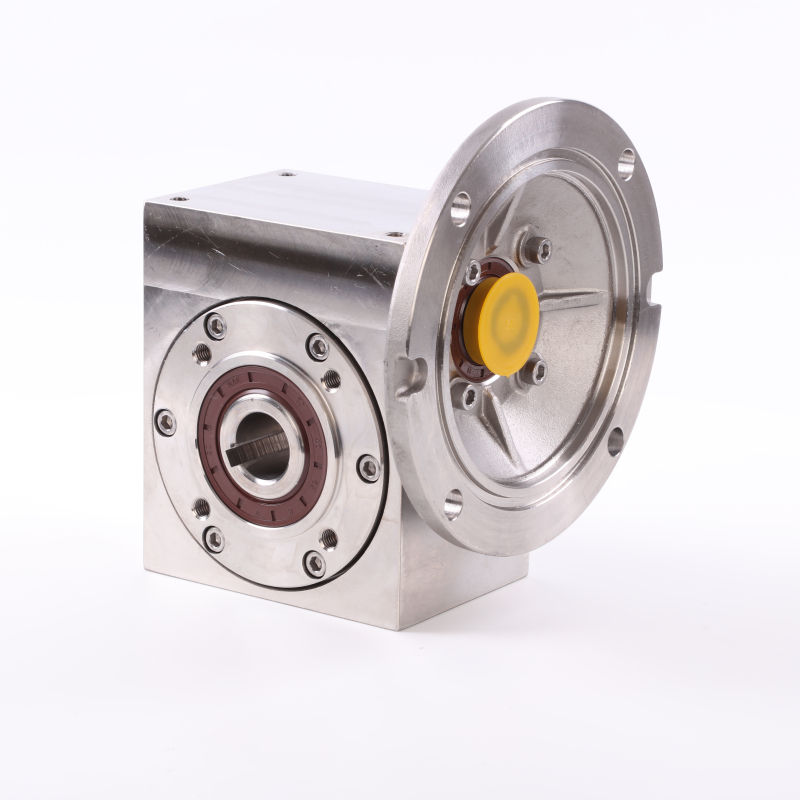

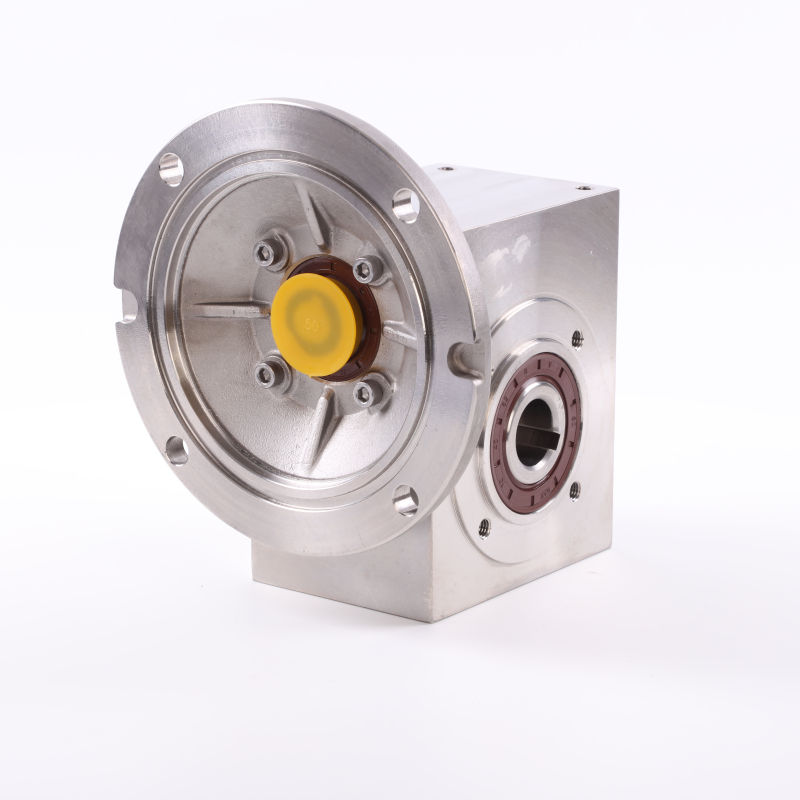

NMRV040:

RV Series Gearbox Manufacturer Reduction Gearbox Reductor


   Type
  Worm Gear Speed Reducer / Gearbox / Reductor

  Model
  NMRV25/30/40/50/63/75/90/110/130/150/185

  Color
  Customized Color

  Packing
  Carton, Honey Comb Carton, Wooden Case with Wooden Pallet

  Usage
  Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.

  Flange
  IEC standard flange or customized dimensions

  Housing Material
  Aluminum&Cast iron

  Size
  11 sizes(WMRV25~WMRV185)

  Power
  0.06~22 KW

  Nominal torque
  ≤2548 N.m

  Ratio
  5~100

  For more models, please click here!

Warranty	3 years
Certification	CE
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Construction works, Energy & Mining
Gearing Arrangement	Worm
Output Torque	1.8-2430N.M
Input Speed	1400RPM
Output Speed	14-186.7RPM
Place of Origin	China
China	Zhejiang
Brand Name	EPG
Color	Customer Request
Mounting Position	Flange Mounted
Application	Mining Plant
Material	12-2 bronse
