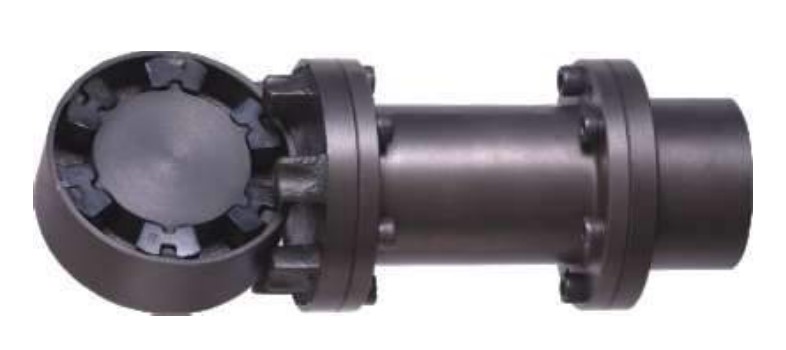

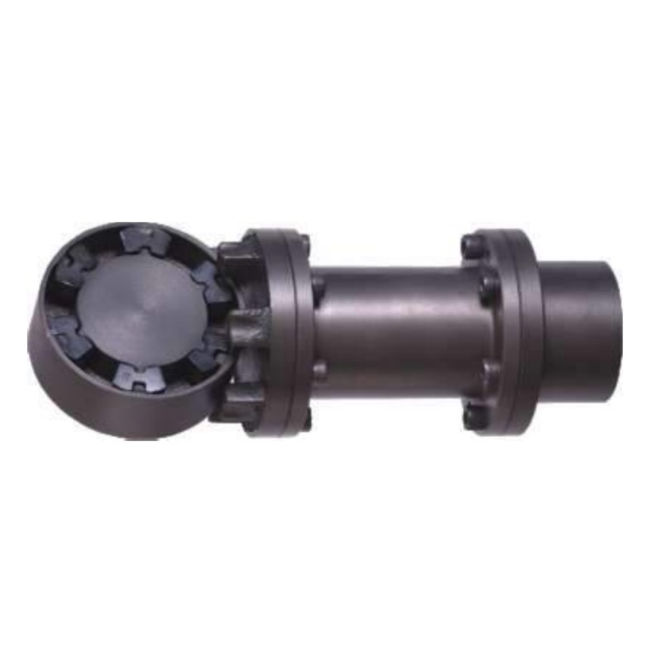

Rubber Cushion Type H Flexible Coupling

Send Inquiry

Product Description

Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misalignment. The coupling provides low axial and bending stiffness while possessing high torsional rigidity. The stretched shim pack design of EPT Metal Flex couplings provides zero backlash. EPT Metal Flex couplings are available up to 13367 Nm torque with single shim pack (UMK) and double shim pack (UMS) series.

Features:

1.Coupling made of cast iron GG 25

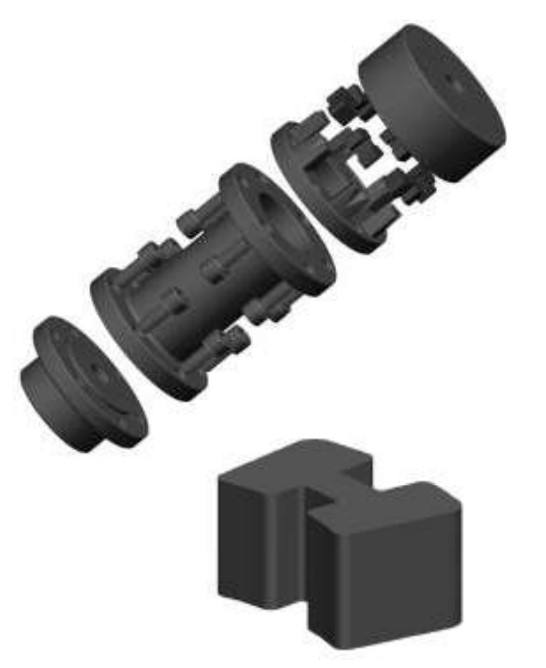

2.Elastomer parts can be replaced without removing the coupling

3.Torsionally flexible, maintenance free, vibration-damping

4.Axial plug-in, fail-safe

5.Finish bore according to SO fit, feather keyway according to DIN 6885 sheet 1-JS9 and P9

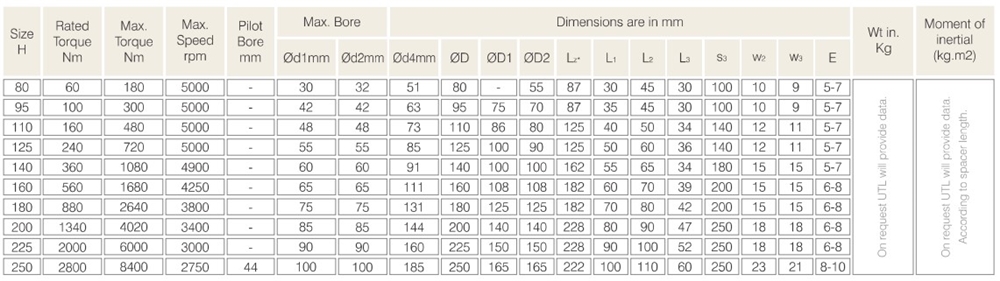

DIMENSIONS & TEVHNICAL DATA

Click here for more details!

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
