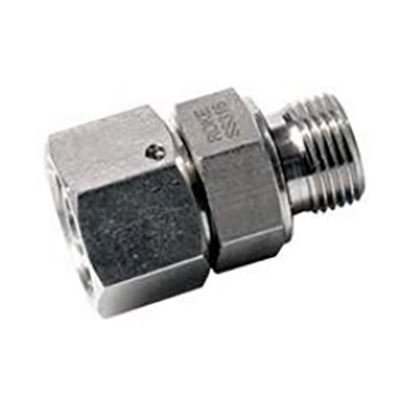

Promotional Various BSPP Pressure Gauge Connector - MAVE Hydraulic Fitting for Hydraulic Cylinder Parts

BSPP (British Standard Pipe Parallel) is a recognized standard for pipe threads used in hydraulic systems. BSPP pressure gauge connectors are fittings designed to connect pressure gauges to hydraulic systems using the British parallel pipe thread. These fittings ensure a secure and leak-free connect......

Send Inquiry

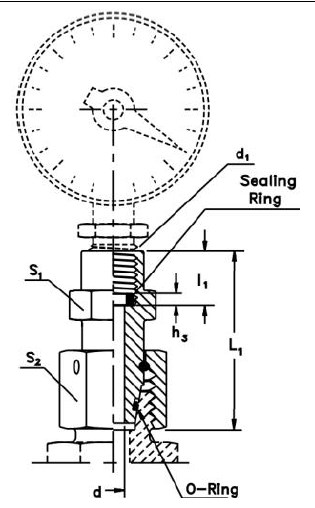

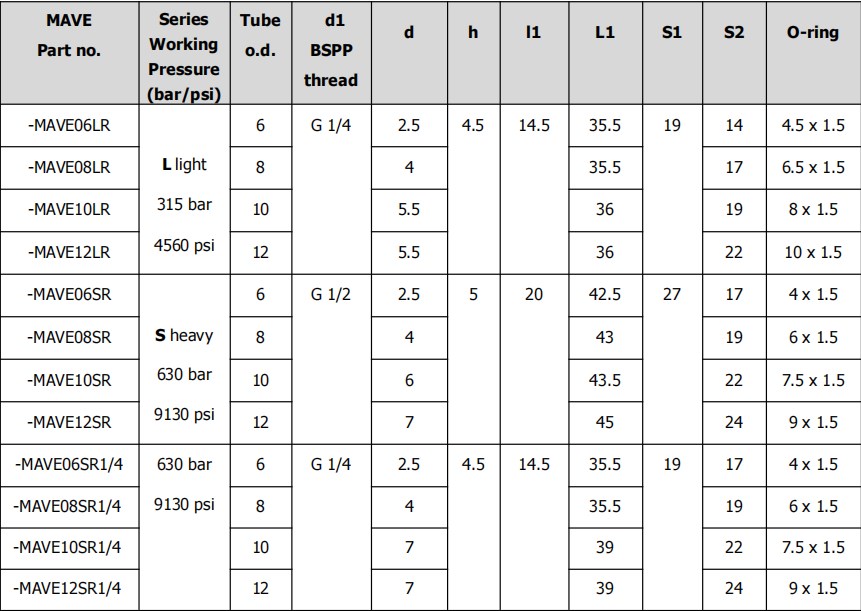

Product Description

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

The difference between British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT) fittings? The main difference between British Standard Pipe Parallel (BSPP) and British Standard Pipe Tapered (BSPT) fittings lies in the design of their threads. Here's a breakdown of each type: 1. British Standard Pipe Parallel (BSPP): - Thread Design: BSPP fittings feature parallel threads. This means that the threads maintain a consistent diameter throughout the fitting's length. - Sealing Method: BSPP fittings rely on sealing through the use of an O-ring or a washer that is placed between the fitting and the mating surface. The sealing occurs by compressing the O-ring or washer against a flat surface. - Common Name: BSPP fittings are often referred to as "parallel fittings" or "G-thread" fittings. - Usage: BSPP fittings are commonly used in applications that require a reliable sealing connection without the need for tapering. They are widely used in hydraulic systems, pneumatic systems, and fluid handling applications. 2. British Standard Pipe Tapered (BSPT): - Thread Design: BSPT fittings feature tapered threads, meaning the diameter of the threads gradually decreases towards the end of the fitting. - Sealing Method: BSPT fittings rely on sealing through the use of thread engagement and the application of a suitable sealant, such as PTFE tape or pipe dope, on the threads. The tapering of the threads helps create a tight seal as the fitting is tightened. - Common Name: BSPT fittings are often referred to as "taper fittings" or "R-thread" fittings. - Usage: BSPT fittings are commonly used in plumbing and pipe applications, particularly in regions that adhere to British standards. They are suitable for applications that involve fluids, gases, and low-pressure systems. It's worth noting that BSPP and BSPT fittings have different thread profiles, and attempting to connect them directly can result in leaks or improper sealing. Adapting fittings or using appropriate adapters is necessary when transitioning between these two types of threads. When working with hydraulic or plumbing systems, it's important to identify the correct fitting type required by the specific application and ensure compatibility with other components in the system. Consulting industry standards, manufacturer guidelines, or seeking professional advice can help in selecting the appropriate fitting type for a given application.
