Professional Qd Bushing Pulley with High Quality

8D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts8D series 8-groove QD bushing pulley is made for D series classic v belt and D belt; They range in diameter from 12.64 inches to 58.64 inches. Depending on the pulley size, they use J, M or N QD (quick disassembly) bushings, which ......
Send Inquiry
Product Description
Professional Qd Bushing Pulley with High Quality

8D Series Cast Iron QD Bushing Sheaves Pulley for "D" Belts

8D series 8-groove QD bushing pulley is made for D series classic v belt and D belt; They range in diameter from 12.64 inches to 58.64 inches. Depending on the pulley size, they use J, M or N QD (quick disassembly) bushings, which we also have in stock. Most of our 8D QD pulleys are made of high strength grade 35 cast iron, phosphate coated and coated with anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

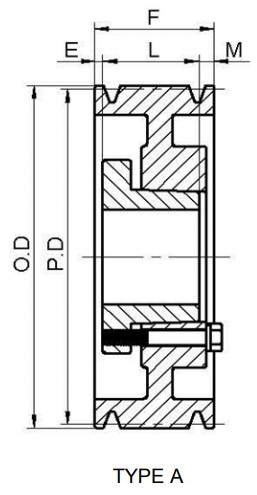

8D QD Sheave Size Chart
Professional Qd Bushing Pulley with High Quality
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Sheave Weight (LBS)
8D120J
J
A
12.0"
12.64"
2-1/8"
11-13/16."
4-5/8"
5-1/16"
140
8D130J
J
A
13.0"
13.64"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
150
8D135J
J
A
13.5"
14.14"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
160
8D140J
J
A
14.0"
14.64"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
170
8D145J
J
A
14.5"
15.14"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
178
8D150J
J
A
15.0"
15.64"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
182
8D155J
J
A
15.5"
16.14"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
190
8D160J
J
A
16.0"
16.64"
2-1/8"
11-13/16"
4-5/8"
5-1/16"
201
8D180M
M
A
18.0"
18.64"
2-11/32"
11-13/16"
6-3/4"
2-23/32"
260
8D200M
M
A
20.0"
20.64"
2-11/32"
11-13/16"
6-3/4"
2-23/32"
270
8D220M
M
A
22.0"
22.64"
11/32"
11-13/16"
6-3/4"
4-23/32"
300
8D270M
M
A
27.0"
27.64"
11/32"
11-13/16"
6-3/4"
4-23/32"
350
8D330M
M
A
33.0"
33.64"
11/32"
11-13/16"
6-3/4"
4-23/32"
450
8D400N
M
A
40.0"
40.64"
3/16"
11-13/16"
8-1/8"
3-1/2"
550
8D480N
M
A
48.0"
48.64"
3/16"
11-13/16"
8-1/8"
3-1/2"
720
8D580N
N
A
58.0"
58.64"
3/16"
11-13/16"
8-1/8"
3-1/2"
900
Relevant supporting D-series and D-series V-belt (1) D series V-belt Classic D-series V-belts have a top width of 1.25 inches, a thickness of 0.75 inches, and an angle of 40 °. In addition, the D V belt is one of the oldest V-belt types in the industry. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality D-series v-belts we provide are manufactured according to ISO 9001 specifications, which are oil and heat resistant and can be directly interchanged with other brands. They are composed of natural rubber compound and polyester rope, and are covered with a mixture of cotton and polyester, with high durability.
(2) D series ribbon V-belt D series v-belts are part of the "classic" series of v-belts because they are one of the oldest styles used and one of the most common styles. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of D-series v-belt is 1-1/4 ".

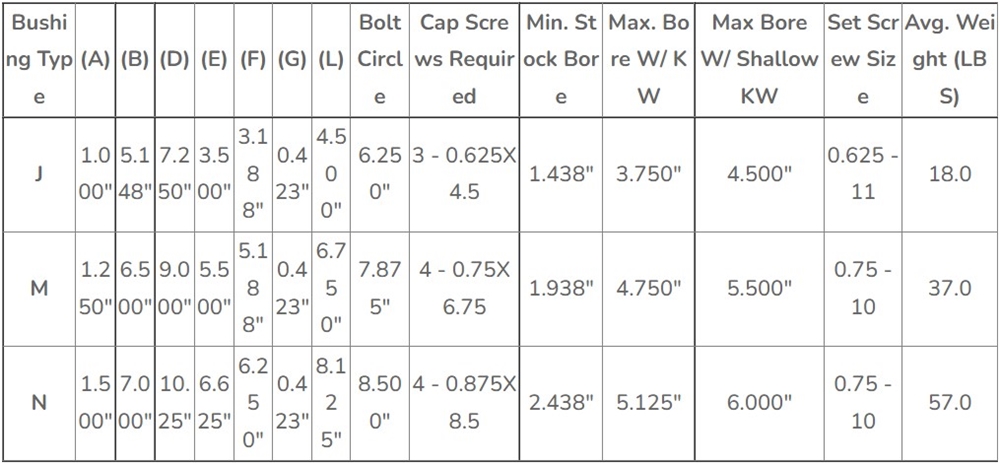

Relevant QD sleeve | quick disconnect sleeve QD bushings are used in various sprockets, pulleys, pulleys and synchronous drives throughout the industrial power transmission and agricultural industries. They are designed for easy installation and unloading; They are also commonly referred to as quick disconnect bushings. The QD bushing facilitates normal installation on the outside of the flange and reverse installation on the inside of the flange, and utilizes a single split that extends over the entire length of the bushing. Our QD bushings can be interchanged with other brands and are made of high-grade steel by precision machining, which is suitable for perfect installation. Advantages of QD casing compared with different types of casing include:; Easy to install/unload, strong grip and excellent strength. We stock all standard size QD bushings and provide custom QD bushings upon request.
Professional Qd Bushing Pulley with High Quality
Precautions for tapered pulley assembly Tapered sleeve pulleys have many application advantages. The 8-degree outer cone is closely connected with the inner cone of the pulley, which can significantly improve the centering accuracy of the transmission components. In addition, it has good universality and interchangeability, and can be used in various occasions. Even if the inner hole and chain groove are damaged during long-term operation, they can only be repaired by replacing the tapered sleeve with a precise specification, thus reducing the subsequent maintenance cost. Precautions for assembly of taper sleeve pulley: (1) The first cleaning before and after the assembly of the conical sleeve pulley must use gasoline to ensure that the parts are clean and dry, and that the mating surface is tight without oil stains and has sufficient friction. (2) Before assembling hexagon socket head bolts, they should be cleaned and dried with gasoline. Do not apply lubricating oil or grease to the bolt or screw hole to ensure that the bolt has sufficient friction and self-locking capacity after tightening.
(3) When the three hexagon socket head bolts are to be installed, they need to be tightened in turn to ensure that the tapered sleeve is subjected to uniform axial force and that the pulley and the tapered sleeve are coaxial. (4) Before installation, check and measure the length of the hexagon socket head bolt for assembly to ensure that the assembly bolt can bear the bottom of the blind hole of the conical sleeve after being tightened, so as to ensure that the conical surface is closely matched, and ensure that the bolt is subject to the reverse thrust of the bottom of the blind hole, resulting in double locking effect, which is the same as the principle of the nut. (5) After the conical sleeve pulley is tightened, check and adjust the relative positions of the driving and driven pulleys through the cable to ensure that the two pulleys are on the same plane and the belt tension is moderate. (6) The pulley cover shall be intact and firmly installed to ensure that the belt is broken or the pulley is loose and withdrawn during operation, thus leading to major safety accidents. (7) After years of long-term operation of mechanical equipment, the condition of inner holes and chain grooves must be checked regularly, which may be damaged. If defects are found, spare parts should be replaced in time.
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Professional Qd Bushing Pulley with High Quality
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Professional Qd Bushing Pulley with High Quality
Professional Qd Bushing Pulley with High Quality
Professional Qd Bushing Pulley with High Quality
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
