Product Description

Product Features

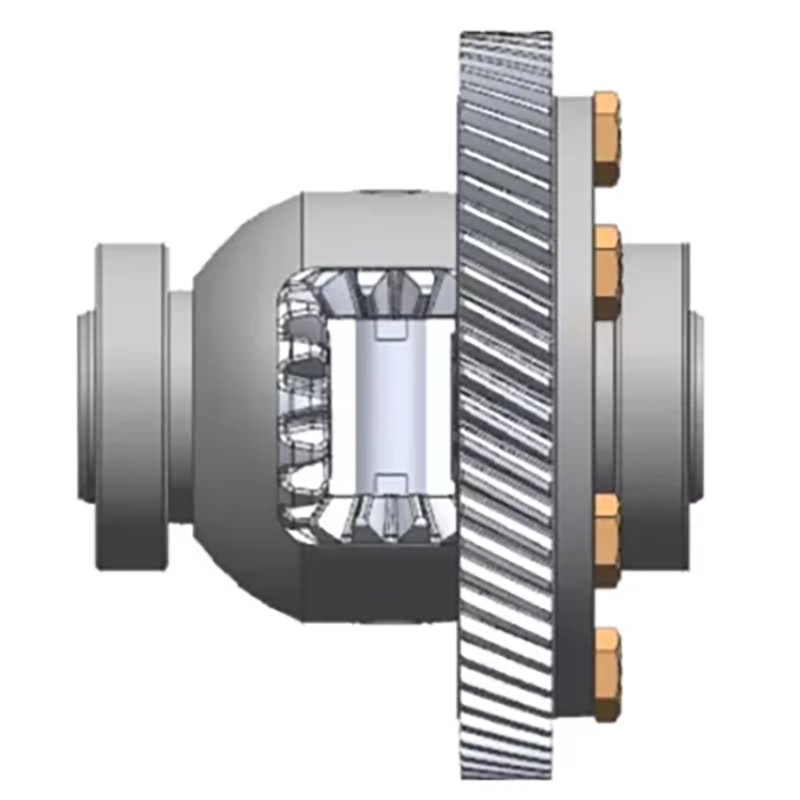

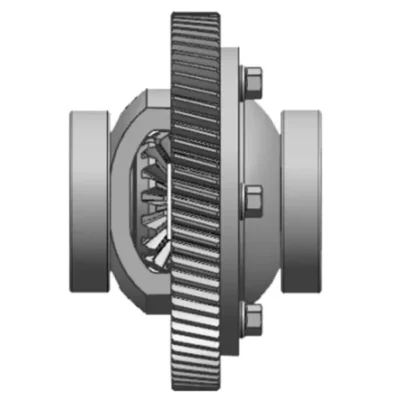

This 1000 front axle gear differential assembly is a compact differential with a simple structure that distributes power between two half shafts through the rotation of planetary gears

Product Performance
Max Input Torque	T max	N.m
Max Input Rotation Rate	n max	r/min
Centre.to-centre Spacing	A	mm
Gear Ratio	U

Input & Output Spline Parameters
Tooth system		Input internal spline	Output end internal spline
modulus	m	4.3137	2
number of teeth	z	14	23
Pressure angle	a	22.5°	30°
the modification coefficient	x	-0.2243/-0.027	-0.2243/-0.027

Over Dimension & Weight
Weight(kg)	5.1434
Length	166
AxleTrack	166
Height	114

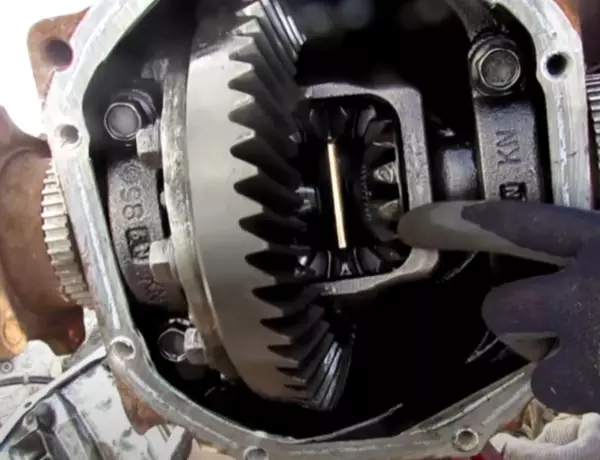

How the differential works

A differential is a mechanical device used to distribute torque, typically used to switch between drive shafts to ensure that two or more wheels can rotate at different speeds. The working principle of a differential is based on the relative motion between its internal gears and shafts. How the differential works A differential typically consists of a central main differential and one or more sub differentials. The central main differential is usually a metal casing fixed to the frame or engine bracket, which contains two planetary gears and a worm gear. These two planetary gears rotate in opposite directions and are responsible for transmitting torque from the gearbox to the drive shaft. The rotation of a worm gear is the same as that of a planetary gear, but it can "grab" the planetary gears and cause them to rotate together. When the vehicle turns or changes in speed, the relative motion between the worm gear and planetary gears can cause the wheels to rotate at different speeds, thereby achieving smooth turning and driving of the vehicle. The differential is usually located between the drive shafts and is used to distribute torque to two or more wheels. A differential is usually composed of two gears and two worm gears, responsible for transmitting torque from the central main differential to the differential. In a differential, two gears and two worm gears are paired and can mesh or separate with each other to control the speed difference of the wheels. When the vehicle accelerates or decelerates, the differential can automatically adjust the meshing or separation between the gears and worm gears as needed to ensure that the wheels rotate at the optimal speed, thereby improving the performance and stability of the vehicle.

For more details, please click here to contact us!

Certificates and Honors

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
