Multifunctional Heavy-duty Construction Excavator Mining Crane Slew Ring Drive Gearbox Slewing Bearing

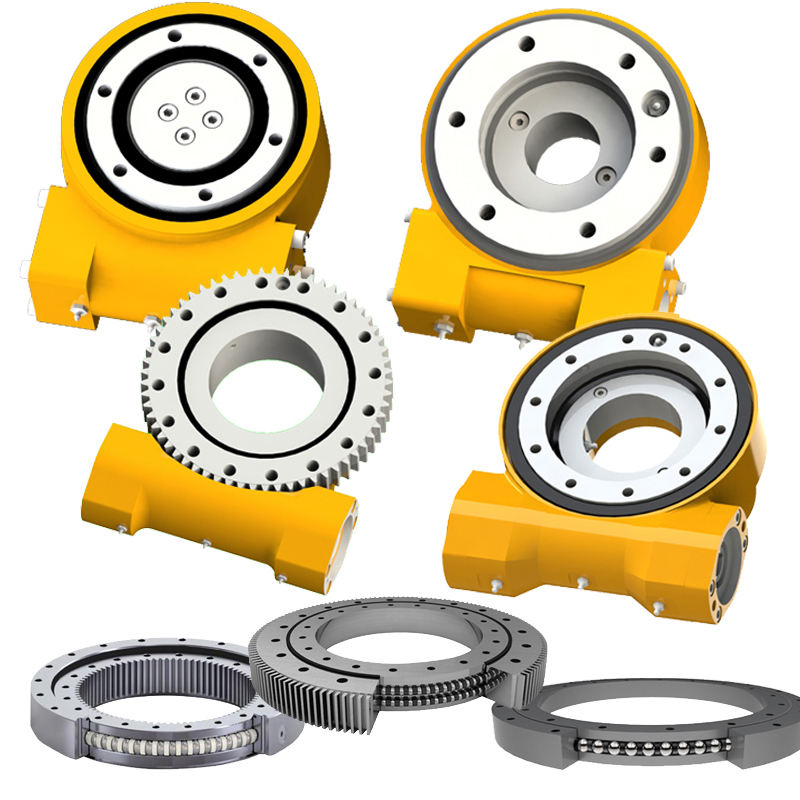

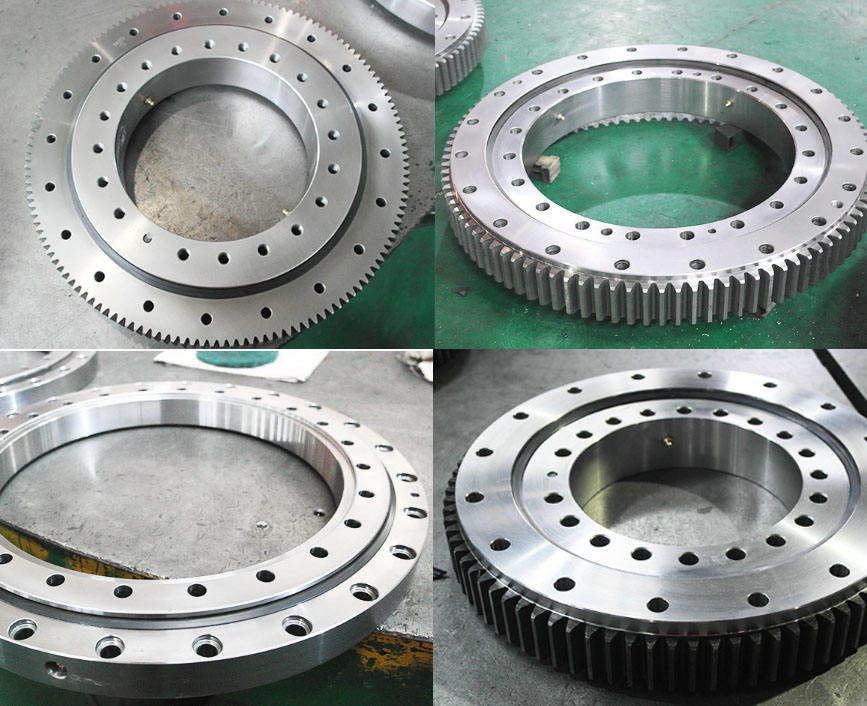

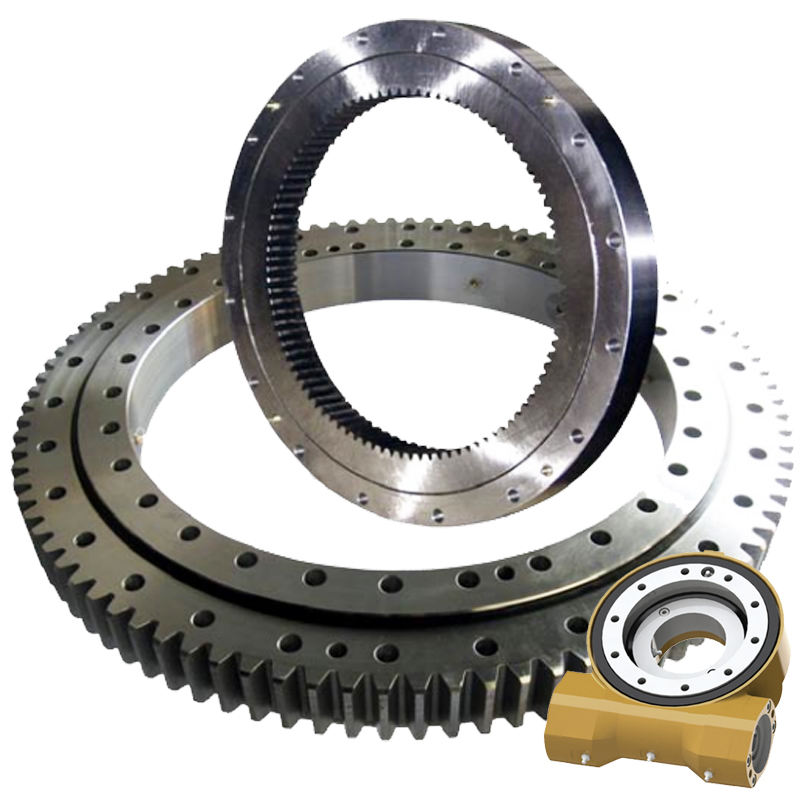

Slewing bearingOur Slewing Bearings have several series such as Single Row Ball Series, Double Row Ball Series, Three Row Roller Series, Single Row Cross Roller Series, Light Type Series and Flange Type Series. Our product sizes range from 200mm-4,000mm with standard and non-standard models.Our prod......
Our Slewing Bearings have several series such as Single Row Ball Series, Double Row Ball Series, Three Row Roller Series, Single Row Cross Roller Series, Light Type Series and Flange Type Series. Our product sizes range from 200mm-4,000mm with standard and non-standard models. Our products are mainly used in the Excavators, Mobile Cranes, Tower Cranes, and also widely used in the Construction Machinery, Light Industry Machinery, Metallurgical Mining Machinery, Environmental Protection Machinery, Petrochemical Machinery, Engineering Vehicles, Ship Port Machinery and more gradually.

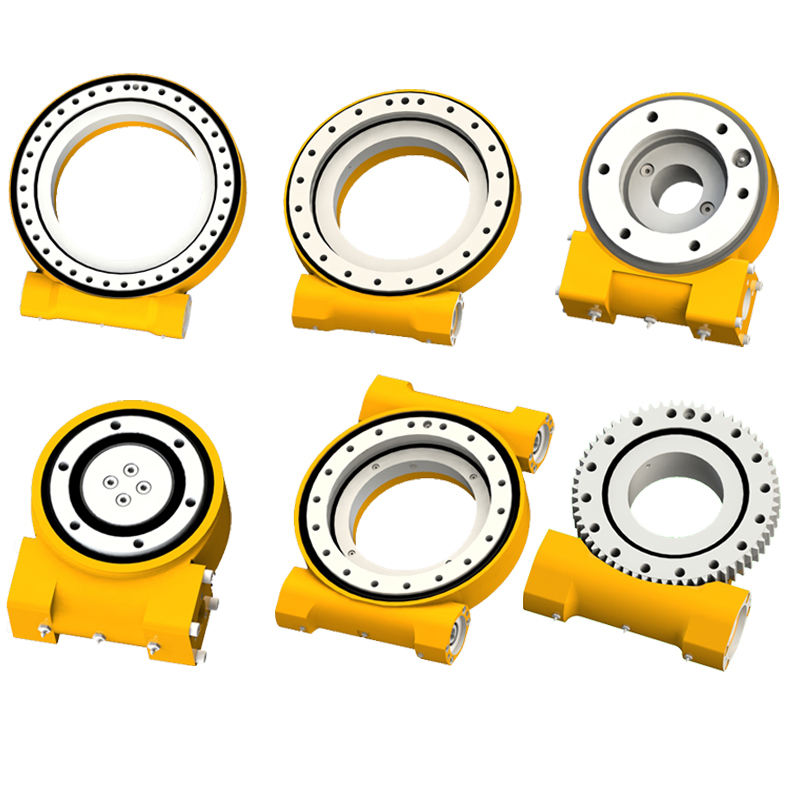

Slewing Drive
The CMN swing drive is a gearbox designed to handle radial or axial loads with high rotational torque. In addition, the slewing bearing located in the center of the drive enables it to withstand high cantilever or torque loads. Rotary drive is the offspring of "worm" screw, which is widely used in engineering machinery, manufacturing, equipment and many other applications requiring strength and precision.
The physical characteristics of slewing drive make it a universal solution for many applications. In operation, the axial motion of the rotary drive or the motion around its axis interacts to generate radial torque. This is achieved by engaging the groove of the horizontal screw with the tooth of the vertical gear. During rotation, the axial movement of the worm gear transmits the amplified torque to the radial gear. The number of threads on the horizontal screw and the number of interacting gears will determine the set speed ratio.
CNC Vertical Lathe (4 meter)
Hobbing Machine (4 meter)
CNC High Speed Cutting teeth machine
CNC Milling Machine(1.6 meter)
CNC Cutting-teeth Machine(1.6 meter)
CNC Raceway Grinding Machine
Tempering Furnace
CNC Gear Quenching
Raceway Quenching
The Whole Teeth Quenching
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:Gear ratios/Precision/Weight/Output/Tilting moment/Torque/Dynamic and static axial/Radial dynamic

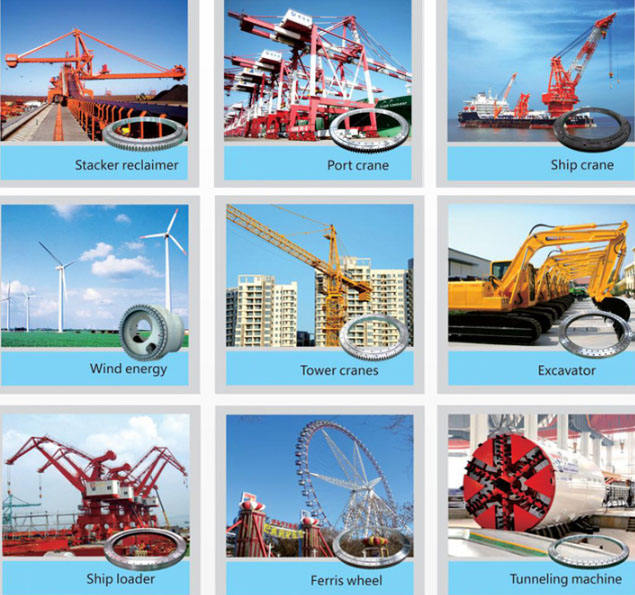

Wind Power
Ladle Turret
Ferris Wheel
Truck Crane
Port Crane
Excavator
Tower Crane
Filling Machine
Sea Crane
Ship Crane
Stacker and Reclaimer
Shield Machine
CMN group is a slewing ring and slewing drive manufacturer integrating R&D, design and production. The company has always been committed to providing customers at home and abroad with constant and stable turnaround, relatively perfect service, meticulous and rigorous technical support, so that products and services can reach a higher level.
Single row row slewing rings (01 series, HS series, Q series), double row row slewing rings (02 series), three row roller slewing rings (13 series), single row cross roller slewing rings (11 series), double row ball slewing rings (07 series) and light series slewing rings can be customized and developed according to the national machinery industry standard JB/T2300-2011. The slewing ring product models cover 150mm-4500mm standard and non-standard specifications.
Open type slewing drive (S series), fence type slewing drive (SE series), double worm slewing drive (S/SE-2 series, vertical type slewing drive (series) and double shaft type slewing drive (SD series), and slewing drive products with specifications and structures can be designed according to customers' technical requirements. Rotary drive products are widely used in engineering machinery, construction machinery, metallurgical and mining machinery, ship and port machinery, wind power generation and other industries.
On the premise of mass customization and quantity guarantee, we support customization. Please be sure to contact the customer service provider
