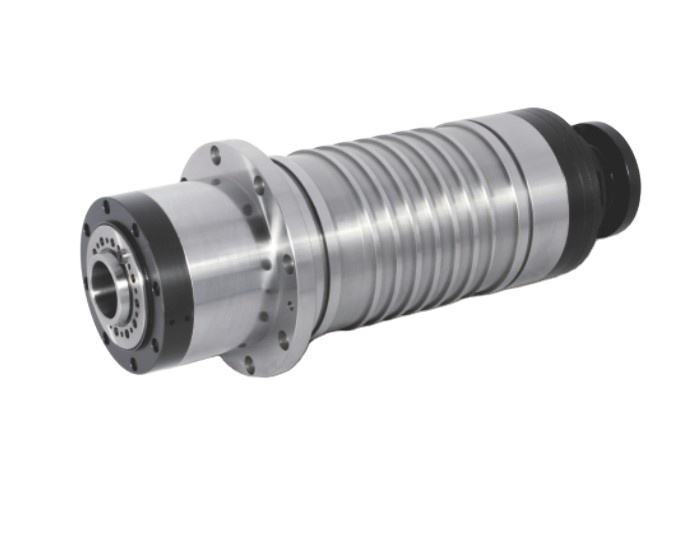

Multifunctional for Lathe 3kw Spindle Motor with High Quality
It can be specially designed according to the needs of different users to meet the requirements of low-speed power turning and high-speed finish machining. It is equipped with a code disk and encoder, and can accurately control the spindle operation through a servo device to achieve quasi stop, emer......
It can be specially designed according to the needs of different users to meet the requirements of low-speed power turning and high-speed finish machining. It is equipped with a code disk and encoder, and can accurately control the spindle operation through a servo device to achieve quasi stop, emergency stop and other functions.

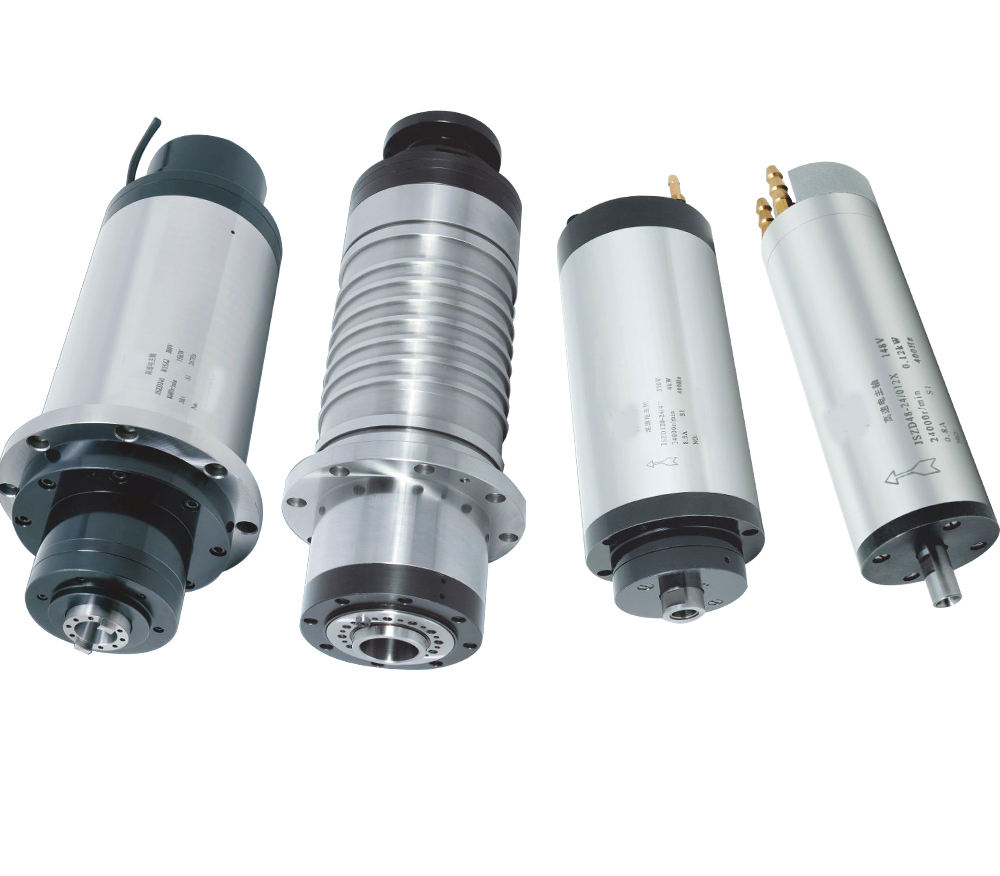

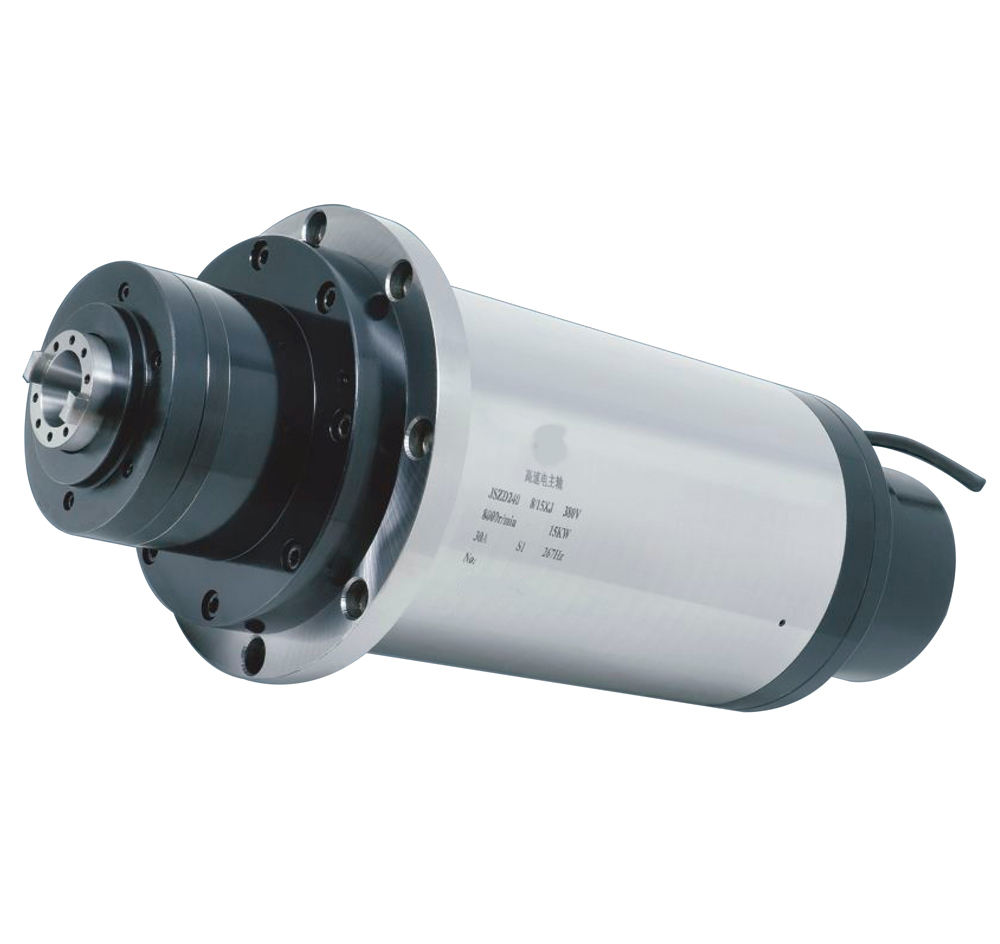

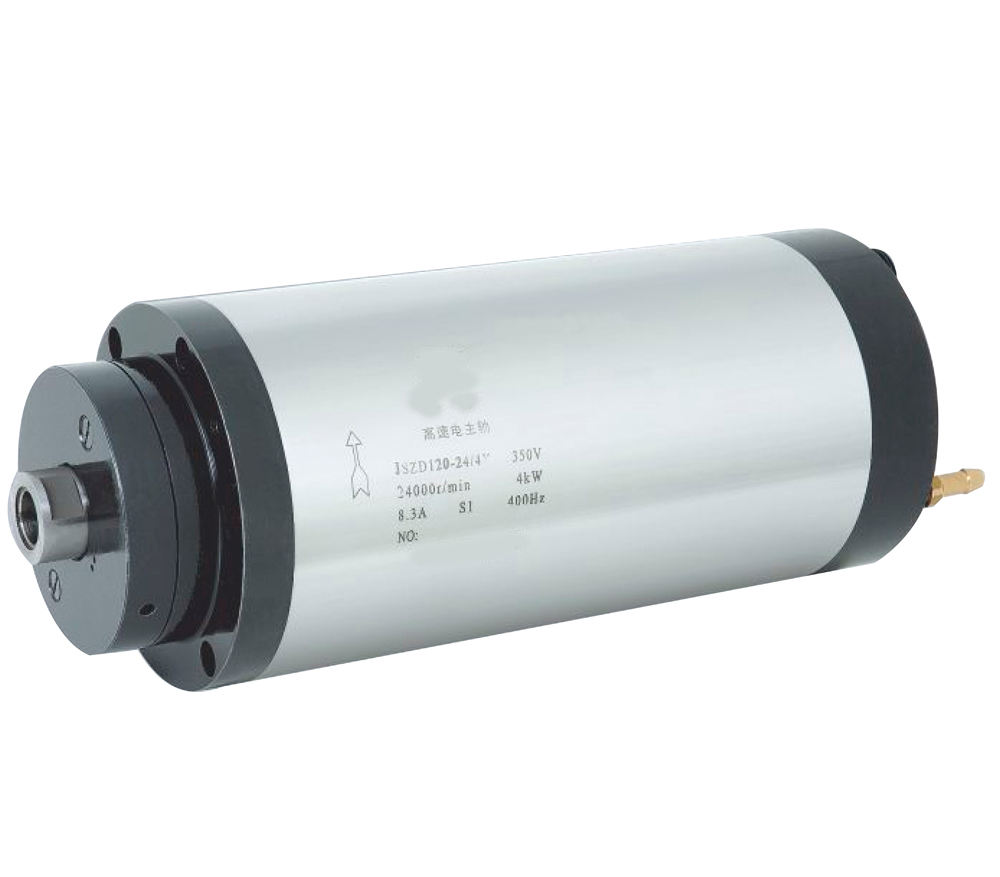

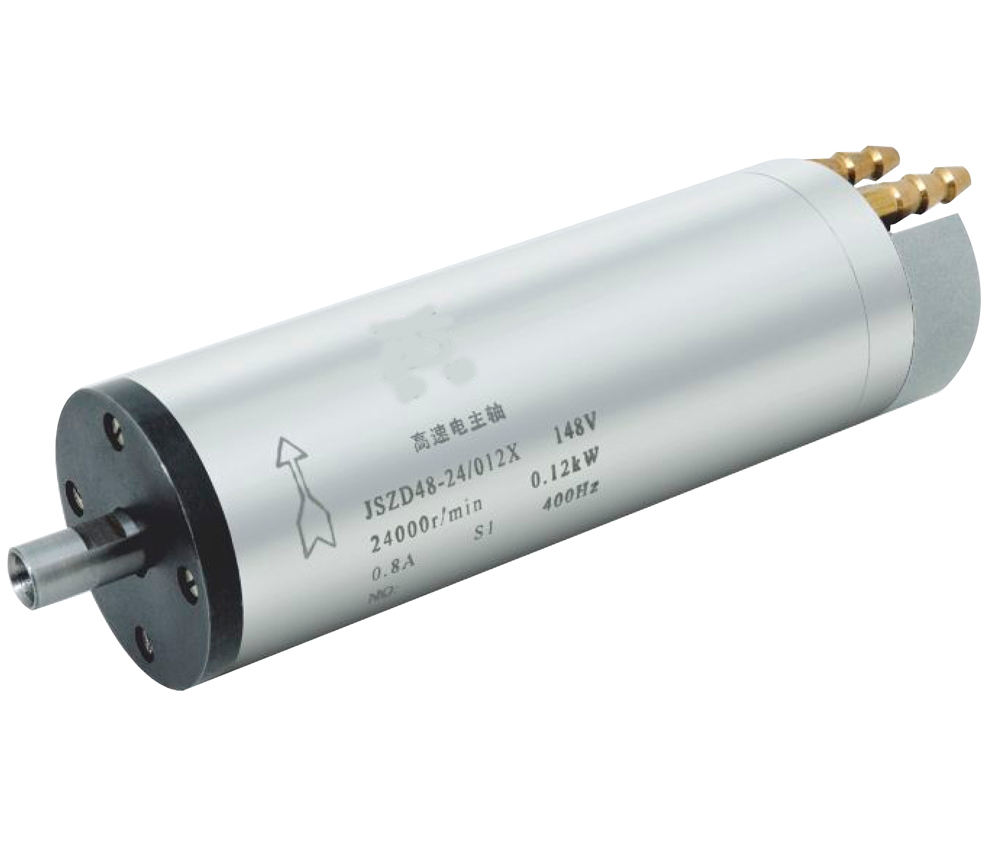

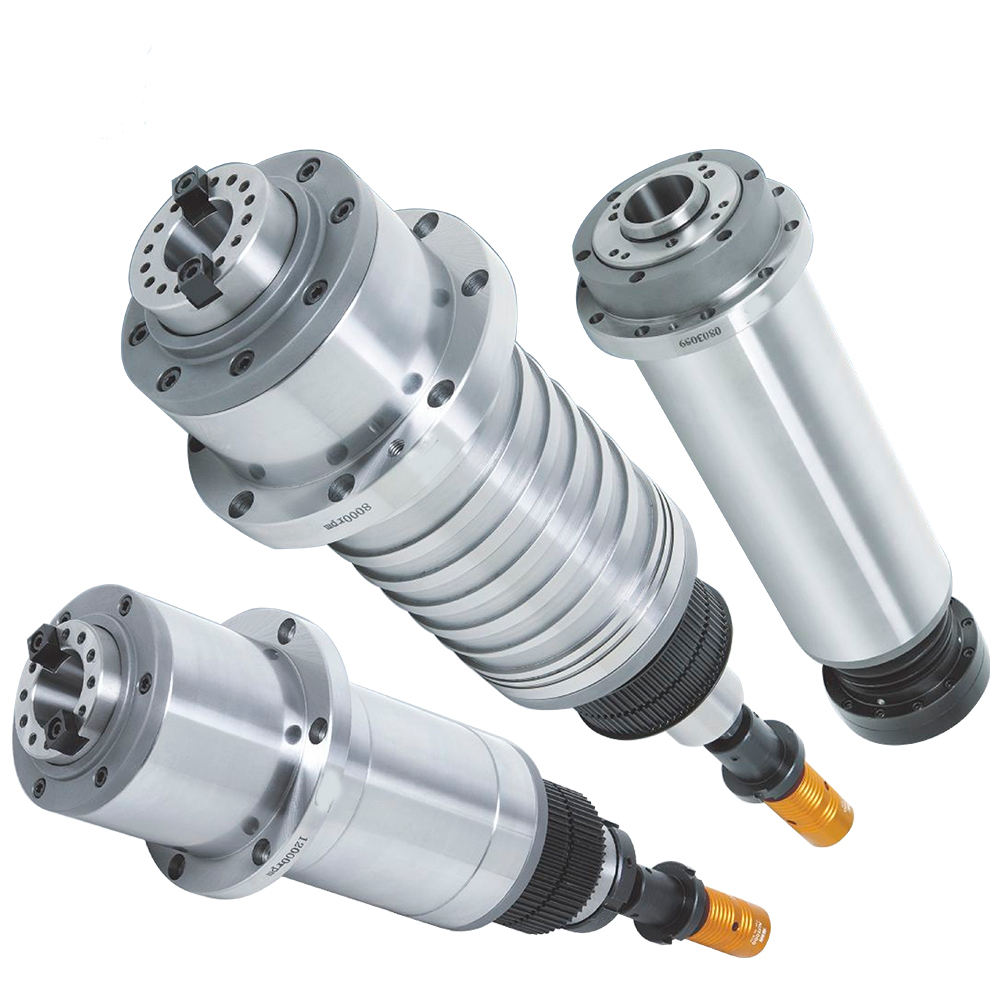

Motor spindle series
The main products can be divided to 5 styte with more than 10 series , the speed from 600r / min To 1 10 000 / min . the powerfrom0.05KW to 40KW . the spindle bearing according to different speed using high precsion and speed bearing , or ceramicbearing , or maglev bearing . The cooling way using oil , oil fog , oil gas , We also can design it for youn requirement .

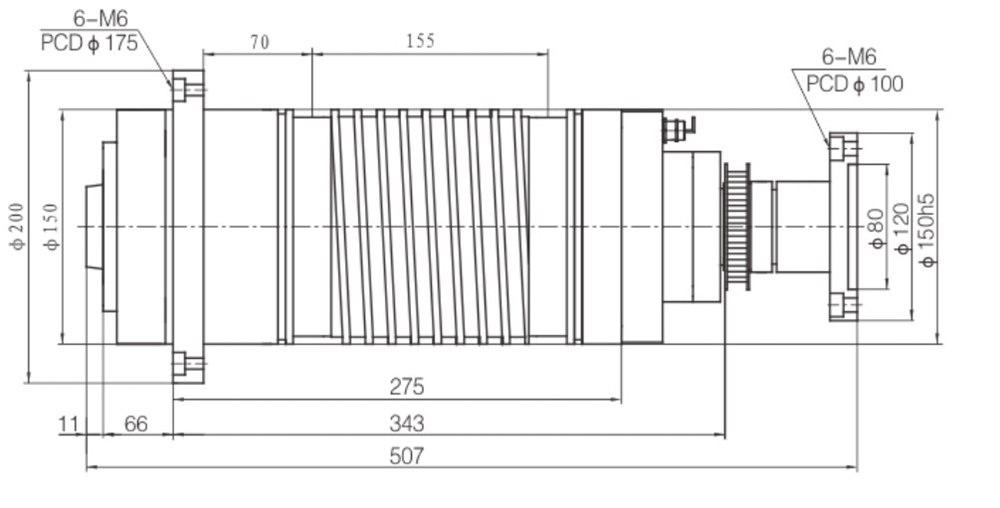

Dimensions
Advantages of electric spindle
* The spindle and motor are integrated, with compact structure, simple installation, convenience and space saving;
* No intermediate transmission link, high efficiency, low vibration, low noise, stable movement, long service life of main shaft bearing at the same speed;
* Easy to achieve high speed, high accuracy and high dynamic and static stability ;
* Using modern control technology and motor optimization design, it can meet the requirements of different working conditions and loads.
For more details, please click here to contact us!

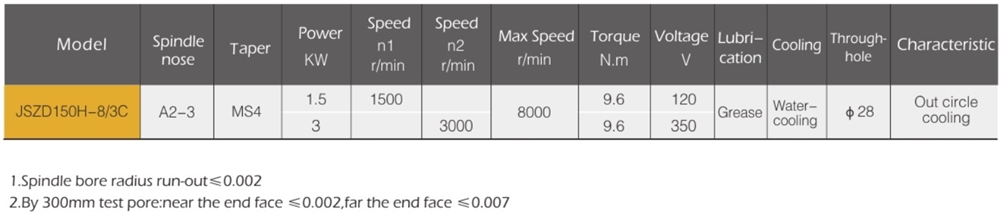

Speed
8000rpm
Voltage
350V
Power
3kw
Warranty
Bearings for half year,other parts for one year
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
