Product Description

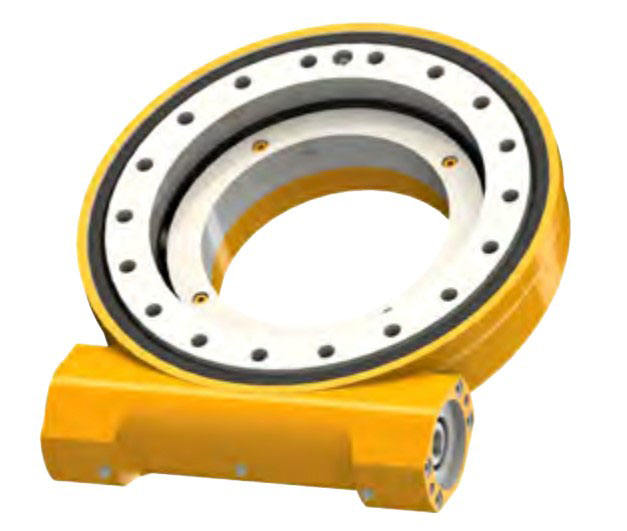

Professional Cheap FGA Series FGA5 Slewing Drive Gearbox For Aerial Lifts

Slewing Drive Gearbox For Mining Applications When it comes to choosing a slewing drive, safety is an important factor. Some types have built-in safety features to prevent damage to the machine. These are usually mandatory in certain applications. These safety features include a locking characteristic and an add-on brake. Add-on brakes can be permanent or intermittent. The latter reduces system efficiency. Raydafon FGA series slewing drive gearboxes feature an enclosed housing and case seal for protection against dust, water, and other contaminants. Their low-maintenance design, IP55-rated motor, and CSA-certified housing reduce labor costs in the field. The slewing drive also has a high-strength, CE and REACH-certified drive. Slewing drives come in a variety of capacities and sizes, and can be configured with dual axes for increased strength and speed. They also have hourglass gear profiles for improved gear functionality. Slewing drives with hourglass gearing use multiple gear teeth at the same time, making them durable, stronger, and more efficient. Slewing drives are especially useful in metal cutting and forming applications, where complete precision is required in the position of workpieces. These units have low backlash and deliver high accuracy results. FGA Series Raydafon's FGA Series slewing drive gears feature an IP55 rated, enclosed case seal and high-torque design that is ideal for maximum torque applications. These rugged and reliable gearboxes are also designed to provide low maintenance and a high level of component protection. These drive gears are designed specifically for use in mining equipment, solar trackers and satellite dishes. FGA Series slewing drive gears are available in a variety of sizes to fit your needs. Whether you need a mining gearbox for small or large machines, a slewing drive gearbox is the perfect solution. These units are available in both solid hollow and planetary designs. In addition, they are available with a wide range of mounting options and are ideal for heavy-duty applications. Raydafon's single axis slew drive gears are equipped with multiple innovations, including dual output torque tube interfaces, integrated mounting flanges for direct post attachment, and patented hourglass worm technology. They are available in four sizes and have a range of torques from 15kN to 39kN-m. FGA Series Slewing drives are ideal for applications requiring high torque at reduced speeds. These gearboxes also offer zero backlash and smooth component operation. They are also suitable for a variety of fields, from mining to wind turbines. They are also available with enclosures that protect the components from environmental factors. Raydafon's single axis slewing drive gearboxes offer a number of innovations, including integrated mounting flanges for direct post mounting. These gearboxes are also CE-, REACH and ISO-certified. Their design eliminates the need for inline gear reduction and features a single-piece design. FGA series slew drives are powered by patented hourglass worm technology and offer numerous advantages. They deliver up to 220kN-m holding torque, 200N-m output torque, and 500N-m tilting torque. In addition, they offer gearbox reduction ratios of up to 156600:1. They can also be installed horizontally or vertically. The FGA Series Slewing drive gearbox is an essential piece of equipment for mining and construction industries. It is lightweight, can carry high loads, and features shock-load resistance. It also has a low profile, which makes it ideal for confined spaces and tighter tolerances. They can be supplied in a variety of sizes and reduction ratios. These units can be manufactured in five-stage or six-stage reductions and are used in stacker-reclaimer machines. Slewing drives are available in single, double, and hourglass designs. They are available in electric, pneumatic, and hydraulic styles. Single, double, and hourglass designs can be incorporated into truck-mounted cranes, rotating forklifts, and cable winders. Hydraulic and pneumatic machinery can also benefit from the use of slew drives.

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
600 N.M	2800 N.M	5000 N.M	45 KN	22 KN	62:1	≤0.20°	16kg
443 LBF.FT	2066 LBF.FT	3690 LBF.FT	10116 LBF	4945 LBF	62:1	≤0.20°	16kg

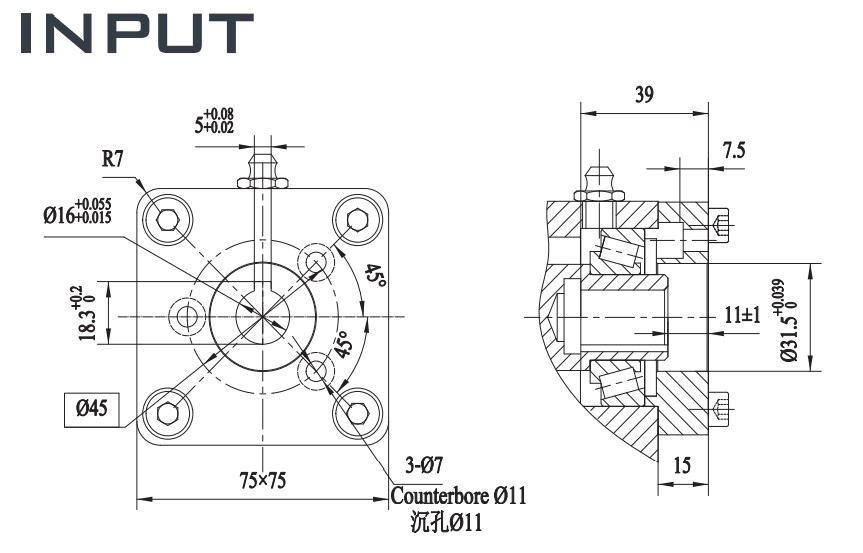

Front View

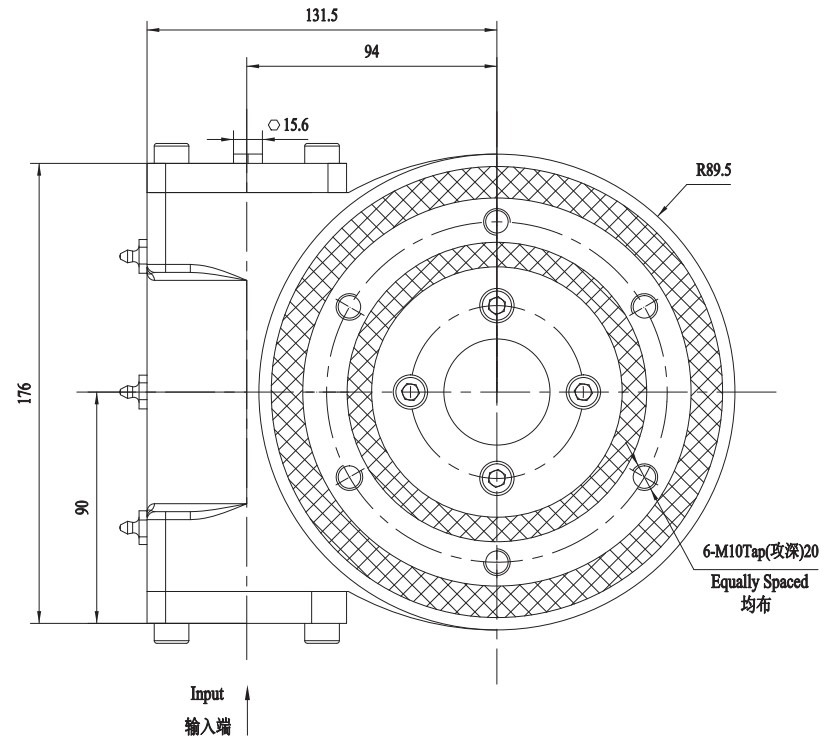

Top View

Note: customized design can be carried out according to customer requirements

Application

hzpt slewing drive is a gearbox designed to handle radial or axial loads using high rotational torque. In addition, the slewing ring bearing, at the heart of the drive, enables it to withstand high overhung or moment loads. A descendant of the “worm” screw, slewing drives are present in construction machinery, manufacturing, equipment and many other applications that require strength and precision.
The physics of the slew drive makes it a versatile solution for many applications. In operation, the slew drive’s axial movement, or motion around its axis, interacts to create radial torque. The action occurs by meshing the grooves of the horizontal screw with the teeth of a perpendicular gear. While turning, the worm gear’s axial movement transfers magnified torque force to the radial gear. The number of threads on the horizontal screw and the number of gears that interact will determine the speed ratio of the setup.
Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.
An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by
contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.
Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.
Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun’s movements in perfect time to generate maximum energy output.
Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.
Robust, smooth and consistent, slew drives have a distinct place in manufacturing, construction and many other venues. Based on a centuries-old engineering idea, slew drive-operated equipment can be simple or complex, depending upon the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass design depends on the application. Other features such as brakes or self-locking features and open or closed chassis are among many options.
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:
Gear ratios
Precision
Weight
Output
Tilting moment
Torque
Dynamic and static axial
Radial dynamic

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
