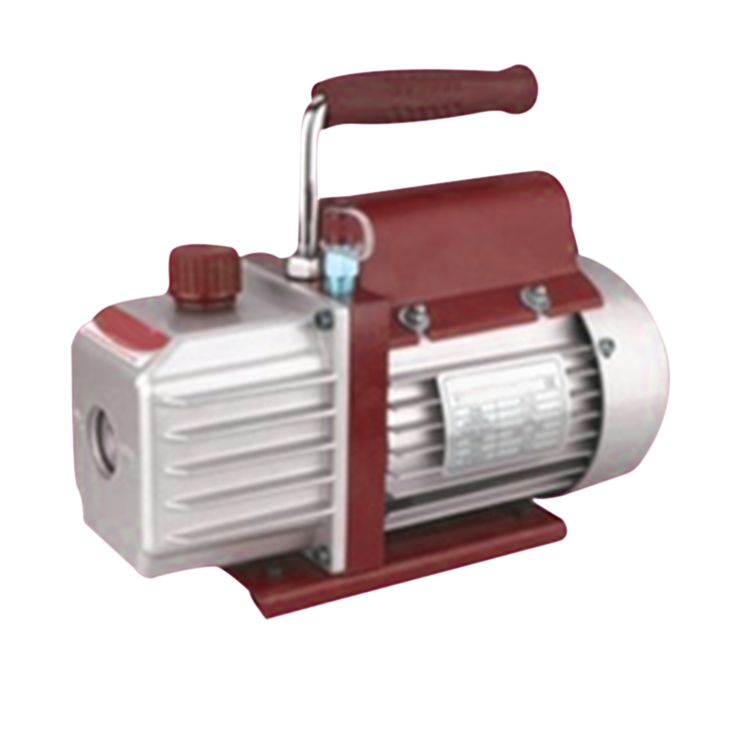

Multifunctional Electric Vehicle for Packing Vane Double Stage Vacuum Pump with Great Price

Standard Features * * Aluminum alloy casing: Alloy casing has high heat dissipation to keep the motor and pump cool, while being light weight and efficient * Two-Stage Rotary Vane Deep Vacuum Pump * Direct drive motor allows for easy start up and is maintenance free * Direct coupling ......

Send Inquiry

Product Description

Standard Features
* * Aluminum alloy casing: Alloy casing has high heat dissipation to keep the motor and pump cool, while being light weight and
efficient
* Two-Stage Rotary Vane Deep Vacuum Pump
* Direct drive motor allows for easy start up and is maintenance free
* Direct coupling between the motor and pump results in quiet running and good performance
* Force fed lubrication provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump
operation. Cleaner oil reduces ware and break downs.
* Oil drain valve positioned at bottom of oil reservoir.
* Ballast valve on top of the pump
* Great tool for: system evacuation (refrigeration or air conditioning), printing, medical, vacuum packing, hot forming
plastics and other requirements where a high quality pump may be required

Vacuum pump VE215

* Nominal Capacity: 2.6 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 1/4 HP
* Voltage: 220 V 50 Hz
* Oil volume: 180 ml
* Length x width x height: 308x124x228 mm
* Net weight: 7.5 kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13104

Vacuum pump VE245

* Nominal Capacity: 7.6 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 1/2 HP
* Voltage: 220 V 50 Hz
* Oil volume: 340 ml
* Length x width x height: 340x138x244 mm
* Net weight: 11.4kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13105

Vacuum pump VE260

* Nominal Capacity: 10.2 m3/h
* Final vacuum : <0,005 mbar
* Motor Power: 3/4HP
* Voltage: 220 V 50 Hz
* Oil volume: 600 ml
* Length x width x height: 395x145x260 mm
* Net weight: 16.5 kg
* Vacuum-Flange: 3/8"/25KF
* Article-Number 1 ph: Z13106

If you need to customize, please click here to contact us.
