MS02,MS05,MS08,MS11,MS18,MS25,MS35,MS50,MS83 for Poclain MS hydraulic piston motor

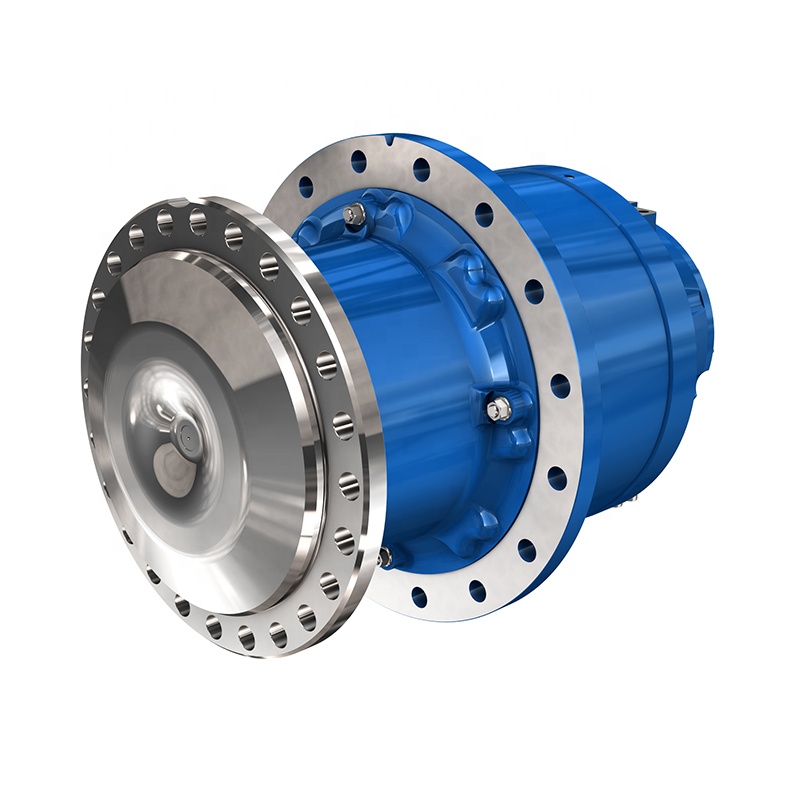

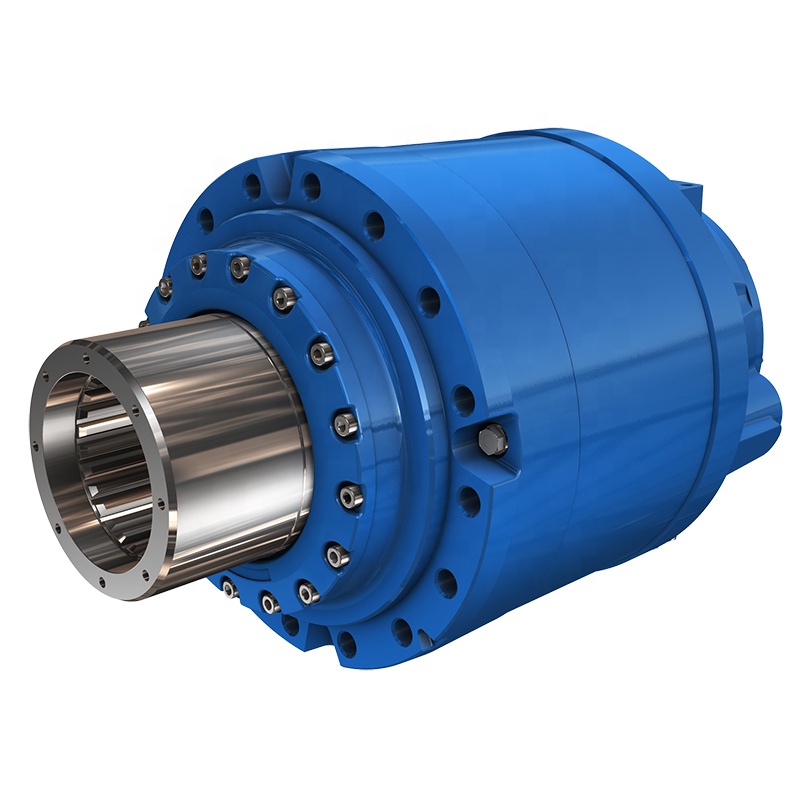

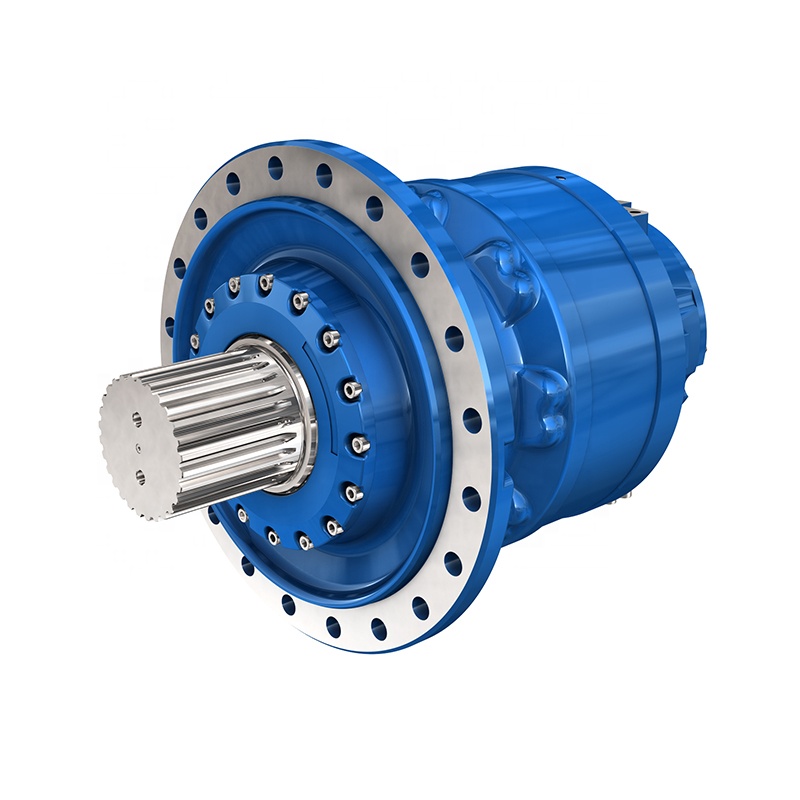

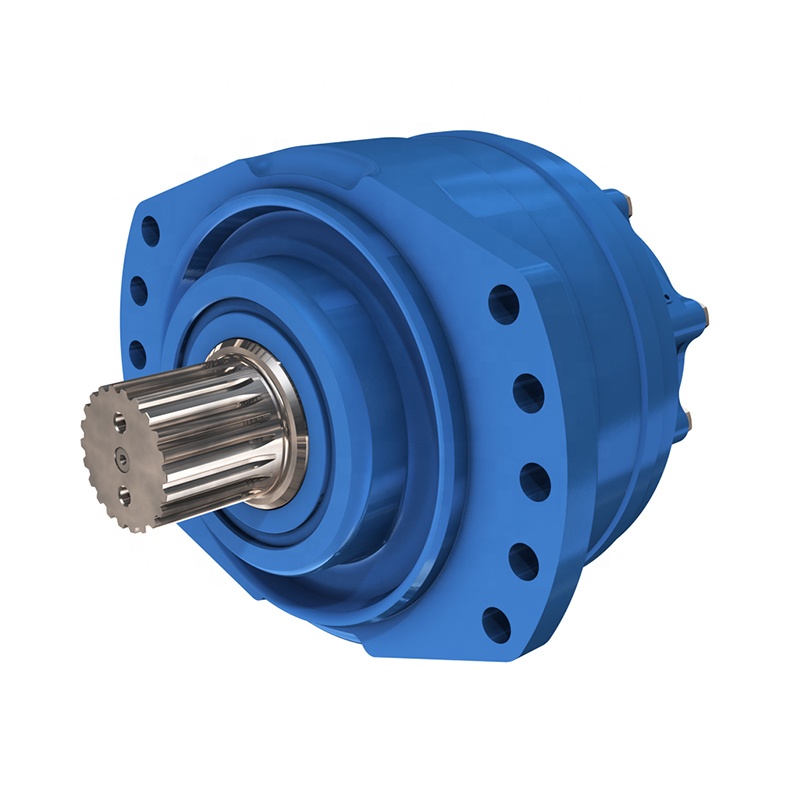

MS series Poclain hydraulic piston motor
Incurve multicam radial piston type
Low speed,high torque,high pressure
Modular design,easy combine with various machines
| Model | displacement (ml/rpm) | rated pressure | maximum pressure | rated pitch of strand(N.m) | speed range | maximum power(kw) | |
| whole displacement | semi-displacement | (MPa) | (MPa) | (whole displacement) | (rpm) | (whole displacement) | |
| MS02 | 213 | 25 | 40 | 796 | 0-310 | 16 | |
| MS05 | 468 | 234 | 25 | 40 | 1749 | 0-200 | 25 |
| MS08 | 780 | 390 | 25 | 40 | 2914 | 0-170 | 36 |
| MS11 | 1048 | 524 | 25 | 40 | 3916 | 0-160 | 44 |
| MS18 | 1747 | 873 | 25 | 40 | 6528 | 0-150 | 62 |
| MS25 | 2498 | 1249 | 25 | 40 | 9334 | 0-130 | 80 |
| MS35 | 3494 | 1747 | 25 | 40 | 13055 | 0-100 | 97 |
| MS50 | 4996 | 2498 | 25 | 40 | 18667 | 0-100 | 123 |
| MS83 | 8328 | 4164 | 25 | 40 | 31098 | 0-80 | 176 |
| MS125 | 12500 | 6250 | 25 | 40 | 19875 | 0-50 | 240 |
For more model number , please contact our company.
