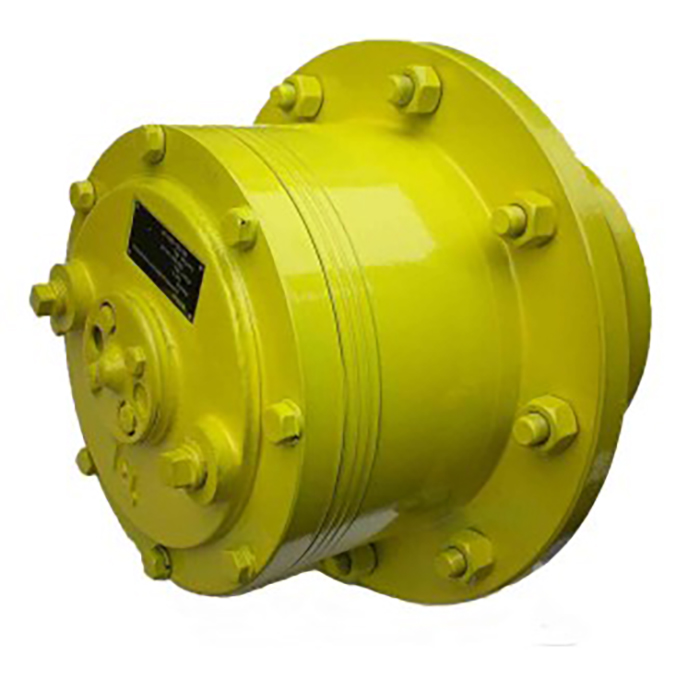

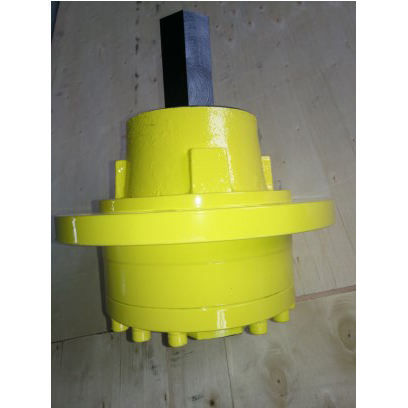

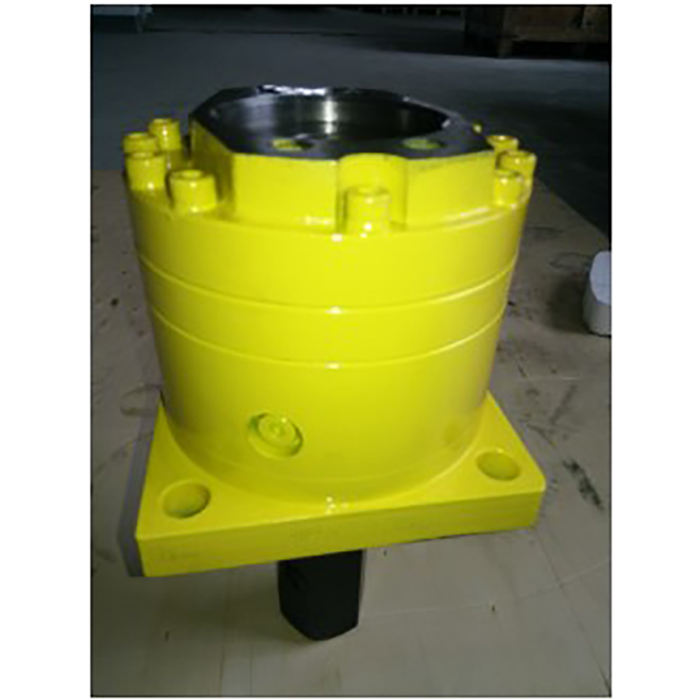

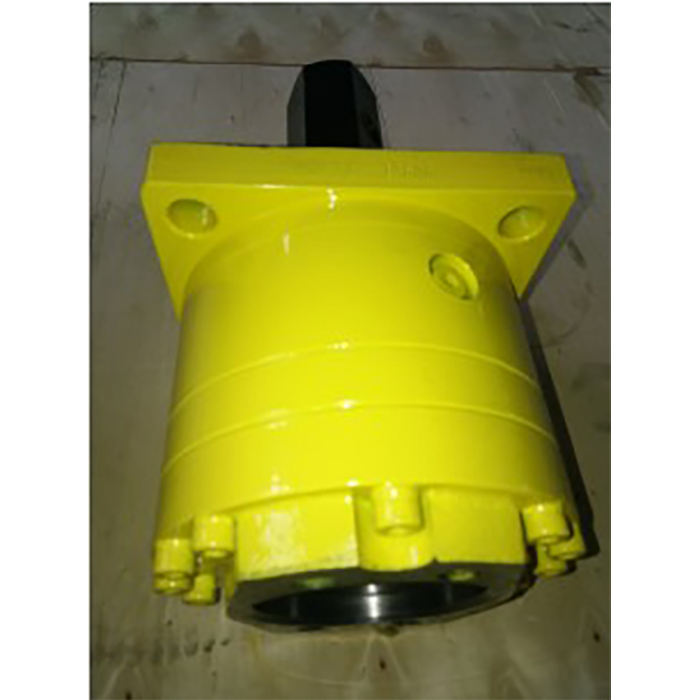

Model 3 Series Wheel Drives Planetary Gearbox Replacement of AUBURN

Send Inquiry

Product Description

Planetary gearbox is a high-performance gearbox commonly used in various industrial and commercial applications. It aims to provide high torque and high-power transmissions while maintaining a compact and lightweight design, making it an ideal choice for limited space applications. The planetary gearbox is named after its planetary gear set, which consists of a central sun gear, planetary gear, and outer gear ring. The planetary gears rotate around the sun gear and mesh with the outer gear ring, providing high torque and high-speed transmission between the input and output shafts.

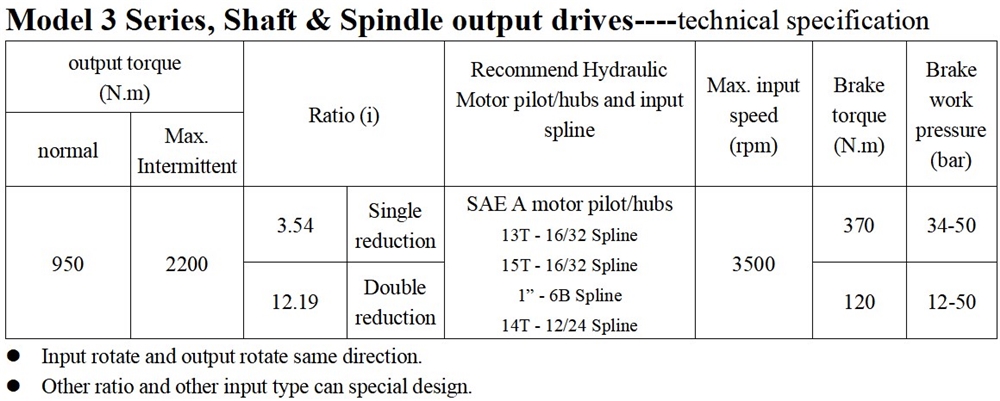

FEATURE CHART: MODEL 3 SERIES,SHAFT AND SPINDLE OUTPUT DRIVES REDUCTION - STYLE T

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 3

MOTOR PILOT/HUBS

SAE A2

SAE A4

MOTOR INPUT SPLINE OR SHAFT INPUT OPTIONS

13T - 16/32

15T - 16/32

1” - 6B

14T - 12/24

Shaft Input 1.5” Round

1.5R

RATIO OPTIONS

3.54

12.19

OUTPUT OPTIONS

2.56” Round

2.00” Hex

F1 Spindle

F14 Spindle

F14

BRAKE

120Nm

370Nm

Without Brake

Example of complete order code:

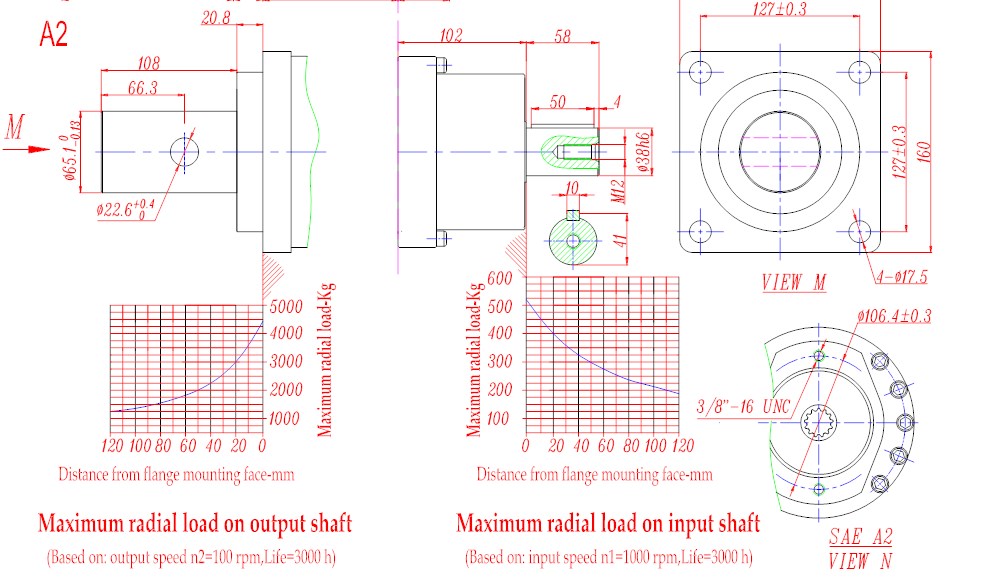

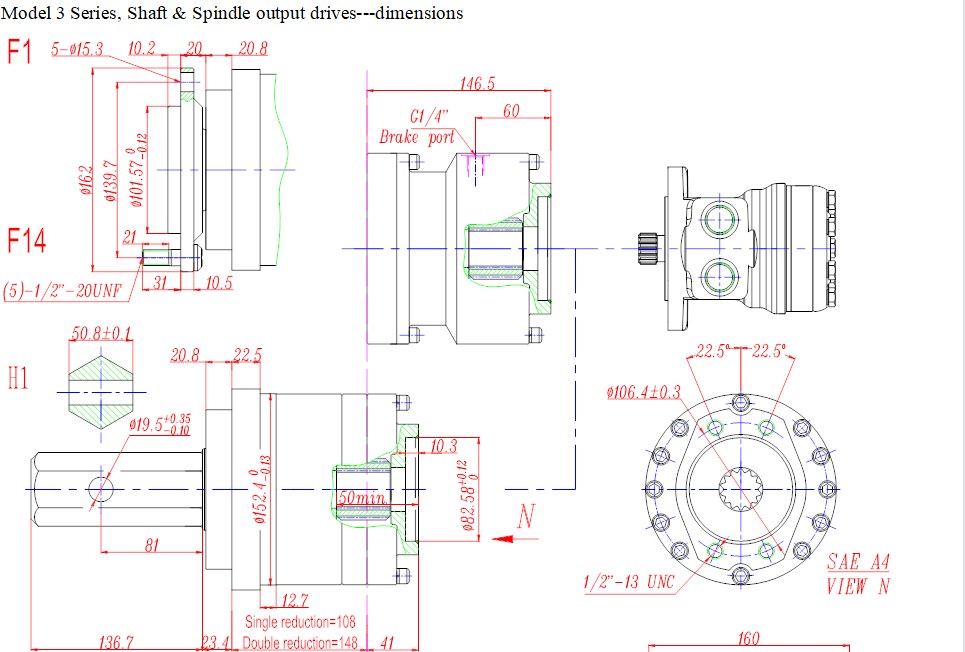

Model 3 Series, Shaft & Spindle output drives---dimensions

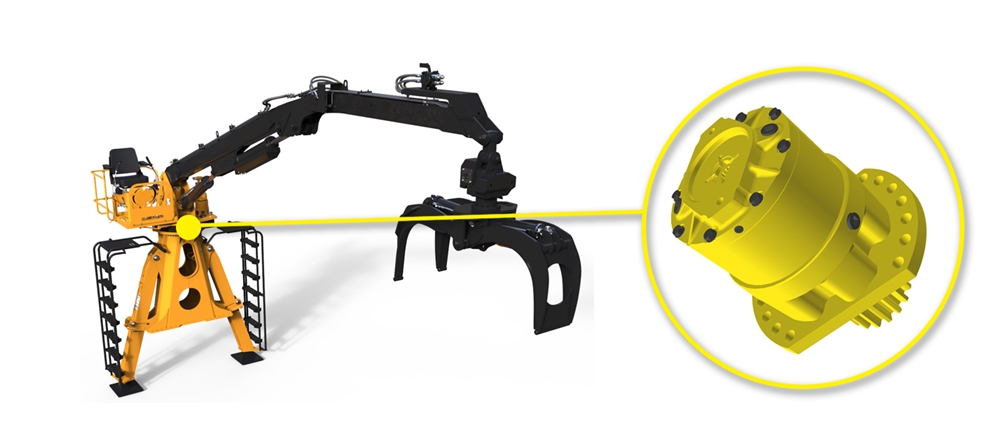

Application of Type 3 Series Planetary Gearboxes 1. Robotics and Automation: The Model 3 series gearbox is often used in robot and automation applications that require precise positioning and high torque. It is typically used for robotic arms, picking and placement systems, and other types of automated machinery. 2. Material handling: The Model 3 series gearbox is also used for material handling applications that require precise movement of heavy objects. It is typically used in conveyor systems, elevators, and other types of material handling equipment. 3. Packaging Machinery: The compact and high torque design of the Model 3 series gearbox makes it an ideal choice for packaging machinery, such as filling machines, capping machines, and labeling machines, where high-speed and accurate positioning is crucial. 4. Medical equipment: The Model 3 series gearbox is also used in medical equipment, such as imaging machines, where precise positioning, smooth and quiet operation are crucial. 5. Printing and Paper Conversion: The Model 3 series gearbox is typically used in printing and paper converter applications that require high speed and precision. It is often used in printing machines, laminators, and other types of paper conversion machinery. Overall, the Model 3 series planetary gearbox is a multifunctional and high-performance gearbox that is very suitable for use in various industrial applications. Its compact design, high torque capacity, and accuracy make it an ideal choice for applications with limited space but crucial performance.

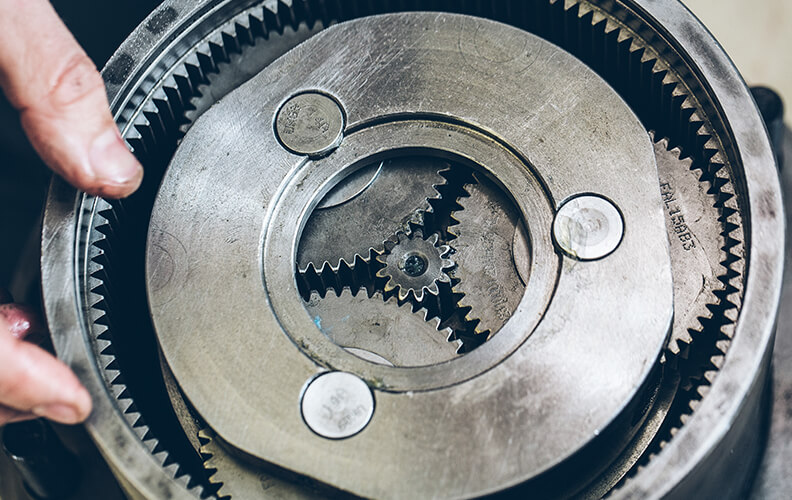

How to maintain a planetary gearbox? Maintaining the planetary gearbox is crucial for ensuring its optimal performance and lifespan. Here are some tips for maintaining planetary gearboxes: 1. Regular inspection: Check the gearbox for wear or damage. Check the gear teeth, bearings, and seals for signs of wear or injury, and promptly replace any worn or damaged parts. 2. Lubrication: Correct lubrication is crucial for the effective operation of planetary gearboxes. Use recommended lubricants and follow the manufacturer's guidelines for lubrication intervals and amounts. 3. Temperature monitoring: Monitor the temperature of the gearbox during operation. Overheating may damage the gearbox, so if the temperature exceeds the recommended limit, please take corrective measures. 4. Alignment: Correct gearbox alignment is crucial for optimal performance. Ensure that the gearbox is correctly aligned with the input and output shafts, and regularly check the alignment. 5. Load monitoring: Monitor the load on the gearbox during operation and ensure that it is within the recommended limits. Overloading the gearbox can cause damage and shorten its service life. 6. Cleaning: Keep the gearbox clean and free of debris. Dirt and debris can cause wear and damage to gearbox components. 7. Storage: If the gearbox is not in use, store it in a clean, dry, and protected environment. Use suitable protective covers to prevent dust and debris from accumulating on the gearbox. In summary, maintaining the planetary gearbox includes regular inspection, proper lubrication, temperature monitoring, alignment, load monitoring, cleanliness, and proper storage. By following these tips, you can ensure the optimal performance and lifespan of the planetary gearbox.

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
