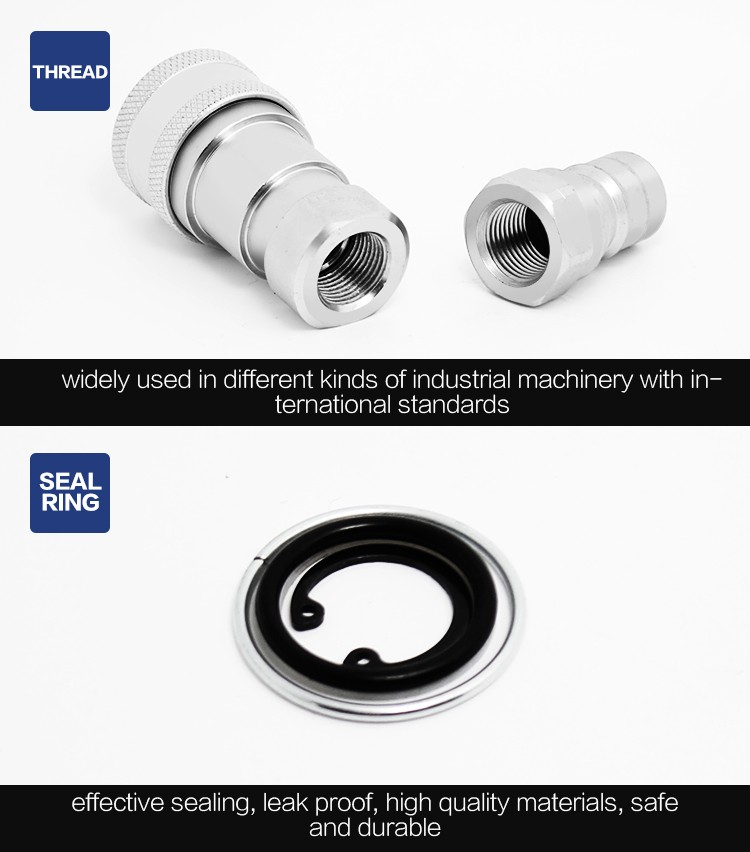

ISO-7241-B 1/4 inch BSP/NPT Thread female /male steel /bass hydraulic hose quick disconnect couplers
Features:

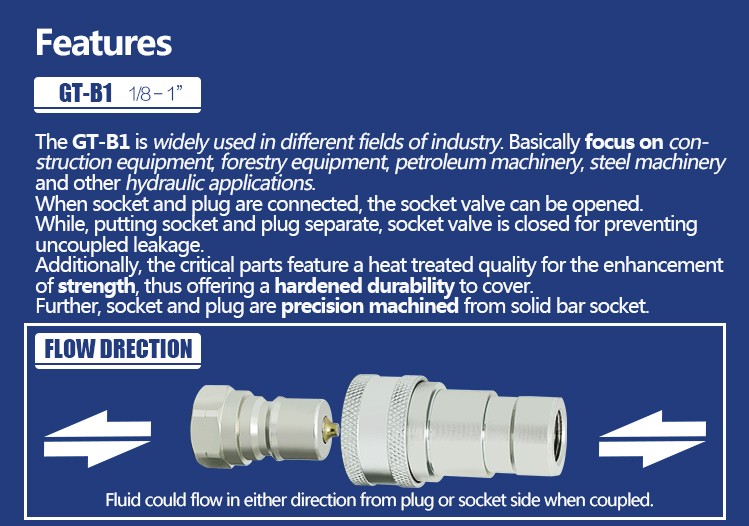

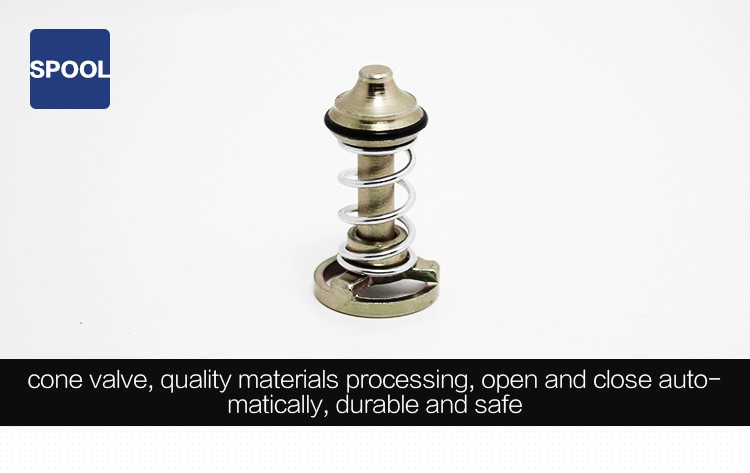

l Valve plug can automatically close to prevent leakage when couplings are disconnected.
l Valve plug can automatically open to let fluid get through when couplings are connected.
l Key parts are induction hardened for a better durability.

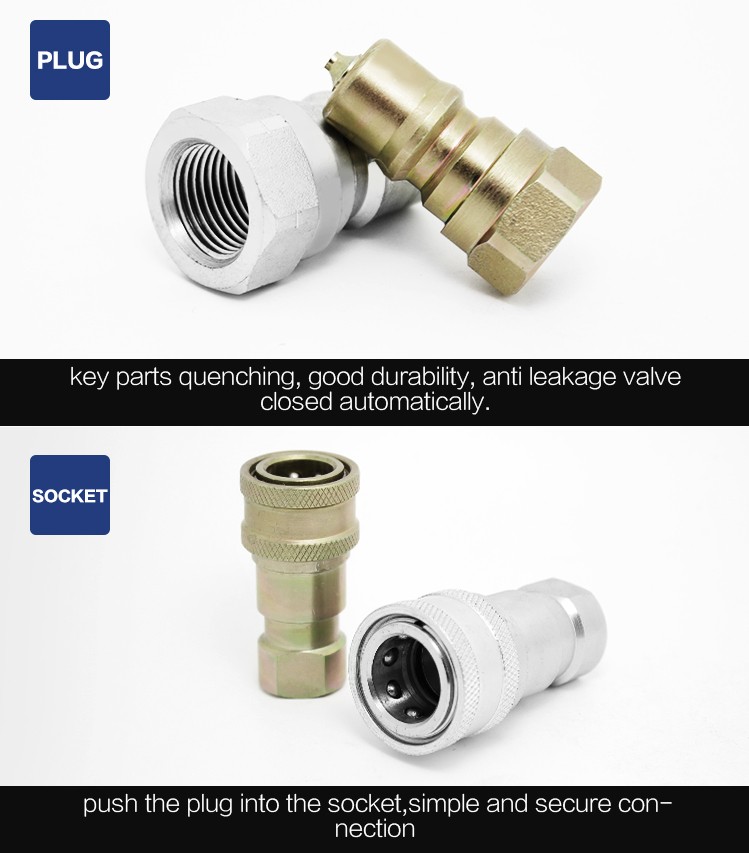

l Function reliable ball-lock system combines 2 marched half parts together.
l Male coupling and female coupling are machined from solid steel bar stock.
l These couplings reach ISO7241-1B standard.
l The same function and can interchange following foreign products: PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HA Series.
Applications:
The NB-Raydafon hydraulic quick connect shaft coupling Series are suitable for all kinds of hydraulic usage. If fluid delivery pipe needs to be connected or disconnected because of operation or maintenance without fluid leakage, NB-Raydafon can help, because it has double shut-off couplings.
The NB-Raydafon hydraulic quick connect shaft coupling Series are wildly used for coupling in industrial fields , such as construction equipment, forest equipment, hydraulic machine tools, petroleum equipment, steel equipment and other hydraulic equipment or tools.
