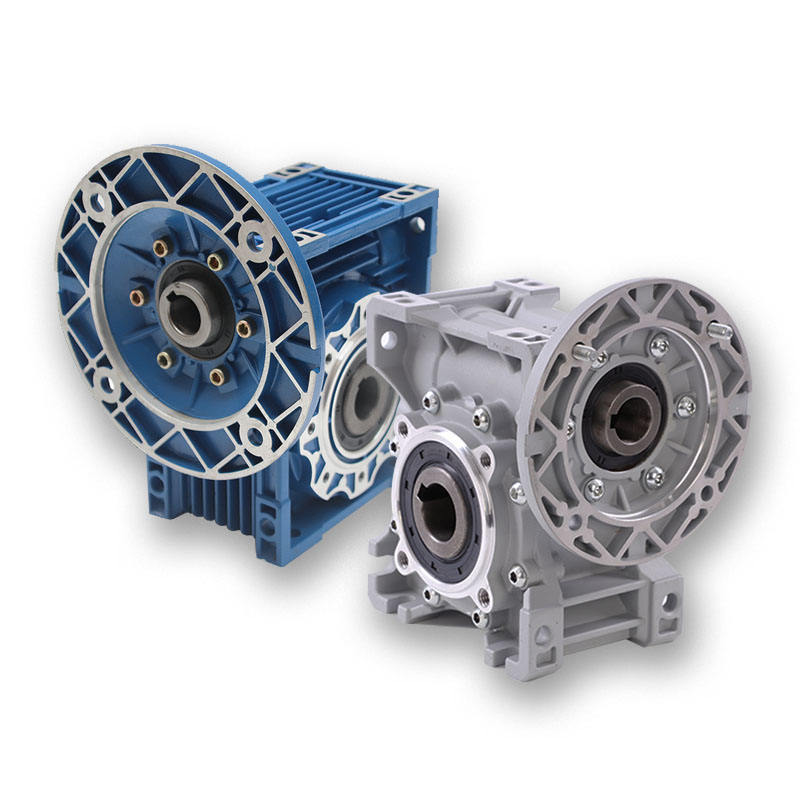

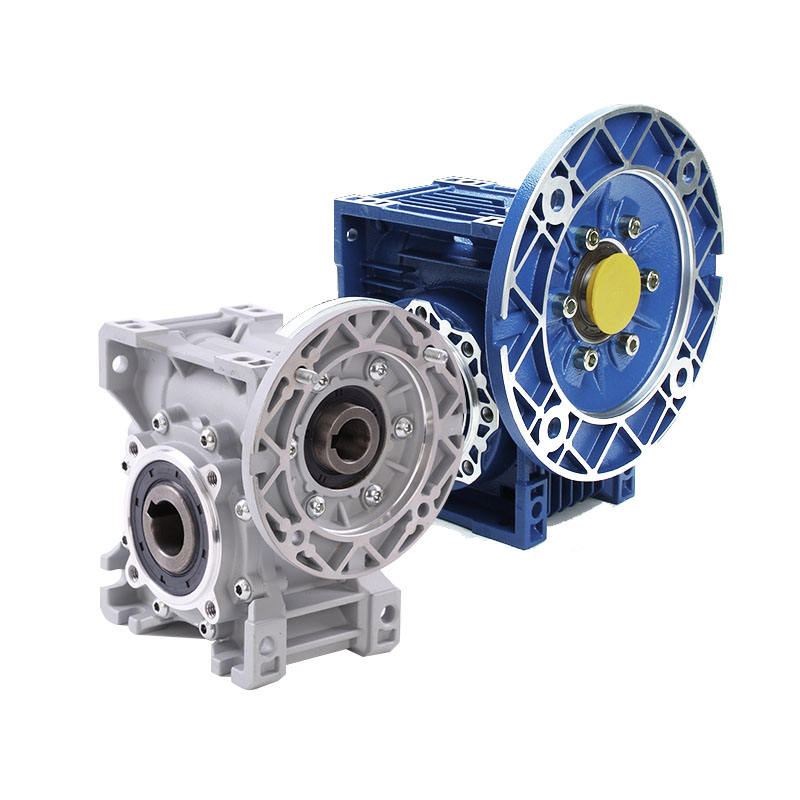

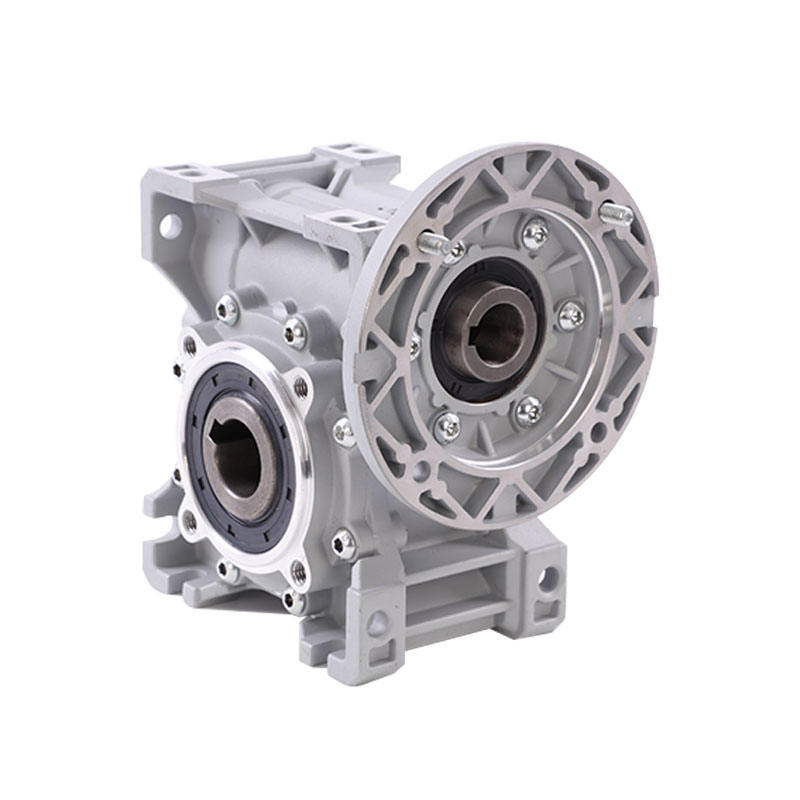

Hot - Selling Aluminum Worm Gearbox Motor for Industrial Gear Box

Raydafon Guoup's Hot-Selling Aluminum Worm Gearbox Motor delivers robust performance for industrial applications, offering durable aluminum construction, smooth operation, and energy efficiency. Ideal for engineers and manufacturers in automation and machinery, it ensures reliability and reduces downtime. Experience enhanced productivity with our precision-engineered solution. Choose Raydafon for superior quality and dependable performance.

Send Inquiry

Product Description

Product Information

Please tell us what you need:

1, Confirmed model: nmrv30, nmrv40, nmrv50, nmrv63, nmrv75, nmrv90, nmrv110, nmrv130 and so on
2, Confirm the reduction ratio: 5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, 100:1
3, Confirm the input hole and output size: please refer to the detailed size table for the specific size
4, Confirm the size of motor flange: there are two kinds of large flange (B5) and small flange (B14), choose one.
5, Confirm the diameter of motor shaft hole: 11mm, 14mm, 19mm, 24mm, 28mm, 38mm
6, Confirm the motor specification: the standard configuration is a three-phase 380V motor with a speed of 1400rpm. If necessary: single phase 220 V motor, variable frequency motor, brake motor, 6-level motor, the price is determined separately.

NMRV040:

Hot - Selling Aluminum Worm Gearbox Motor for Industrial Gear Box


   Type
  Worm Gear Speed Reducer / Gearbox / Reductor

  Model
  NMRV25/30/40/50/63/75/90/110/130/150/185

  Color
  Customized Color

  Packing
  Carton, Honey Comb Carton, Wooden Case with Wooden Pallet

  Usage
  Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.

  Flange
  IEC standard flange or customized dimensions

  Housing Material
  Aluminum&Cast iron

  Size
  11 sizes(WMRV25~WMRV185)

  Power
  0.06~22 KW

  Nominal torque
  ≤2548 N.m

  Ratio
  5~100

  For more models, please click here!

Applicable Industries	Building Material Shops
Gearing Arrangement	Worm
Output Torque	1.8-2430N.M
Input Speed	14-186.7RPM
Output Speed	1400RPM
Place of Origin	China
China	Zhejiang
Brand Name	EPG
Manufacturing method of gear	Cast gear
Toothed Portion Shape	Involute spur gear
Color	silver, blue, black and so on
keyword	reduction gearbox
