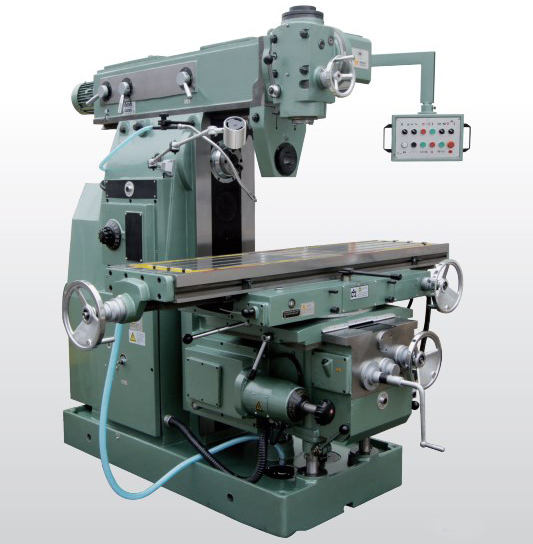

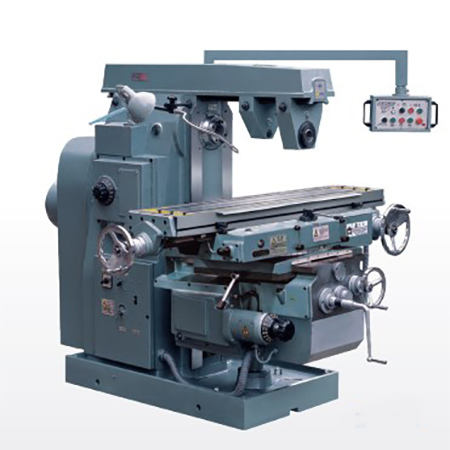

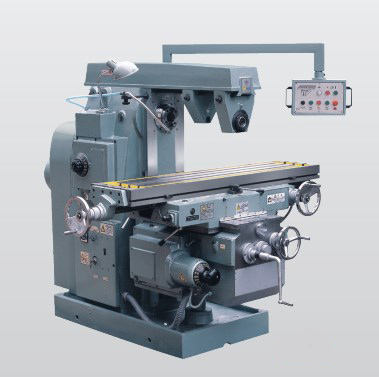

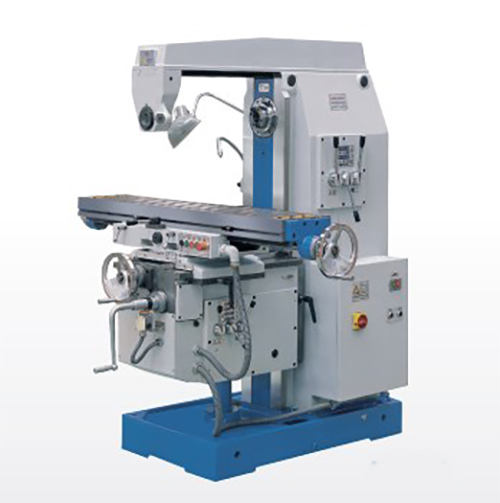

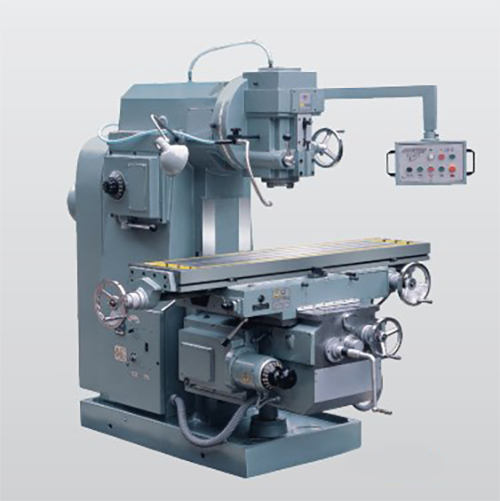

X6242 Universal Rotary Head Knee-Type Milling Machine

The X6242 Universal Rotary Head Knee-Type Milling Machine is a specific model of milling machine that combines the features of a
knee-type construction with a universal rotary head.

Main specifictions	Unit	X6232B	X6242
Horizontal spindle speed steps	steps	18	18
Horizontal spindle speed range	rpm	30 ~ 1500	30 ~ 1500
Vertical spindle speed steps	steps	12	12
Vertical spindle speed range	rpm	52 ~ 1400	52 ~ 1400
Feed speed steps	steps	18	18
Feed speed range: Longitudinal X	mm/min	15 ~ 750	22 ~ 1100
Cross Y	mm/min	15 ~ 750	22 ~ 1100
Vertical Z	mm/min	5.7 ~ 280	8.3 ~ 410
Rapid feed speed range: Longitudinal X	mm/min	2250	2400
Cross Y	mm/min	2250	2400
Vertical Z	mm/min	844	900
Main motor power	Kw	7.5	11
Main motor rotating speed	rpm	960	960
Feed motor power	Kw	1.5	3
Feed motor rotating speed	rpm	960	1420
Coolant pump power	Kw	0.12	0.12
Coolant pump rotating speed	L/min	2760	2760
Vertical milling head motor power	Kw	3	3
Vertical milling head rotating speed	rpm	1420	1420
Machine dimension	mm	2327×1792 ×2000	2522×2262 ×2210
Machine weight	Kg	3500	5300

Main specifictions	Unit	X6232B	X6242
Worktable Size	mm	320×1320	420×1800
T slots (N×W×D)	mm	3×18×80	3×18×90
Max. load bearing of worktable	Kg	500	800
Longitudinal travel (Manual/Power) X	mm	800/780	1200/1180
Cross travel (Manual/ Power) Y	mm	300/280	360/350
vertical travel (Manual/Power) Z	mm	410/400	470/450
Max.rotary angle of worktable		±45°	±45°
Horizontal milling spindle taper		7:24:00/ISO50#	7:24:00/ISO50#
Horizontal milling spindle hole diameter	mm	Φ29	Ø29
Distance from horizontal milling spindle face to worktable	mm	30 ~ 440	30 ~ 500
Distance from horizontal milling spindle center to arm	mm	155	201
Horizontal milling spindle bearing diameter	mm	100	100
Vertical milling spindle hole diameter		7:24/ISO40#	7:24/ISO40#
Vertical milling spindle taper	mm	20	20
Distance from vertical spindle face to horizontal spindle center	mm	15 ~ 95	60 ~ 140
Vertical spindle bearing diameter	mm	95	95
Distance of vertical spindle movement	mm	80	80
Rotary angle of universal milling head		360°	360°

Here are some key features and applications of the X6242: Features: 1. Universal Rotary Head: The machine is equipped with a universal rotary head that provides additional versatility and flexibility in machining operations. The rotary head can be swiveled and tilted to various angles, allowing for the milling of complex contours and the execution of compound angles. 2. Knee-Type Design: The knee-type construction provides stability, rigidity, and versatility to the machine. The knee can be adjusted vertically to accommodate different workpiece heights, allowing for precise positioning and easy setup. 3. Horizontal and Vertical Spindles: The X6242 typically features both horizontal and vertical spindles. This allows for a wide range of milling operations to be performed, including horizontal and vertical milling, drilling, and boring. 4. Diverse Speed Range: The machine offers multiple speed options, allowing operators to choose the appropriate speed for various machining operations. This flexibility enables the machine to handle different materials and cutting requirements. 5. Versatile Tooling Options: The X6242 is compatible with a wide range of tooling options, including different types of cutters, end mills, drills, and more. This versatility allows for the machining of various materials and the execution of different milling operations. Applications: 1. General Metal Machining: The X6242 is suitable for general metal machining applications. It can perform tasks such as face milling, end milling, drilling, and more on a variety of materials, including steel, aluminum, and brass. It finds application in industries such as general machinery manufacturing, automotive, and fabrication shops. 2. Complex Contour Machining: The universal rotary head enables the machine to mill complex contours and execute compound angles, making it suitable for applications that require intricate and precise machining of irregular shapes and profiles. 3. Toolroom Operations: The X6242 is often utilized in toolrooms for prototyping, repair work, and maintenance. Its versatility and ability to handle diverse machining tasks make it a valuable asset for tool and die makers, enabling the production and repair of various tooling components. 4. Education and Training: The machine is frequently used in educational institutions and training facilities for teaching milling operations and providing hands-on experience to students and trainees. Its knee-type design, universal rotary head, and diverse capabilities make it suitable for learning advanced milling techniques. In summary, the X6242 Universal Rotary Head Knee-Type Milling Machine offers features such as a universal rotary head, knee-type construction, horizontal and vertical spindles, diverse speed range, and versatile tooling options. It finds application in general metal machining, complex contour machining, toolroom operations, and educational environments where stability, versatility, and precision are required for milling operations with the added flexibility of a universal rotary head.

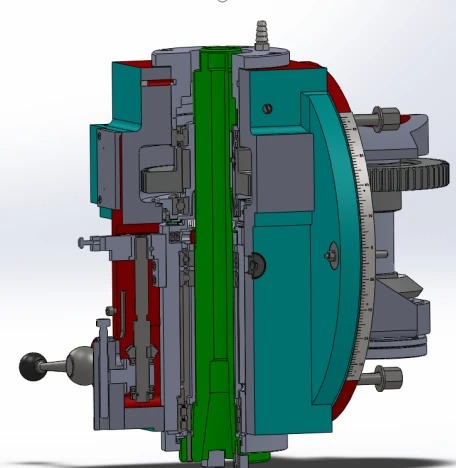

Vertical head: Vertical head can rotate ± 45 ° The spindle sleeve can move 75mm

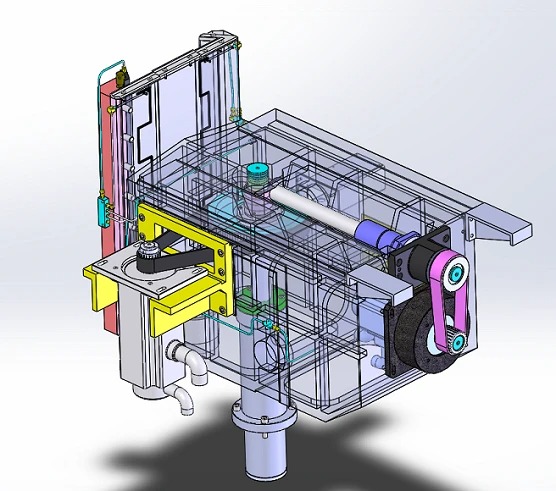

Three axes driven by servo motor and ball screw:Three AIX are driven by servo motors and ball screws. They are controlled by a CNC system and can improve efficiency.

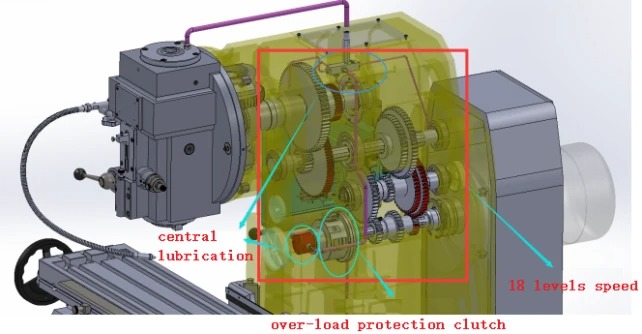

Transmission: The main shaft is driven by hardened gears, with a speed range of 18 levels. It provides a high rigidity process. The maximum torque can reach 2800N. M.

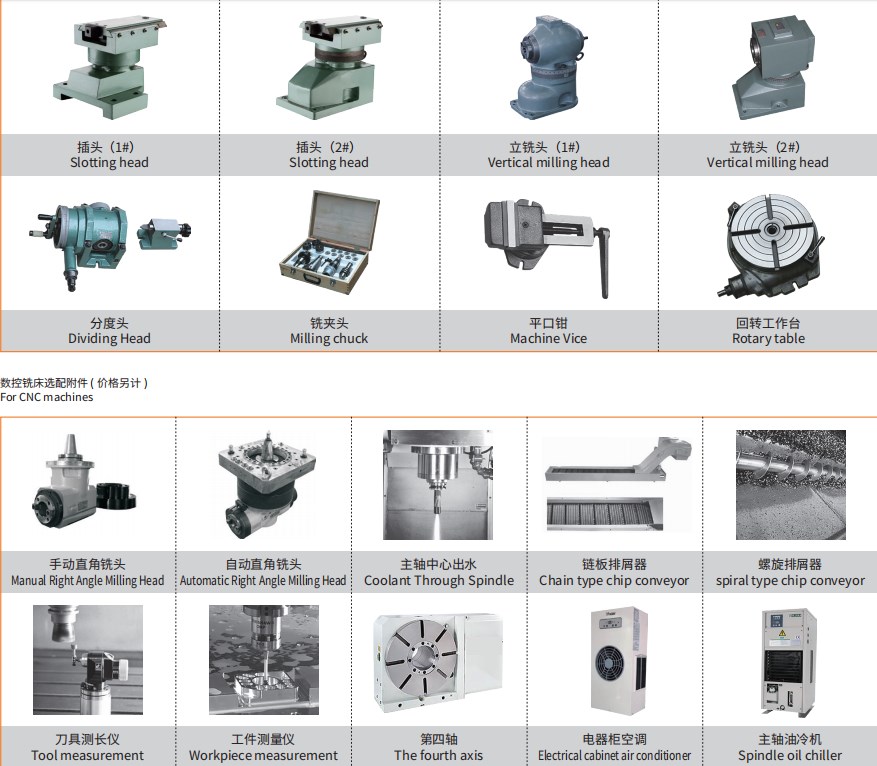

Optional accessories at extra cost(For conventional machines)

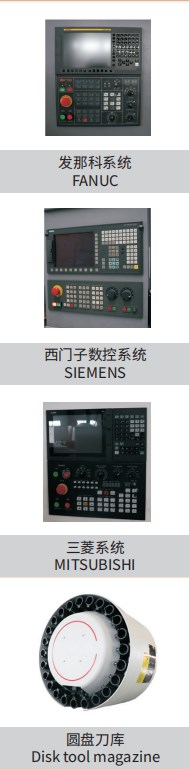

System and tool magazine
