Heavy Duty Engineering Chains 81X 81XH 81XHH 81XHS Cranked link Transmission Chains

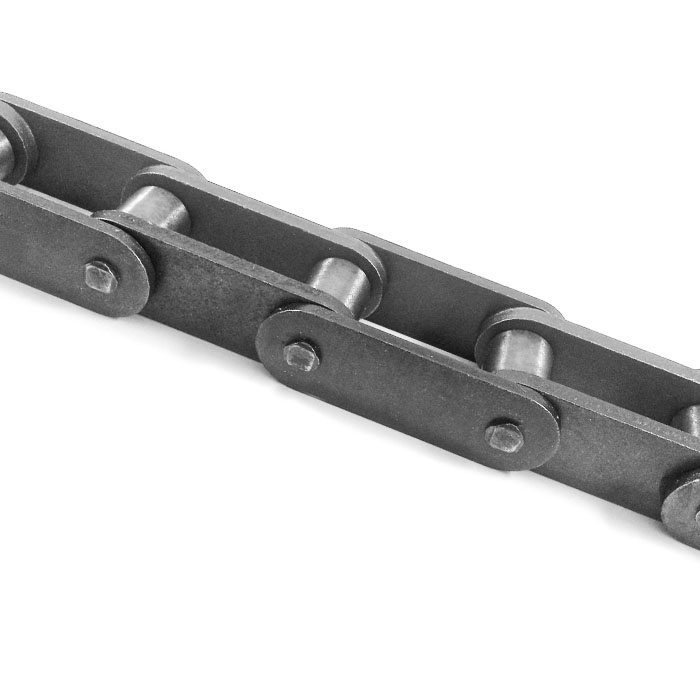

81X chain features a 2.609" pitch and is categorized as a steel bushed roller chain within the engineer class of chains. Its
commonly referred to as an 81X conveyor chain due to the straight side-bar design and common usage within conveying applications. Most commonly, this chain is found in the lumber and forestry industry and is available with upgrades such as "chrome pins" or heavier-duty side-bars. Our high-strength chain is manufactured to ANSI specifications and dimensionally interchanges with other brands, meaning sprocket replacement is not necessary. We also supply 81X sprockets, attachments, and we have a Made in USA 81X chain breaker. Because of its high-strength and effective design.

This chain is found in a wide range of applications including; asphalt paving, car wash, citrus processing, clean grain and return elevators, fertilizer conveying, food processing, forest products, grain handling, manure spreaders, produce wash-down and many more!

Our range of 81X chain and 81X sprockets covers the most popular styles available worldwide. It is a 2.609 pitch, straight sidebar chain, and ready for immediate delivery to your site. 81X chains are commonly found in the timber industry and used for conveyors, stackers, sorters, trimmer saws, and un-scramblers. Due to their low-cost these chains are found in a wide variety of applications & industries. The styles of 81X chain that we stock are manufactured from different materials, plate thickness and sidebar heights. This selection enables you to have higher working loads and extend your chains service life. Our range of 81X chains and sprockets in Raydafon are available in different tiers of quality and price. All chains come with solid bush and roller, with fully heat-treated components and are manufactured to commercial standards for clearance, fits and limits. We stock 81X chain in 10-foot rolls and stock a full range of rivets, connector links, attachments, and sprockets.

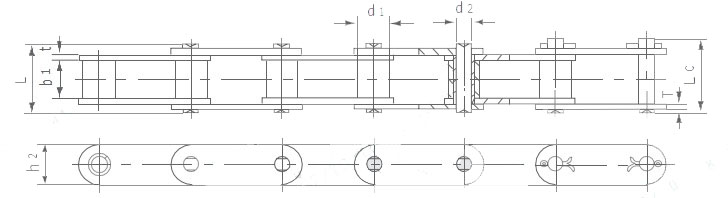

Chain NO.	Pitch	Roller Diamter	Width Between inner Plates	Pin Diameter	Pin Length	lnner Plate Depth	Plate Thick- -ness	Ultimate Tensile Strength	Average Tensile Strength
		P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	t/T max	Q min
		mm	mm	mm	mm	mm	mm	mm	mm	kN
81X	66.27	23.00	27.00	11.10	49.0	53.5	28.50	4.00	106.7
81XH	66.27	23.00	27.78	11.10	60.7	65.1	31.35	7.94/5.55	151.9
81XHH	66.27	23.00	27.78	11.10	65.6	70.0	31.35	7.94	191.1
81XHS	66.27	23.00	27.00	11.10	63.6	68.0	31.80	7.60	152.0
