Harvester Gearbox Reversing Bevel Gearbox

Harvester Gearbox Reversing Bevel Gearbox

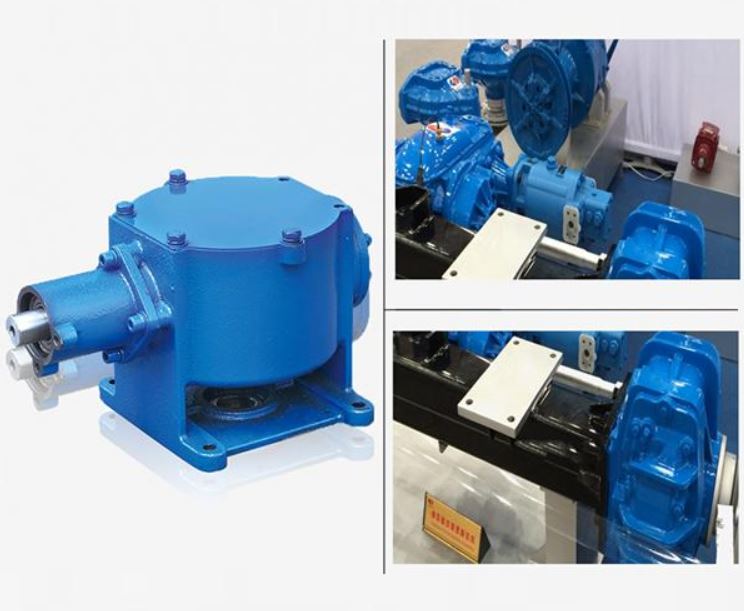

Reversing Bevel Gearbox (used in Grain Harvester Machine)

could offer proper reversing bevel gearbox for customer's grain harvester machine if the application,

dimension and input speed and gear ratio are offered by customers.

ODM (original design manufacturing) service is provided when manufacturing reversing bevel gearbox.

The followings are its technical parameters:

Brand Name: Raydafon

Model Number: EP9023

Gearing Arrangement: Bevel I Miter

Output Torque: 81 NM

Rated Power: 15HP

Input Speed: 1300rpm

Output Speed: 1300rpm

Ratio: 1:1

Weight: 1 Skg

Input torque: 81 NM

Housing Material: HT200

Gear Shaft: 40CrMnTi

Input description: Key way shaft

Mould No: 3.5
