GZB-AA / AAL Heavy Load Roller LMG Precision Linear Guideway Guide Rail for CNC Machine Tool Lathe

GZB-AA/AAL Heavy Load Roller linear guidewayNotes:1. L, dimensions are based on MN seal type, details see seal type2. AAAAL blocks of GZB series are flange type and top mounting holesare thread holes, up-lock see dimension M, down-ock see dimension a3. GZ885, GZB100, GZB125 blocks in the top L3, Bs ......

Send Inquiry

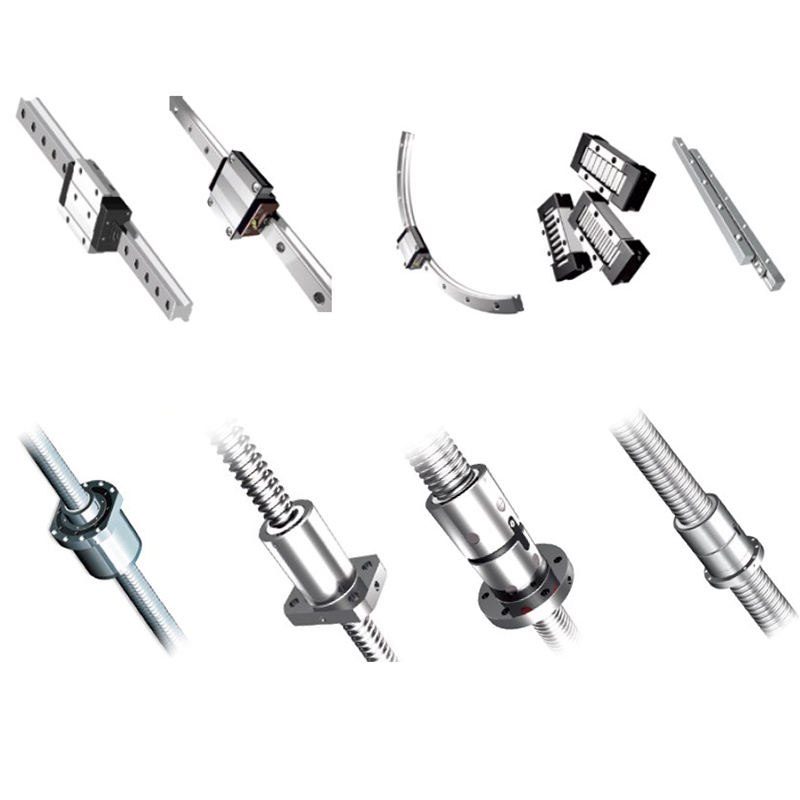

Product Description

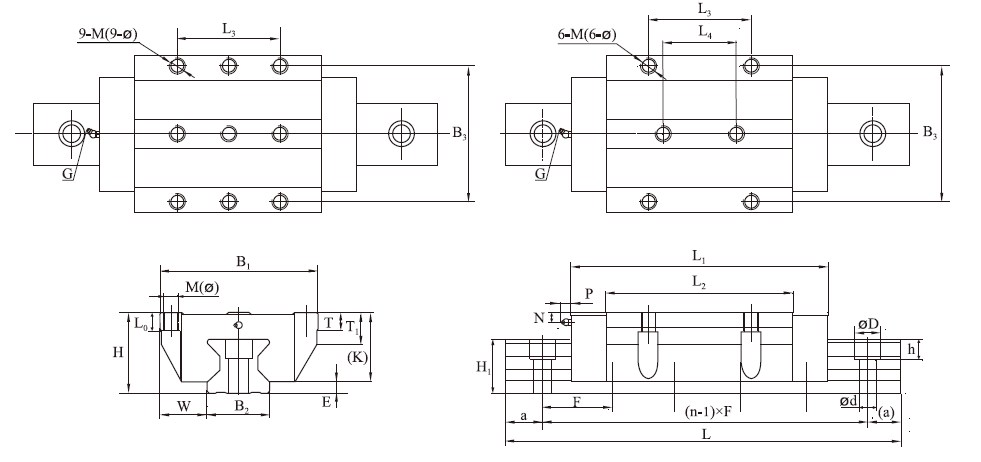

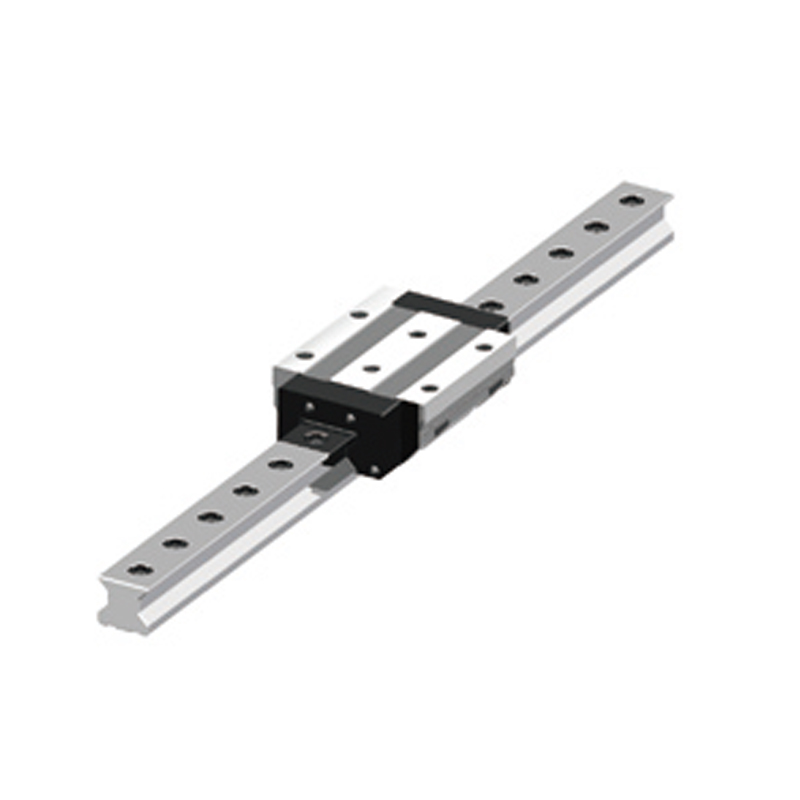

GZB-AA/AAL Heavy Load Roller linear guideway

Notes:

1. L, dimensions are based on MN seal type, details see seal type

2. AAAAL blocks of GZB series are flange type and top mounting holesare thread holes, up-lock see dimension M, down-ock see dimension a

3. GZ885, GZB100, GZB125 blocks in the top L3, Bs directions aresymmetrically distributed of three-row mounting holes, total 9 holes.

4. Please note if need oil of side surface

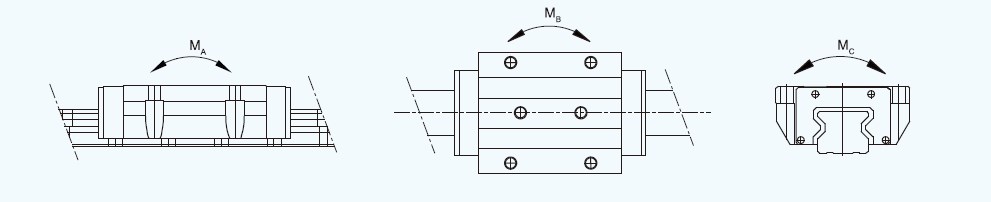

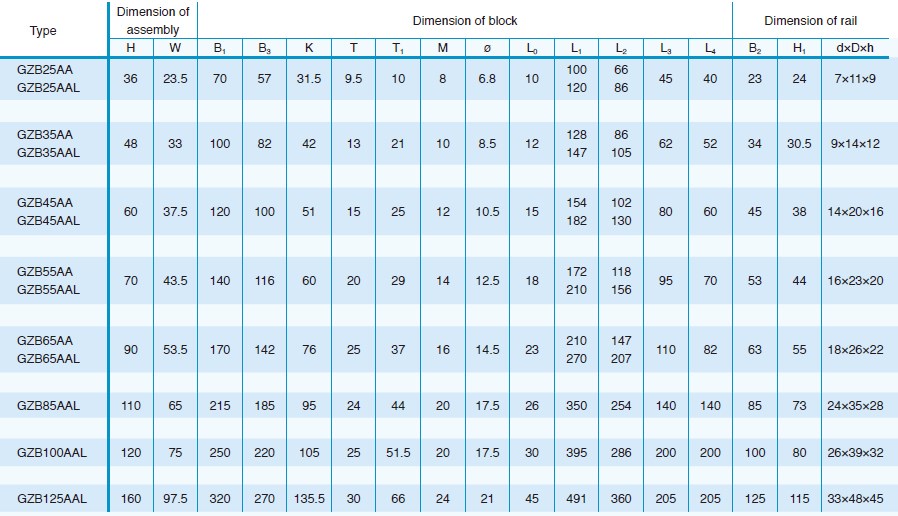

		Dimension of oil cup					Dynamic load rating	Static load rating	Torque rating
	Max. single length	G	P	N	C(KN)	CO(KN)	MA(N.m)	MB(N.m)	MC(N.m)
GZB25BA GZB25BAL	6000	M6	12	5.5	26.5 33.8	50.8 71.6	570 830	570 830	710 980
GZB35BA GZB35BAL	6000	M6	13	8.5	50.5 61	121 162	1548 2708	1548 2708	2343 3283
GZB45BA GZB45BAL	6000	M8×1	14	11	84.5 99.6	191 236	3156 5560	3156 5560	4858 6736
GZB55BA GZB55BAL	6000	M8×1	14	13	123 154	292 390	5267 9713	5267 9713	8243
GZB65BA GZB65BAL	6000	M8×1	14	17	192 248	451 613	10823 20808	1082320808	17762 22957
GZB85BAL	6000	M8×1	14	21	460	1050	45600	45600	51420
GZB100BAL	6000	M10×1	16	23	547	1330	61200	61200	73140
GZB125BAL	6000	M10×1	16	23	1040	1924	123176	123176	114438

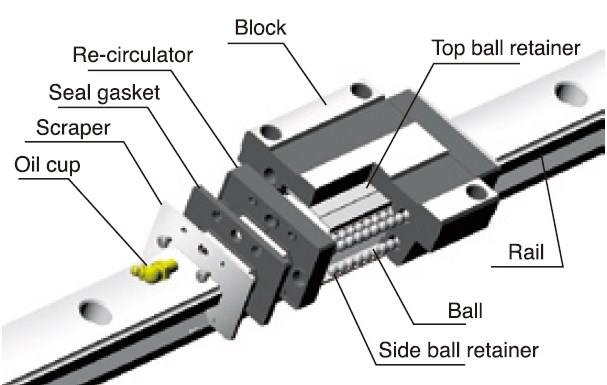

Basic structure of GGB series

Mechanical processing center, CNC lathe, spark wire cutting machine, gantry type wood machinery. Laser machines, precision testing instruments, packaging machines, food machinery, medical machinery, tool grinders, surface grinders

Precision linear guideway

GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMG
GZB-BA/BAL heavy load roller LMG
GGB four direction equal load ball LM guide
GGB-AA/AAL four direction equal load ball LM guide
GGB-AB/ABL four direction equal load ball LM guide
GGB-BABAL four direction equal load ball LM guide
GGC type Miniature linear guideway
GGD heavy load radial linear guideway
GGD-AAAAL heavy load radial guideway
GGD-BA/BAL heavy load radial guideway

Precision linear motion spline series

Precision linear motion spline series

GJZ Convex type

GJZA Convex type

GJF Convex type

GJH Convex type

GJZG Convex type

GJFG Convex type

GJZD Convex type

CNC Precision Worktable

CNC Precision Worktable

DZHQ type

Precision roller guide block GZD roller guide block Precision roller cross guide GZV precision roller cross guide

GGY arc LMG

Precision ball screw assembly JF / JFZD large heavy load ball screw assembly

JF type large heavy load ball screw

JFZD heavy load ball screw

DKF high speed ball screw

DKFZD high speed precision ball screw

Ball screw with FF / FFZ type inner cycle , single nut

FFB type inner cycle , deflected lead preload flange nut

FFZD type inner cycle , combined spacer preload nut

Ball screw with FFZL type inner cycle , thread preload nut

Ball screw with JF mini-type

Ball screw with CMFZD outer cycle , tube enclosed spacer preload nut

Ball screw with CTF outer cycle tube

Ball screw with DGF inner cycle end housing

Ball screw with DGZ inner cycle end housing type

Precision linear motion bushing

Precision linear motion bushing

Dimension series of GTA , GTAT type

Dimension series of GTB , GTB-T , GTBT , GTBT-T type

Dimension series of GTC type bushing

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components. In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
