Product Description

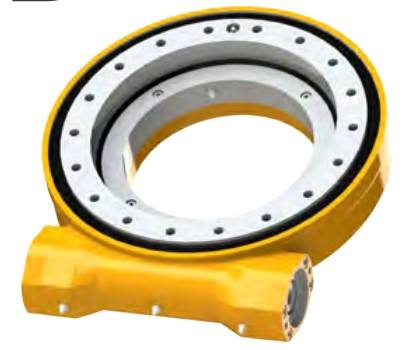

Guaranteed Quality Proper Price FWA Series FWA17-2 Slewing Drive Reducer For Metalworking

Slewing Drive For Metalworking Applications A slewing drive is a mechanical device that rotates and swings to move a workpiece. Its characteristics and functions are dependent on the application. To learn more about the slewing drive, read this article. It covers the basic types and characteristics of these devices. The article also covers their functions and durability. You can use this information to select the right slewing drive for your metalworking application. Application-based slewing drives The compact design and high torque of application-based slewing drives make them ideal for applications where a high level of precision is necessary, such as in the metalworking industry. Whether it's used for a drill press or in a milling machine, slewing drives are characterized by zero backlash and smooth component operation. A variety of performance ranges and mounting characteristics make application-based slewing drives an excellent choice for various types of equipment. They also feature an enclosed housing for protection against the environmental factors and wear and tear of the machine. The hydraulic slew drive is another option for slewing. This type of slew drive is composed of a hydraulic motor, a reducer, and a gear end structure. The hydraulic slew drive has a low pour point and is capable of working under a high back pressure. The hydraulic oil should be resistant to oxidation and corrosion. It should be compatible with a wide temperature range, ranging from -20 C to 80 C. The hydraulic oil used for this type of slewing drive should have a viscosity of 4060 centigrade and a low pour point of 10 C. The hydraulic oil should also have a high precision of 25 um or more. Characteristics A slewing drive is a mechanical device used to move a large tool. Its advantages include high torque and shock loading resistance. Another benefit is its low profile. This makes it perfect for use in construction equipment. It can also be used in heavy-duty industrial applications where high torque and rotational torque are needed. You can find these devices in various applications that involve machining metal. A slewing drive is a gearbox that can handle axial and radial loads. It can also generate high rotational torque. Depending on the application, a slewing drive can be either single-axis or double-axis. A slewing drive consists of several components: gearing, bearings, housing, and seals. The design of the drive determines its torque capacity. A slewing drive that can handle a high load needs a double-row slew bearing. Functions Slewing drives are ideal for applications requiring high torque at reduced speeds. Their zero-backlash characteristics and smooth component operation make them an excellent choice for a wide range of applications. They can be designed as simple or complex as required, with pneumatic or hydraulic motors. They also come with enclosures that protect them from harsh environmental conditions. Here are some of the common functions of a slewing drive: The slewing drive can be designed for a variety of applications, from simple turning operations to precision applications. The basic function is the same as that of a worm gear: the driven member experiences a decrease in speed with an increase in torque. Similarly, the number of threads in the horizontal screw determines the speed ratio. Both types of slew drives are available in a variety of configurations, including single axis turning or dual-axis unison turning. Durability A slewing drive can improve the productivity of your metalworking equipment. They are generally available in a variety of types, such as modular gear, helical, and open gearings. Geared slewing drives can be used in a variety of applications, including automotive, blowers, compressors, mixers, and laundries. Compared to conventional mechanical slewing drives, these gearless drives are easier to maintain, which helps lower your maintenance costs. Slewing drives can be customized to meet your requirements. They can be made of various materials, such as steel, cast iron, or stainless steel. The material you choose will depend on the size and speed of the machine you're planning to use it for. Stainless steel is a popular choice for slew drives, as it provides high strength and durability, as well as corrosion resistance. Worm gearing, on the other hand, is made of bronze, which is more lubricating but has lower load-carrying capacity.

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
19.44 KN.M	142.4 KN.M	110 KN.M	1166 KN	435 KN	104:1	≤0.15°	115kg
14347 LBF.FT	105*10³ LBF.FT	81.2*10³ LBF.FT	262*10³ LBF	97.8*10³ LBF	104:1	≤0.15°	115kg

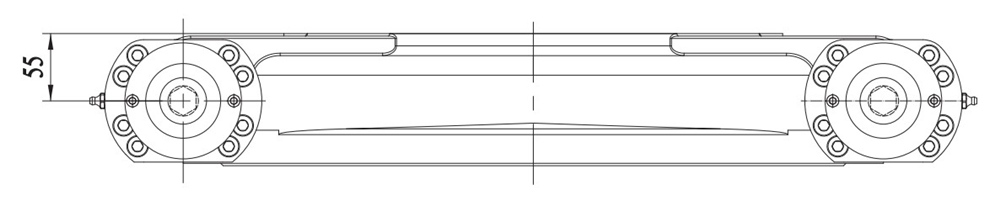

Front View

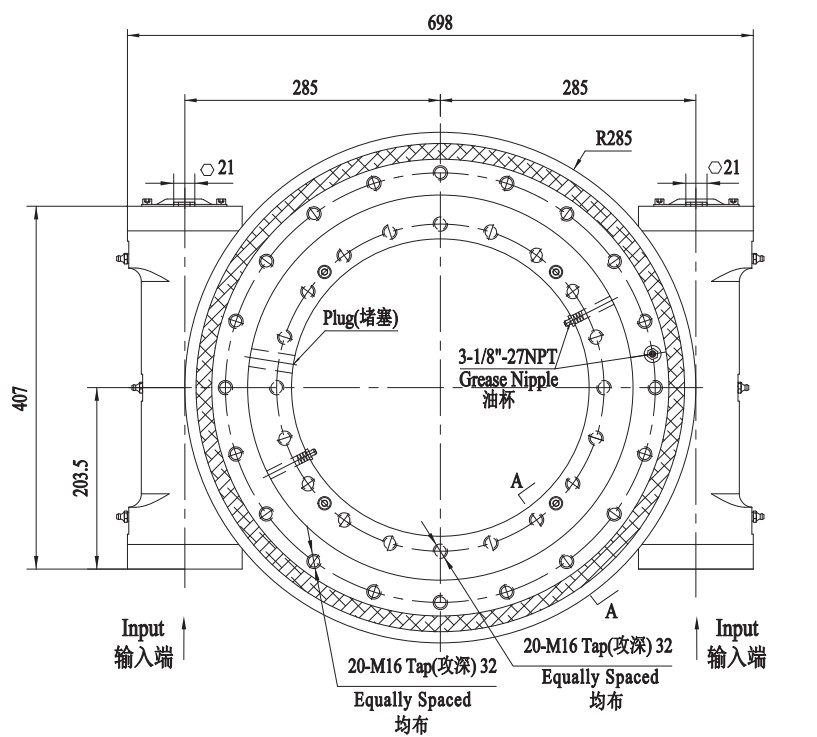

Top View

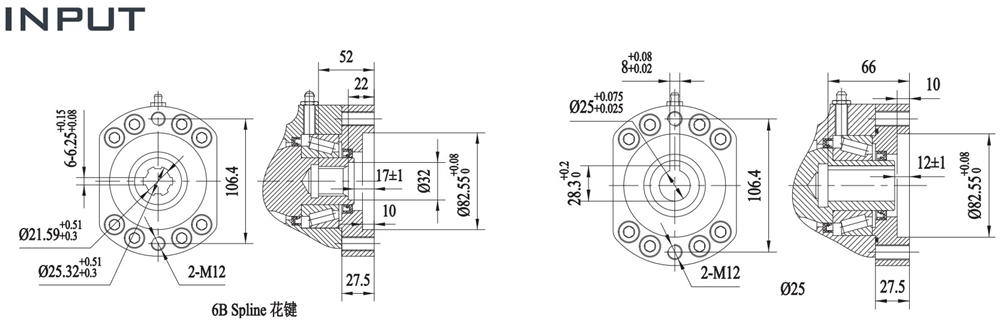

Installation size

Note: customized design can be carried out according to customer requirements

Application

The special-shaped customized rotary device can be designed and manufactured according to customer requirements. Raydafon can independently complete the design and manufacture of high-end customized transmission parts. It is composed of inner and outer shells, rolling bodies, etc. the main materials are ductile iron, cast aluminum, steel forged metal rolling bodies, modified plastic rolling bodies, etc. the device can integrate the upper and lower mounting plates, and carry out design innovation such as flattening, lightweight, fully enclosed and high safety for the final product.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
