Product Description

Rotary Drilling Rig Winch A6ve160HD1d/63W-Vzl380b-Sk Reroth Hydraulic Motor

GFT 110 W3 6497

R916012025 Casagrande

DRILLING RIG B300 REDUCTION GEARBOXES

GFT110 W3 6000 GOOD.

Specifications

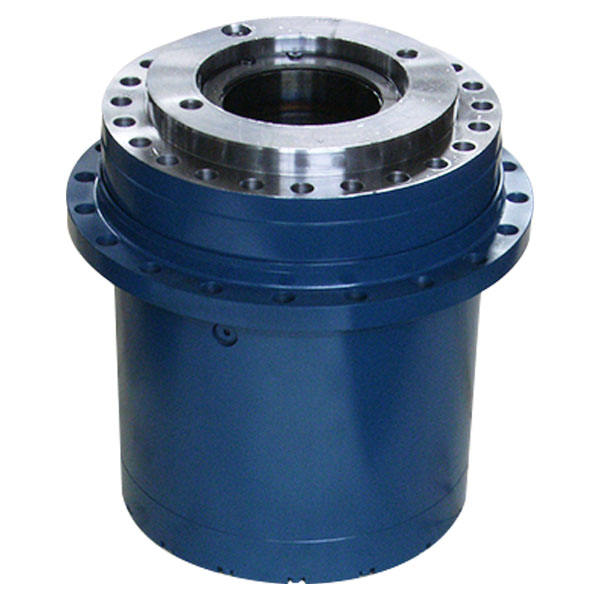

GFT-W is an ideal driving component for hoisting mechanism. It has been widely applied in winding gear of truck crane, crawler crane, ship crane and harbor crane. Because of its compact structure, it can be installed in reel for saving space. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.

Features:

1. Compact two-, three- or four-stage planetary gearboxes
2. Cageless planetary gear bearing
3. Robust main bearing
4. Optimized seals
5. Integr. multi-disc parking brake
6. Optional for mounting Rexroth fixed or variable motors (A2FM/E, A6VM/E, A10VM/E)
7. Interchangeable with Rexroth on performance and dimension.
8. More than 80% components can be interchanged with those of Rexroth (planet gear, Cageless planetary gear bearing, planet carrier, ring gear and so on).

Type GFT 0013 W2 GFT 0017 W2 GFT 0017 W3 GFT 0024W3 GFT 0026 W2

Output Torque T2 max Nm 9500 14000 14000 19000 18000
Ratio    I 16.3-37.6 26.4-45.4 77.9-102.6 90.1-137.2 42.9-62
Hydraulic Motor A2FE63 A6VE55 A2FE63 A6VE55 A2FE63 A6VE55 A2FE63 A6VE55 A2FE90 A6VE107
Cable force KN 50 67 74 99 84
Weight without Motor(approx.)   kg 85 105    115 130 140

Type GFT 0036 W3 GFT 0040 W2 GFT 0050 W3 GFT 0060 W3 GFT 0080 W3

Output Torque T2   max Nm 26000 27000 37500 42500 67000
Ratio I 67-138.9 35.9-59.1 84.2-146.4 63.8-169.9 61.3-185.4
Hydraulic Motor A2FE90 A6VE80 A2FE125 A6VE160 A2FE125 A6VE160 A2FE90 A2FM250 A6VE107
A6VM250 A2FE180     A2FM200     A6VE160    A6VM250

Cable force KN 118 108 150 164 231
Weight without Motor (approx.) kg 155 219 238 230 430

Type GFT 0110 W3 GFT 0160 W3 GFT 0220 W3 GFT 0330 W3

Output Torque T2 max Nm 100000 140000 200000 275000

Ratio I 79.5-215 161.8-251 97.7-293 168.9-302.4

Hydraulic Motor A2FE180 A2FM250 A6VE160 A6VM250 A2FE180 A6VE160 A2FE180 A2FM200 A6VE160 A6VM250 A2FE250 A6VE250

Cable force KN 300 373 471 595

Weight without Motor (approx.) kg 515 680 850 1380

Fairfield L6CC442E35S for XCMG DYNAPAC DD110 DD130 Road roller track drive

Fairfield gearbox Fairfield CR51A150KC07400A for XCMG BOMAG Road roller track drive LIUGONG Road Roller Gearbox.

Final drive gearbox for all the Asphalt Paver 4812027194 DYNAPAC 2530 GEARBOX 4812027193 GEARBOX CPL. 4812027194 GEARBOX CPL

the reducer model you can choose:
–Volvo 8820,7820,6620,ABG423,ABG325,ABG525
–VOept, S1800, S1800-1,S1800-2,S2100, S2100-1.S2100-2, S2500.
–DYNAPAC, F141CS, F181CS,
—DEMAG:135CS, DG141CS, DF145CS
—XCMG: WTU75, RP75, wtu95, WTU125, RP125, LTU125
—SANY: LTU90, LTU120
—ep bush hog 286 gearbox Imus Philippines t: LTU90, LTU120

1, good quality
2, low price, Original Rexroth motor reducer
3, deliver soon
Our company can produce rexroth gearbox according to customer’ requirement.

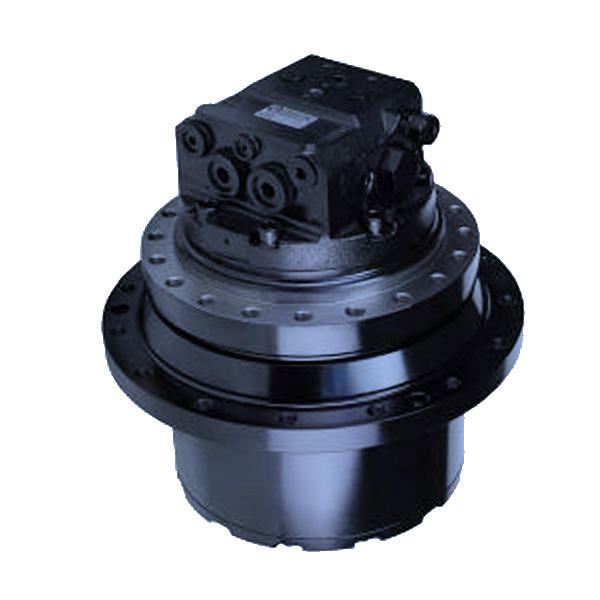

HYDROTRAC GFT is an ideal driving component for wheel or track driving vehept, and other moving equipment and widely applied in excavator, spreading machine, drill machine, Mobile: +86-13083988828 crusher, engineering machinery, ept, tunnel machinery, agricultural machinery, etc. Meanwhile, different motor connectors and dimensions are available on request. It is an ideal replacement of Rexroth products.
