Gearbox For Greenhouse

gearbox for greenhouse

Gearbox 1:13 27Nm
They are applied in greenhouses and sunscreens.
There are differtent sizes of this model

Gearbox 1:7 20Nm

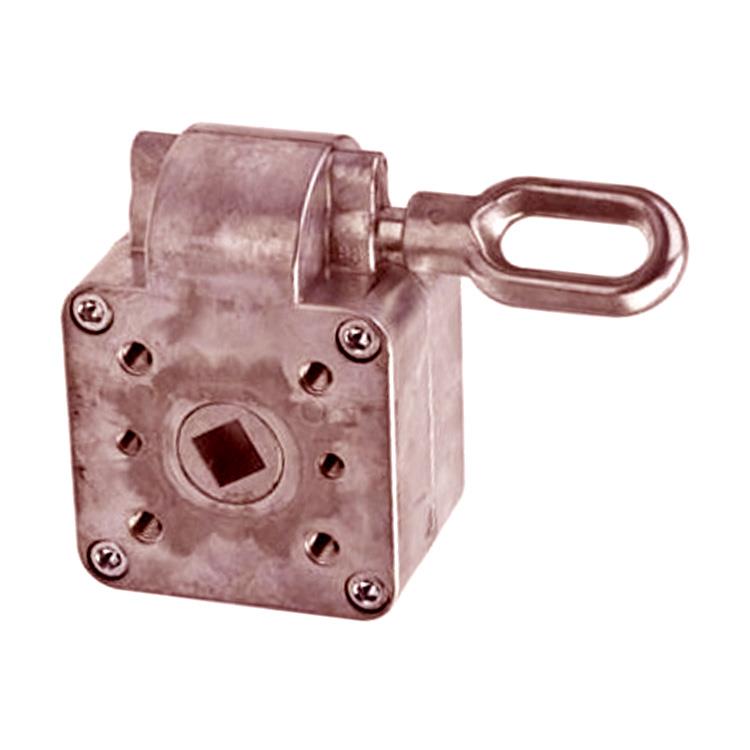

Gearbox 1:13 27Nm ( Picture )

Gearbox 1:15 30Nm

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
SYFV-50	Reel side heat insulation andAuto-open windows for small greenhouse	0.18-0.25	300:1	1-8(Round) 5-55

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
SYFV-60	Auto open windows & overshadow	0.37-0.55	150-900:1	1-8(Round) 5-55

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
SYFV-80	Auto open windows & overshadow	0.75-1.1	150-900:1	1-8(Round) 5-55

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
SYFC100-A	Reel heat preservation quilt	1.1	300:1

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
SYFJ-132	reel double function	0.18	250:1

ITEM NO.	Purpose	Power KW	Ratio	Control area	Note
50 reducers for pump	auto-move pump	0.25	16:1

When there is another sample you want to use , send us a picture and we can help.

When there are any question, please let me know.

Agriculture Greenhouse Motor Gearboxes for Greenhouse Ventilation with mounted frequency controllers are maintenance-free, compact drive units for operating indirect ventilation systems in greenhouses. These motor gearboxes enable a system to be driven at both "low" (normal) and "high" speed. These speeds are defined using programmable parameter settings in the frequency controller.

The motor gearboxes are supplied pre-programmed; all parameters of the frequency controller are preset to standard values. Using the optional manual console, these parameters can quickly and easily be adjusted to match operational needs.
