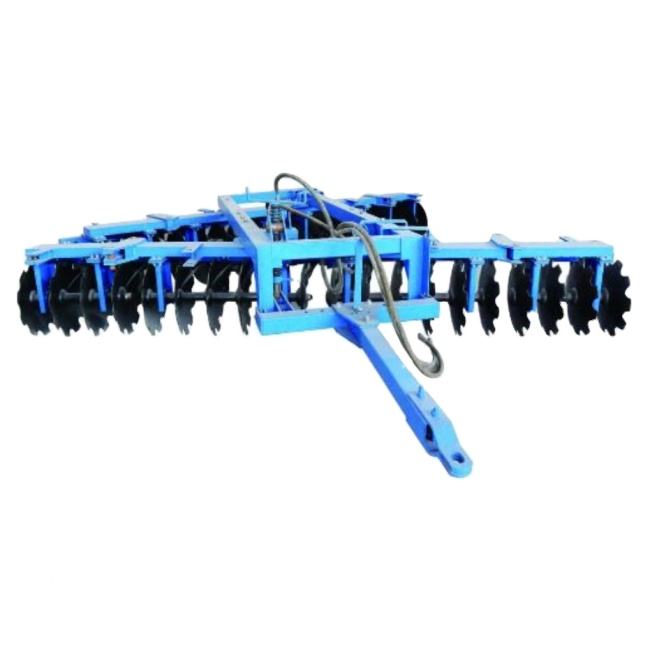

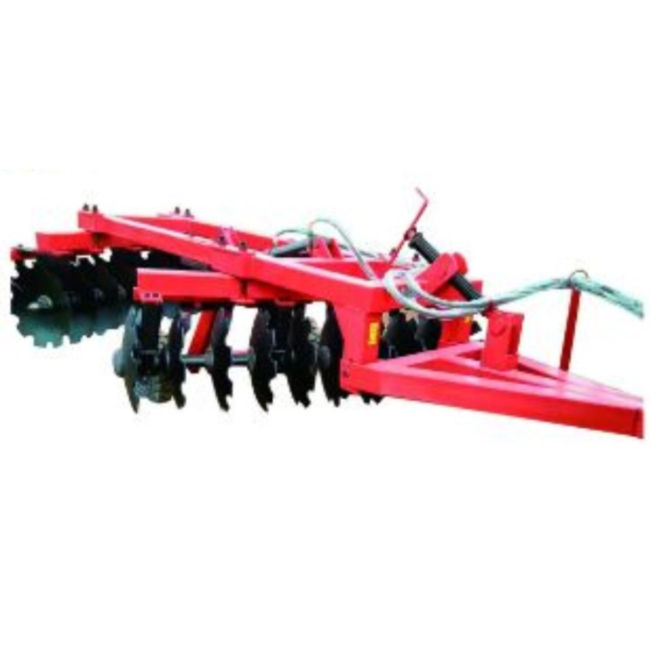

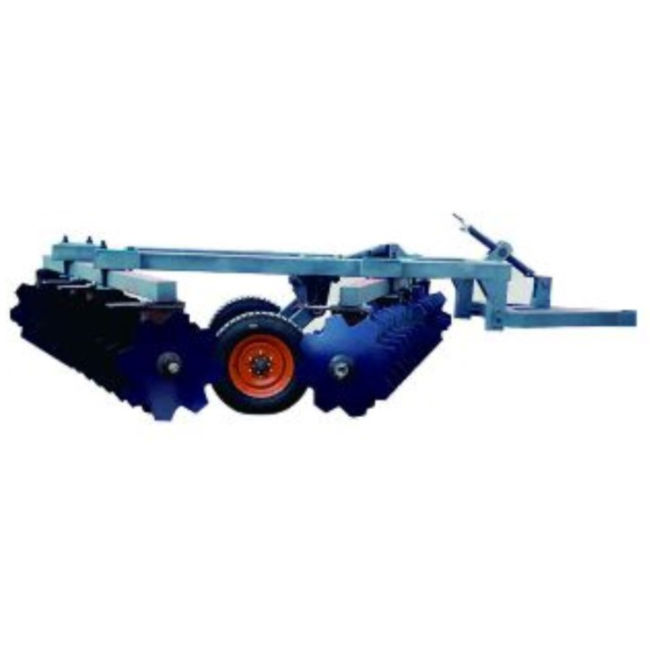

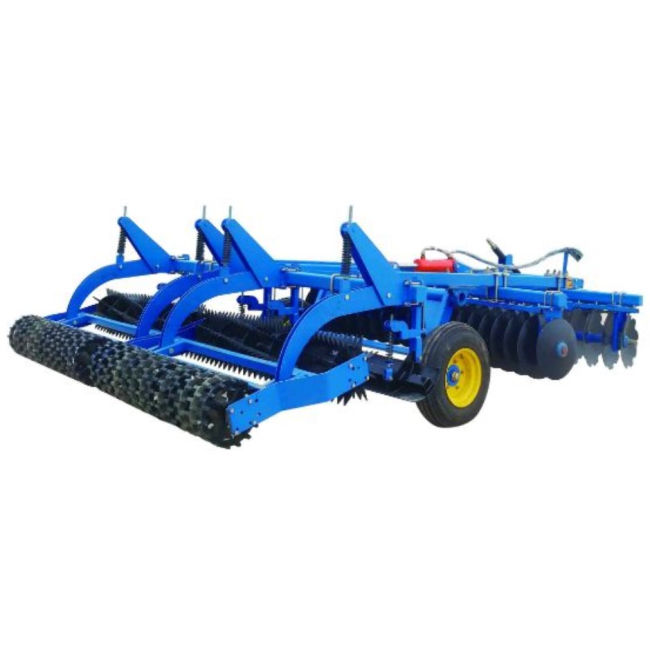

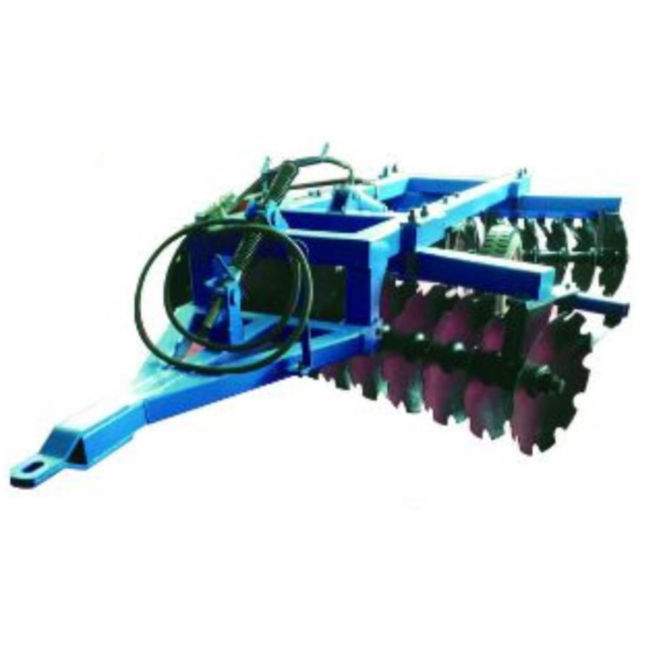

Farm Tractor Mounted Cultivator Trailed 1BZ Hydraulic Lifting off Set Heavy Duty Disc Harrow

Send Inquiry

Product Description

1BJ seres folding wings in hydraulic pressure offset middle harrow : it is used for crushing clods afterlage in sticky heavy fields . the plough up , the scarification before seeding and cleaning away stubble ofplants before tillage in the light soils . This harrow is featured by reasonable structure , high workingefficiency strong capability into the soil and scarification , horizontal hinge , wide width task and narrow width transportation.

Model	1BJ-2.0	1BQX-4.4	1BQX-4.8	1BQX-5.3	1BQX-6.0
Working Width(mm)	2000	4400	4800	5300	6000
Working Depth(mm)	160-180
No. of disc(pcs)	18	40	44	48	56
Diameter of Disc	560mm/22inch
Weight(kg)	860	1850	1950	2300	2600
Linkage	Hydraulic trailed
Matched Power(hp)	45-65	75-100	100-120	140-150	140-160
