Factory Sale Various FWA Series FWA12 Reducer Slewing Gearbox for Satellite Antenna

Factory Sale Various FWA Series FWA12 Reducer Slewing gearbox For Satellite AntennaSlewing Drive for Solar IndustryIn this article, we will explore the application of slewing drives for the solar industry. We will also examine the configurations of these drives and their maintenance requirements. Fi......

Send Inquiry

Product Description

Factory Sale Various FWA Series FWA12 Reducer Slewing gearbox For Satellite Antenna

Slewing Drive for Solar Industry
In this article, we will explore the application of slewing drives for the solar industry. We will also examine the configurations of these drives and their maintenance requirements. Finally, we will examine the demand-side dynamics of these drives. This article covers key market stakeholder expectations. It provides a comprehensive understanding of the benefits of slewing drives for the solar industry. Read on! Here, you will discover how to improve your solar plant's performance.
Applications of slewing drives in solar power plants
Slewing drives are used for a wide range of applications including small wind power stations, solar tracking systems, and
construction equipment. They are also widely used in marine applications such as truck cranes and man lifts. They are also used in space communications and satellite receivers. They are a highly versatile tool, and can be used for a variety of applications. In solar power plants, they can be used for a variety of purposes, including building a solar tracker, and even in satellite communications.
A slewing drive can also be used in concentrated solar power plants. The use of a dual axis slewing drive in a heliostat makes it easier to track the sun. The dual axis drive allows it to move like a gimbal, keeping the mirror pointed toward the sun. In a concentrated solar power plant, a large curved mirror follows the movement of the sun. This system uses a slewing drive to rotate the parabolic trough, concentrating the sun's rays into a narrow area.
Configurations of slewing drives
Slewing drives are available in a wide range of sizes and capacities. These drives are available in dual-axis configurations or one drive on each axis. They are also available in hourglass designs, which employ multiple gear teeth at the same time. They are also available with double-row slew bearings for heavier loads. There is a slewing drive to meet the needs of every industry.Slewing drives are versatile solutions that enable solar panels to track the sun. They are highly durable and can withstand large loads. They can also be used in wind turbines to turn them to face oncoming winds. Because slew drives can be installed in a small space, they are very versatile. They are used in wind turbines and aerial platforms. They are characterized by simple installation, ease of maintenance, and compact size.
Maintenance requirements of slewing drives
As more people across the globe are switching to renewable energy sources, the need for slewing drives has also increased. These devices are fitted in solar trackers and other equipment. Their regular lubrication and maintenance is important to extend their useful life. But if they fail, they can cost a lot of money to replace. Hence, it is necessary to invest in high-quality slewing drives that can withstand the high usage rates of solar equipment.
In addition, maintenance should also include the regular cleaning of the tooth surfaces. The bolt preload should be checked after 100 hours of operation and again after 500 hours. This preload should be sufficient. Regular monitoring and troubleshooting of slewing drives is essential. The slewing drive should never be submerged in water. To prevent any damage, it must be disassembled and checked frequently. In addition, slewing drives should not be exposed to excessive amounts of water, including ice and snow.
Demand-side dynamics of slewing drives
A slewing drive is a mechanical component that provides rotational motion and torque at low speeds. Its smooth operation and zero-backlash characteristics make it the ideal choice for applications requiring high precision and rotational movement. Its application scope extends to diverse fields that rely on similar functionality. The drives are generally made of phosphor bronze, steel or other materials with comparable wear properties. In addition, slewing drives are available with a range of customization options.
The report also provides detailed information about the major players in the market and their strategies. It also includes
profiles of key players in the industry, their financials, and their key product offerings. In December 2018, Bonfiglioli
announced that it had acquired O&K Antriebstechnik GmbH for US$ 19 million. Another major player, Kinematics, launched new solar-specific products at SPI in Anaheim. The company is estimated to increase its production of pinion drives and worm gear drives for solar applications.

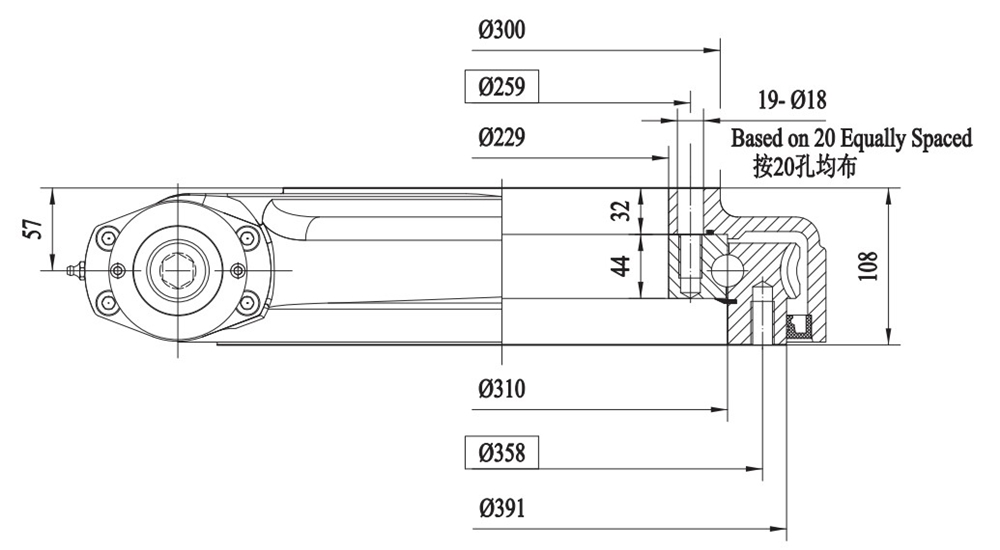

Front View

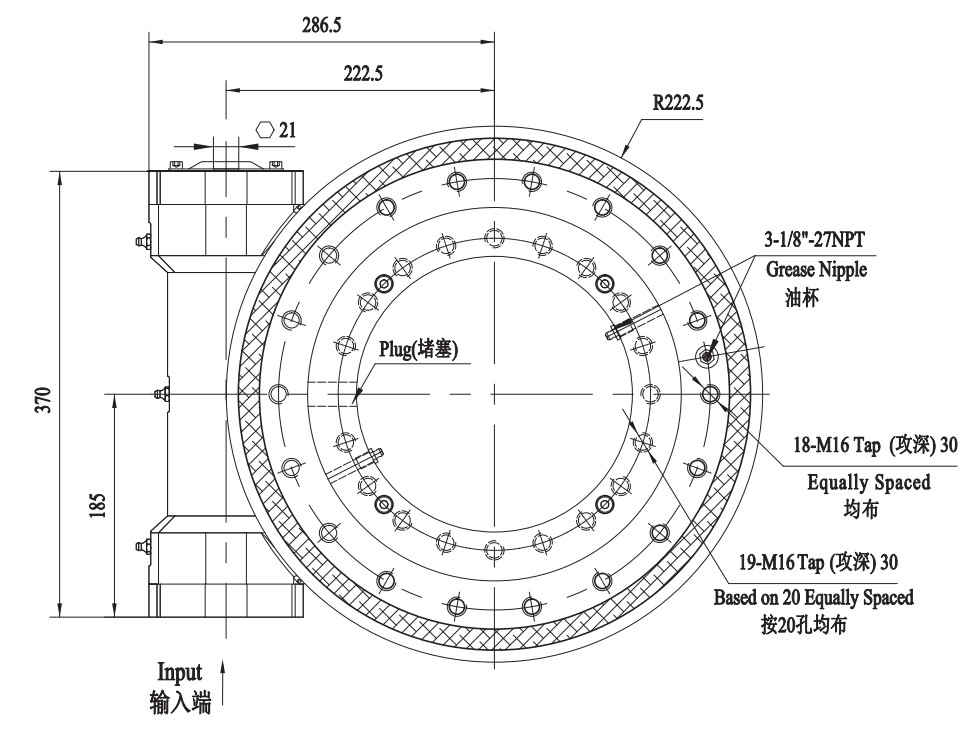

Top View

Note: customized design can be carried out according to customer requirements

Output torque	Lifting moment torque	Holding torque	Axial load	Radial load	Ratio	Backlash	Weight
9.5 KN.M	57 KN.M	44.3 KN.M	760 KN	280 KN	79:1	≤0.15°	67kg
7011 LBF.FT	41.5*10³ LBF.FT	32.7*10³ LBF.FT	171.1*10³ LBF	62.9*10³ LBF	79:1	≤0.15°	67kg

Application

Hzpt rotary drive is a gearbox designed to handle radial or axial loads with high rotational torque. In addition, the slewing bearing is located in the center of the transmission, which enables it to withstand high overhang or moment loads. As the offspring of "worm" screw, rotary drive is widely used in engineering machinery, manufacturing industry, equipment and many other applications requiring strength and accuracy. The physical characteristics of rotary drive make it a universal solution for many applications. In operation, the axial movement of the rotary drive or the movement about its axis interacts to generate a radial torque. This action occurs by meshing the groove of the horizontal screw with the teeth of the vertical gear. When rotating, the axial movement of the worm gear transmits the amplified torque to the radial gear. The number of threads on the horizontal screw and the number of interacting gears will determine the set speed ratio. Depending on the task at hand, the swing drive has a variety of configurations. These can be single axis or double axis rotation. The hourglass structure extends the ability of a single gear tooth to up to 11 to generate rotational torque by contacting the worm. Multiple gear teeth interact at the same time, making the equipment more efficient and generating more torque. Rotary drive is most suitable for applications where high torque can achieve precise positioning and rotation accuracy. This design enables the device to work smoothly and forcefully with minimal clearance. Due to the power and reliability generated by the rotary drive technology, the functions of this engineering technology are applicable to various types of equipment. For example, a special use of solar energy technology is to track the movement of the sun in a perfect time to produce the maximum energy output. Any work requiring high load capacity and reliable positioning may require swing drive engineering. Solid, stable and consistent rotary drives have a special position in manufacturing, construction and many other places. Based on hundreds of years of engineering concepts, the rotary drive operation equipment can be simple or complex, depending on the requirements. Adding hydraulic, pneumatic or electric motors to single, double or hourglass designs depends on the application. Other functions, such as opening or closing the chassis brake or self-locking function, are one of many options. The active application list of swing drive is very wide. Some industries need some form of rotary drive to improve their operational efficiency. Equipment used in mining, construction, metal processing and other applications requires uninterrupted strength and perfect accuracy, and rotary technology is used to ensure safety and accuracy. Powerful equipment such as high-altitude lift, rotary forklift, truck mounted crane, cable winch, fire truck, hydraulic machinery and public equipment depends on the safety and strength of the slewing drive device. Precision equipment, such as equipment, satellite antenna, solar tracker, printing press and telescope equipment, benefit from the sufficient precision provided by rotary drive. In order to determine which kind of rotary drive you need, you must specify the configuration of the rotary drive and the purpose of the equipment; Each unit will have a different specification. When defining the type and capacity of the swing drive, the following variables are calculated: *Transmission ratio*Accurate*Weight*Output*Tilting moment*Torque*Dynamic and static axial*Radial dynamics

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
