F Series Parallel Shaft Gearbox Helical Worm Gear Speed Reducer Electric Motor for Concrete Mixer

Raydafon Group's F Series Parallel Shaft Gearbox Helical Worm Gear Speed Reducer Electric Motor for Concrete Mixer delivers robust performance, reducing noise and energy use with durable materials. Ideal for construction professionals, it ensures smooth operation and reliability, enhancing efficiency and solving common mixer issues. Choose Raydafon for superior quality and innovation in gear reducers.

Send Inquiry

Product Description

F series new design hollow shaft helical gearbox small reduction gearbox transmission F series gearbox wind up gears

F series gear reducer is one kind of parallel shaft helical gear reducer , which consist of 2 or 3 stageshelical
gears (relate to gear ratio) in the same case . The hard tooth surface gear use the high quality alloy steel ,the
process of carburizing and quenching, grinding ,which give it follow characters :Stable transmission ,low noise
and temperature ,high loading ,long working lift . Wide application ,specialize in Metallurgy ,Sewage treatment,
Chemical Industry , Pharmacy ,Agriculture equipment and Oil industry

Specifications:

1) Output speed: 0.6~1,028r/min

2) Output torque: up to 21700N.m

3) Motor power: 0.12~200kW

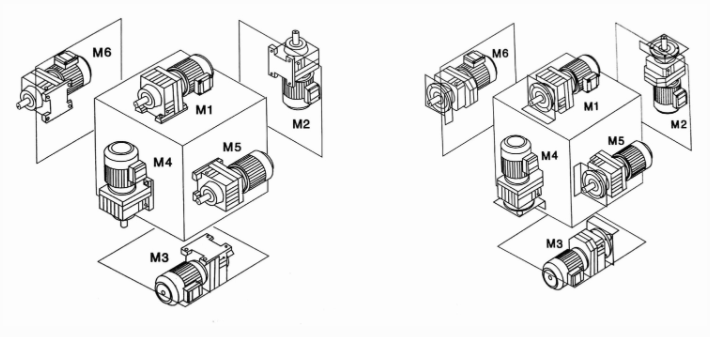

4) Mounted form: foot-mounted and flange-mounted mounting

Product Name	SLK Series Rigid Tooth helical bevel reducer
Gear Material	20CrMnTi
Case Material	HT250
Shaft Material	20CrMnTi
Gear Processing	Grinding finish by HOFLER Grinding Machines
Color	Customized
Noise Test	65~70dB
Efficiency	94%~98% (depends on the transmission stage)
Lubricating oil	Shell Omala synthetic oil or mineral oil , or similar brand
Heat treatment	tempering, cementiting, quenching,etc.
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, SKF,NSK and so on
Brand of oil seal	NAK or other brand
Temp. rise (MAX)	40 °
Temp. rise (Oil)(MAX)	50 °
Vibration	≤20µm

Parallel Shaft Helical Gear Worm Gearbox(F series)

1. Housing with tendon are made of cast iron to get high strenth and fine heat loss.

2. Gears made of forge steel and finished through gas carburising process and precise grinding to achieve
High precision and high efficiency.

3. Carburized gears are durable and highly accurate.

4. Flange-mounted with hollow shaft, foot-mounted with hollow shaft, and optional torque arm and other special accessories.

5. Large strength, long service life.

6. Large output torque, smooth startup, high efficiency.
