China Supplier Radial Piston Pneumatic Motorradial Piston Motor 600ccradial Piston Motor Valve

Discover Raydafon Group's China Supplier Radial Piston Pneumatic Motor, a 600cc powerhouse delivering unmatched efficiency and reliability for industrial applications. Engineered with precision valves, it offers superior performance, durability, and quiet operation, ideal for professionals seeking robust pneumatic solutions. Experience enhanced productivity and seamless integration—trust Raydafon for innovative, high-quality motors that stand out in the market.

Send Inquiry

Product Description

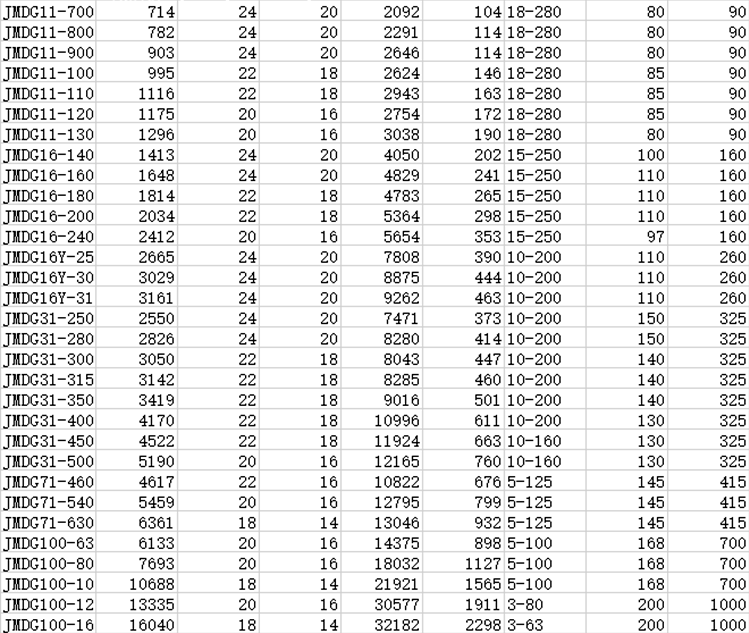

TECHNICAL DATA

TYPE	Displacement (ml/r)	Pressure (Mpa)		Torque(N.m)		Speed Range (r/min)	Max.cont. Power (kw)	Weight (kg)
		Pressure (Mpa)		(N.m) Rate torque	N.m/Mpa Theoric Torque
		peak pressure	cont.pressure	(N.m) Rate torque	N.m/Mpa Theoric Torque
JMDG1-50	54	24	20	164	8	35-500	6	23
JMDG1-63	64	24	20	188	9	35-500	7	23
JMDG1-80	78	22	18	206	11	35-500	9	23
JMDG1-100	96	22	18	253	14	35-500	11	23
JMDG1-125	126	22	18	332	18	35-500	15	23
JMDG1-160	159	20	16	373	23	35-500	16	23
JMDG2-100	113	24	20	331	17	30-400	11	28
JMDG2-150	157	24	20	460	23	30-400	15	28
JMDG2-175	176	22	18	464	26	30-400	17	28
JMDG2-200	201	22	18	530	29	30-400	19	28
JMDG2-250	254	20	16	595	37	30-400	21	28
JMDG2-280	271	20	16	635	39	30-400	23	28
JMDG3-200	199	22	18	525	29	30-350	25	36
JMDG3-250	254	22	18	670	37	30-350	32	36
JMDG3-300	289	22	18	762	42	30-350	32	36
JMDG3-350	351	22	18	926	51	30-350	32	36
JMDG3-400	397	20	16	931	58	30-350	32	36
JMDG3-450	462	20	16	1083	68	30-350	32	36
JMDG6-400	397	22	18	1047	58	25-320	46	65
JMDG6-450	452	22	18	1192	66	25-320	53	65
JMDG6-500	491	22	18	1295	72	25-320	53	65
JMDG6-600	594	22	18	1566	87	25-320	63	65
JMDG6-700	683	22	18	1801	100	25-320	63	65
JMDG6-750	754	20	16	1767	110	25-320	63	65
JMDG6-800	799	20	16	1873	117	25-320	63	65
JMDG8-600	617	22	18	1627	90	20-280	80	71
JMDG8-700	710	22	18	1872	104	20-280	80	71
JMDG8-800	810	22	18	2136	118	20-280	85	71
JMDG8-900	889	20	16	2084	130	20-280	85	71
JMDG8-1000	1000	20	16	2344	146	20-280	85	71
JMDG8Y-700	710	24	20	2080	101	20-280	85	75
JMDG8Y-800	810	24	20	2373	116	20-280	85	75
JMDG8Y-900	889	24	20	2604	127	20-280	85	75
JMDG8Y-1000	1000	24	20	2930	143	20-280	85	75
JMDG8Y-1100	1117	22	18	2945	160	20-280	90	75
JMDG8Y-1200	1178	22	18	3106	168	20-280	90	75

China Supplier Radial Piston Pneumatic Motorradial Piston Motor 600ccradial Piston Motor Valve

Intermittent operation the permssible values may occur for max. 10% of every minute

Peak load: the permissible values may occur for max.1% of every minute

China Supplier Radial Piston Pneumatic Motorradial Piston Motor 600ccradial Piston Motor Valve
