Cast Iron SPB Belt 8 Grooves air Compressor v Belt Motor Pulley

Cast Iron SPB belt 8 grooves air compressor v belt motor pulley Product DescriptionCPT Pulley Features: CPT has 23 years' experience in producing power transmission grooved v belt pulleys (U groove pulley), timing pulleys, poly-v belt pulleys, adjustable pulleys, etc. V belt pulley material inc......

Send Inquiry

Product Description

Cast Iron SPB belt 8 grooves air compressor v belt motor pulley

Product Description

CPT Pulley Features:

CPT has 23 years' experience in producing power transmission grooved v belt pulleys (U groove pulley), timing pulleys, poly-v belt pulleys, adjustable pulleys, etc.
V belt pulley material includes: steel, cast iron, ductile cast iron, alloy, etc.
Pulleys' bore have prebore, finished bore, pilot bore, taper bore.
Pulley Type includes: solid, web, spoke
Pulley grooves from single groove, double groove to 12 grooves.
Pulley outside diameter dimensions ranges from 10mm to 1900mm.
Belt section includes: SPA, SPB, SPC, SPZ metric pulleys

A, B, C, D, TA, TB, TC, 3V, 5V, 8V inch pulleys

Usage: v belt pulleys can be used on small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on.

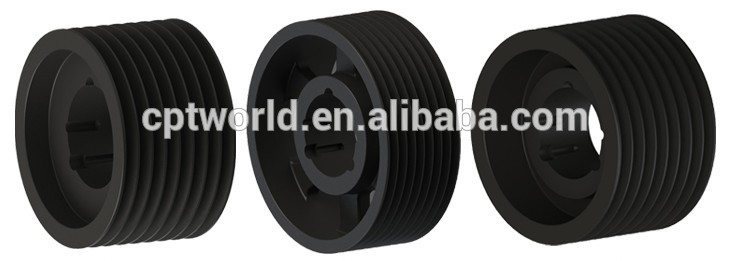

Pulley Images

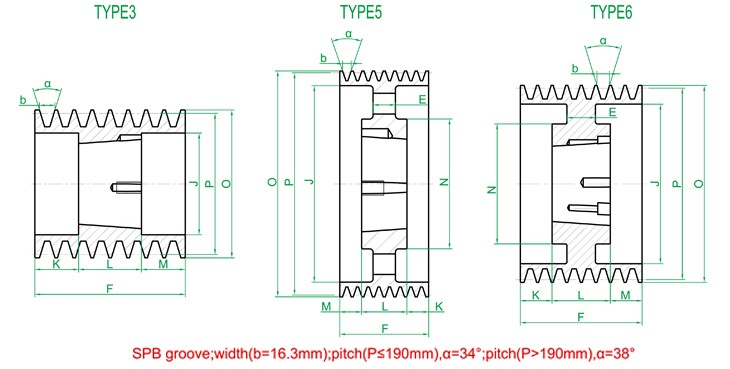

Pulley Type Drawing & Dimension catalogue

Cast Iron SPB Belt 8 Grooves air Compressor v Belt Motor Pulley

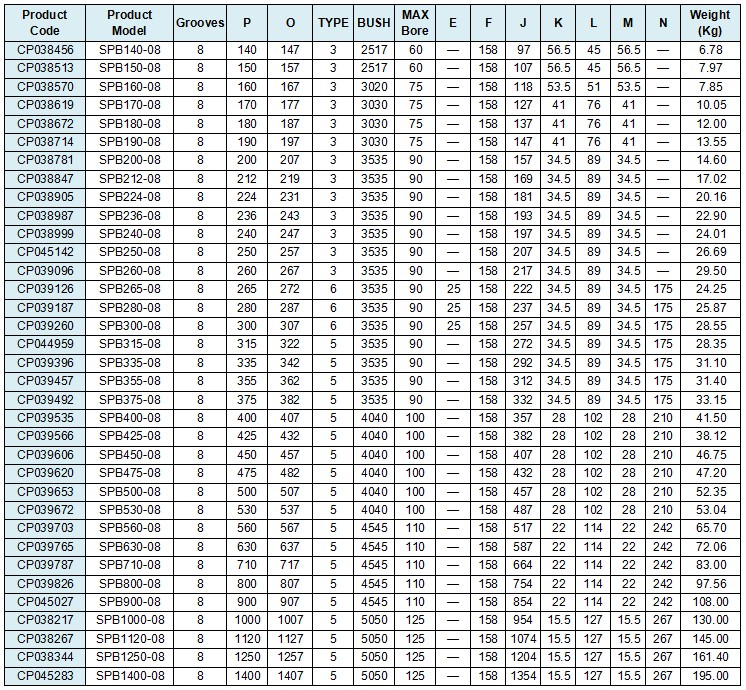

SPB-08 air compressor v belt pulley Dimension

Product Name:V Belt Pulley

Belt Section:SPB

Grooves:8

Cast Iron SPB Belt 8 Grooves air Compressor v Belt Motor Pulley

Equipped with Bush:

European standard bush
	Bush No	Bore Range (mm)
	2517	20,22,24,25,28,30,32,35,38,40,42,45,48,50,55,60
	3020	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75
	3030	25,28,30,32,35,38,40,42,45,48,50,55,60,65,70,75

	3525	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	3535	35,38,40,42,45,48,50,55,60,65,70,75,80,85,90
	4030	40,42,45,50,60,65,70,75,80,85,90,95,100
	4040	40,42,45,50,60,65,70,75,80,85,90,95,100
	4535	55,60,65,70,75,80,85,90,95,100,105,110
	4545	55,60,65,70,75,80,85,90,95,100,105,110
	5050	60,65,70,75,80,85,90,95,100,105,110,115,120,125

Package&Shipping

Cast Iron SPB Belt 8 Grooves air Compressor v Belt Motor Pulley

Other Products

Cast Iron SPB Belt 8 Grooves air Compressor v Belt Motor Pulley

Please contact us or go to homepage for more product information.

Company Information

OEM service

Strong OEM ability will meet all your special needs!

Our customers

Our main customers are all world famous brands, like: ABB, s, Sati and a, etc.
