Brand New Electric Motor for Grinding Spindle Made in China
Motor spindle seriesThe main products can be divided to 5 styte with more than 10 series , the speed from 600r / min To 1 10 000 / min . the powerfrom0.05KW to 40KW . the spindle bearing according to different speed using high precsion and speed bearing , or ceramicbearing , or maglev bearing . The ......
Motor spindle series
The main products can be divided to 5 styte with more than 10 series , the speed from 600r / min To 1 10 000 / min . the powerfrom0.05KW to 40KW . the spindle bearing according to different speed using high precsion and speed bearing , or ceramicbearing , or maglev bearing . The cooling way using oil , oil fog , oil gas , We also can design it for youn requirement .
Dimensions
For more details, please click here to contact us!

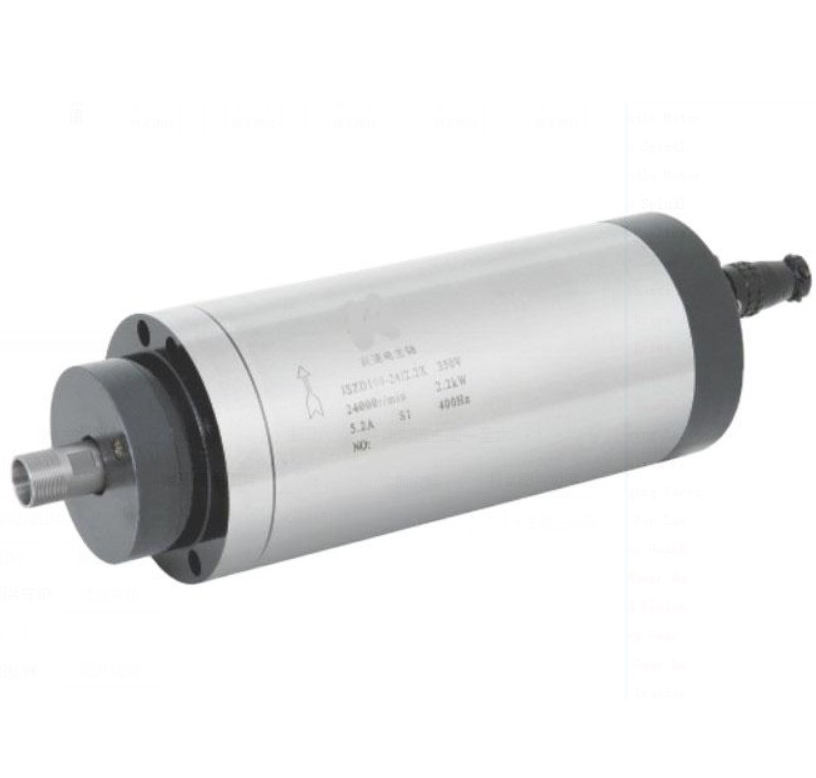

The electric spindle for grinding is an electric spindle product matched with modern grinding machines. It is mainly used for inner hole grinding machines, and can also be designed for cylindrical grinding machines and end face grinding machines according to user requirements. It has high speed, accuracy and rigidity, high processing efficiency, low roughness and good precision.
Advantages of electric spindle
* The spindle and motor are integrated, with compact structure, simple installation, convenience and space saving;
* No intermediate transmission link, high efficiency, low vibration, low noise, stable movement, long service life of main shaft bearing at the same speed;
* Easy to achieve high speed, high accuracy and high dynamic and static stability ;
* Using modern control technology and motor optimization design, it can meet the requirements of different working conditions and loads.
Speed
24000rpm
Voltage
220V
Current
8.3A
Frequency
400Hz
Power
4kw
Warranty
Bearings for half year,other parts for one year
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
