Attractive Price New Type 86435 Left/Right Trailer Brake 10 Electric Brake
Electric brakes are currently a valuable alternative to brake drums. Electric brakes are the most common braking system installed on trailers. Electronic brakes require the installation of a controller on the vehicle that allows for the correct transmission of power to ensure braking occurs. There i......
Electric brakes are currently a valuable alternative to brake drums. Electric brakes are the most common braking system installed on trailers. Electronic brakes require the installation of a controller on the vehicle that allows for the correct transmission of power to ensure braking occurs. There is a magnet on the inner side of the back panel, with 2 wires on top that can be directly wrapped in the trailer wires. When energized, it magnetizes the brake magnet, which is attracted to the surface of the brake drum. When it comes into contact with the area, friction causes the brake drum to rotate, moving the actuating arm and pushing the brake shoes out of the brake drum, causing the wheels to stop rotating. There is a special brake pad material on the brake shoes that can resist the heat generated by friction. The electric brake is stable and free from jerks, without any impact or jerk related to the disconnection between the electronic brake and the normal hydraulic brake. Compared with general mechanical friction braking, electric braking is also very fast.
Universal electric trailer brake - Universal 10 "x 2-1/4" trailer electric brake assembly suitable for 3500 pound Al ko, dexter, lippert, rockwell, and premium trailer axles, including free hardware
Size -10 "diameter x 2-1/4" width, 4 "bolt circle, center hole diameter 3"
Including hardware -4 hole installation. Equipped with mounting nuts and lock washers
Including brake - electric trailer brake assembly 1 right side
Capacity -3500 pounds axle

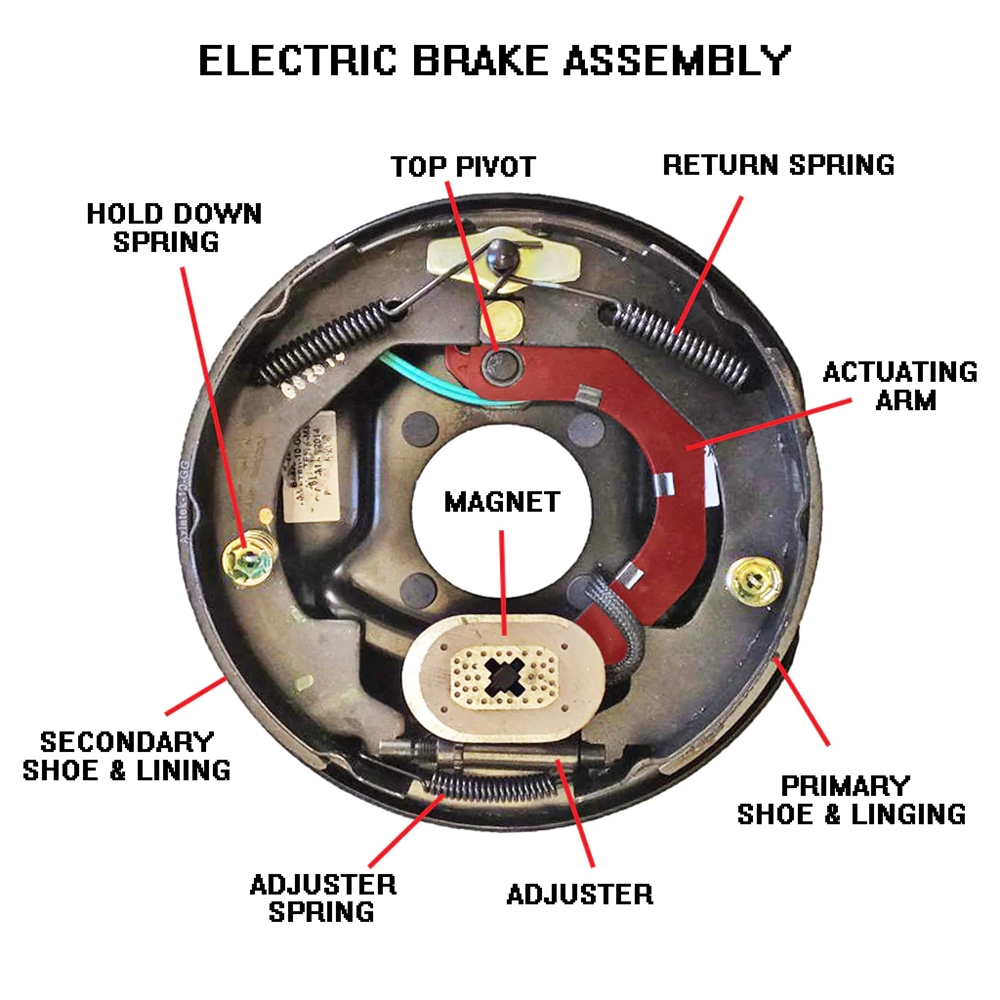

How to Identify Electric Brakes
Right or left: When the magnet is located at the bottom of the brake, the actuating arm will start at the "top pivot" and bend downwards towards the "magnet" direction. The left bending arm is a combination of the left side, while the right bending arm is a combination of the right side.
Size: Measure the diameter of the installed shoe component at the front center, and then measure the width of the shoe lining. This will give you the brake size.
Flange installation: Determine the number of mounting bolts on the brake by calculating the mounting holes or studs on the brake assembly.
Replacement of components: Sometimes key components can be replaced to restore brake function. In some cases, replacing the entire brake assembly may be cost-effective. The following is a list of common replaceable components.
(1) Magnet
(2) Return spring
(2) Compression spring
(2) Show primary and secondary linings
(1) Regulator
(1) Adjuster spring
For more details, please click here to contact us!
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
