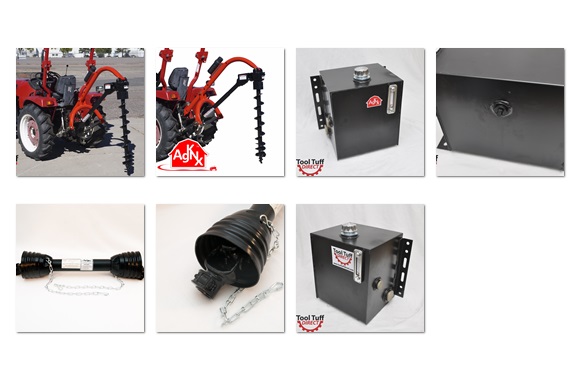

HZPT ATTACHMENTS Earth Auger is a kind of digging hole machine. It can be mounted to all common hydraulic excavators as well as mini excavator and other carrier like skid steer loader, backhoe loader, telescopic handler, wheel loader and other machinery.Our auger drive can installed with earth drill, stump planner, mixer bowl for different uses.
Application:
Specification:
| Model | Oil Folw | Max Torque | Pressure | Rotary Speed | Carrier | Oil Hose | Drill Dia. | |||
| gal./min | I/min | Lbf·Ft | N·M | Psi | Bar | Rpm | T | Inch | mm | |
| EP2000 | 6-14 | 23-53 | 2537 | 1871 | 3000 | 205 | 40-92 | 1-2.5 | 1/2 | 100-400 |
| EP2500 | 8-16 | 30-61 | 3297 | 2432 | 3000 | 205 | 40-82 | 1.5-3 | 1/2 | 100-500 |
| EP3000 | 8-16 | 30-61 | 3900 | 2877 | 3500 | 240 | 40-81 | 2-3.5 | 1/2 | 100-600 |
| EP3500 | 8-18 | 30-68 | 4900 | 3614 | 3500 | 240 | 32-72 | 2.5-4.5 | 1/2 | 100-750 |
| EP4500 | 10-20 | 38-76 | 5719 | 4218 | 3500 | 240 | 32-64 | 3-5 | 1/2 | 100-900 |
| EP5000 | 10-20 | 38-76 | 6855 | 5056 | 3500 | 240 | 29-58 | 4.5-7 | 1/2 | 150-600 |
| EP5500 | 12-22 | 45-83 | 8012 | 5910 | 3500 | 240 | 28-50 | 5-7 | 1/2 | 150-750 |
| EP6000 | 12-28 | 45-106 | 8338 | 6150 | 3500 | 240 | 34-80 | 6-8 | 3/4 | 150-900 |
| EP7000 | 16-32 | 61-121 | 9397 | 6931 | 3500 | 240 | 37-72 | 7-10 | 3/4 | 150-900 |
| EP8000 | 16-36 | 61-136 | 10911 | 8048 | 3500 | 240 | 29-64 | 8-12 | 3/4 | 150-900 |
| EP10000 | 18-36 | 70-136 | 14612 | 10778 | 3500 | 240 | 26-45 | 10-13 | 3/4 | 150-900 |
| EP12000 | 21-37 | 80-140 | 16236 | 11976 | 3500 | 240 | 22-43 | 13-17 | 1 | 150-900 |
| EP15000 | 21-40 | 80-151 | 20399 | 15046 | 3500 | 240 | 20-39 | 13-17 | 1 | 150-1200 |
| EP20000 | 21-45 | 80-170 | 25812 | 19039 | 3500 | 240 | 17-34 | 13-20 | 1 | 150-1200 |
| EP25000 | 24-48 | 90-180 | 33825 | 24949 | 3500 | 240 | 16-30 | 15-23 | 1 | 150-1200 |
| EP50000 | 26-74 | 100-280 | 68052 | 50195 | 400 | 280 | 11-30 | 21-50 | 1 | 300-2400 |
| Model |
Drill Depth in Soil Texture (Reference Data)/M |
||
| Soft | Medium |
Hard
|
|
| EP2000 | 1.2-2.2 | 1.1-2 | 1-1.8 |
| EP2500 | 1.5-2.5 | 1.4-2.3 | 1.3-2.1 |
| EP3000 | 1.8-3 | 1.6-2.7 | 1.4-2.4 |
| EP3500 | 1.8-3 | 1.6-2.7 | 1.4-2.4 |
| EP4500 | 1.5-4 | 1.4-3.6 | 1.3-3.2 |
| EP5000 | 3-4 | 3.7-3.6 | 2.4-3.2 |
| EP5500 | 2.5-5 | 2.3-4.5 | 2.1-4.1 |
| EP6000 | 3-6 | 2.7-5.4 | 2.4-4.9 |
| EP7000 | 4.5-7.5 | 4.1-6.8 | 3.7-6.1 |
| EP8000 | 4.5-7.5 | 4.1-6.8 | 3.7-6.1 |
| EP10000 | 4.5-7.5 | 4.1-6.8 | 3.7-6.1 |
| EP12000 | 4.5-7.5 | 4.1-6.8 | 3.7-6.1 |
| EP15000 | 4.5-7.5 | 4.1-6.8 | 3.7-6.1 |
| EP20000 | 5.5-8.5 | 5-7.7 | 4.5-7 |
| EP25000 | 6-9 | 5.5-8 | 5-7.5 |
| EP50000 | 4.8-12 | 4.3-11 | 4-10 |
How to choose the right model?
1.The weight of your excavator/tractor/ Backhoe/Skid Steer loader?
|
Model of Excavator |
Weight of excavator |
Model of Earth Auger |
|
Cat226B |
2.6T |
EP2500,EP3000 |
|
Cat279C |
4.5T |
EP5500,EP5000 |
|
PC100 |
10T |
EP8000 |
|
PC320 |
23.7T |
EP20000,EP25000 |
2.Diameter and the Depth of hole to be drilled?
|
Diameter |
Depth |
|
From 100mm to 1200mm |
We can Provide the extension shaft |
3.Ground type to be drilled?
|
Earth Teeth and Pilot |
Tungsten Teeth and Pilot |
Rock Teeth and Pilot |
|
Soil,Clay |
Sandy soil,Gravel Soil |
Rock and Pitch |
Aslo, these details just help you know our products quickly. Please feel free to contact with me ,that's my duty and honor to help you find the appropriate product
Auger Drive:
1. Rugged shell (Q345B)
2. Professional modeling design
3. High-performance motor (E.T.N, USA)
4. High-precision planetary gear
5. 18 months' Warranty

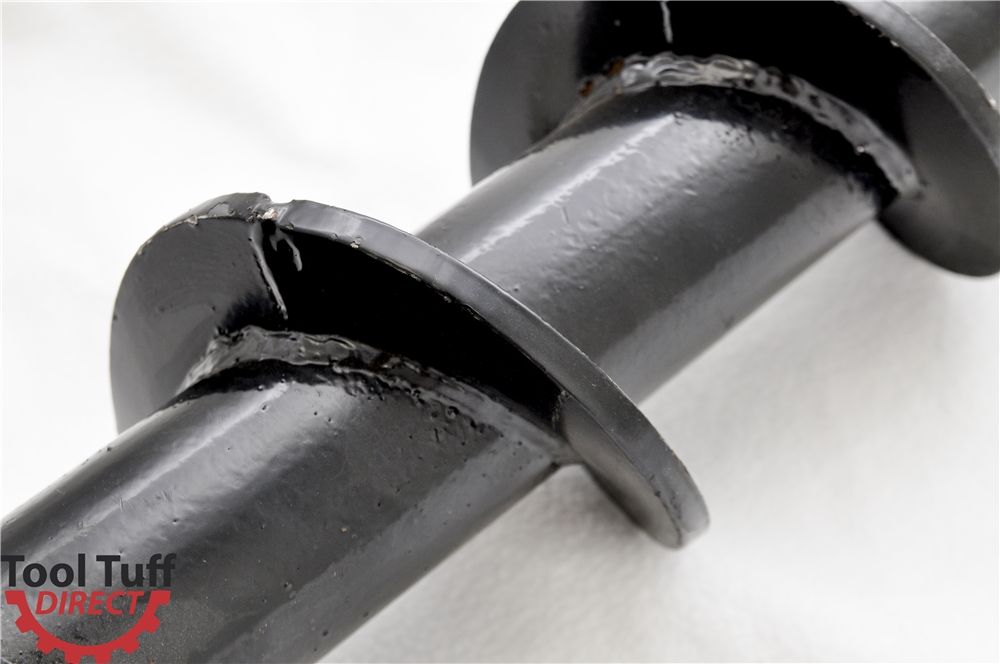

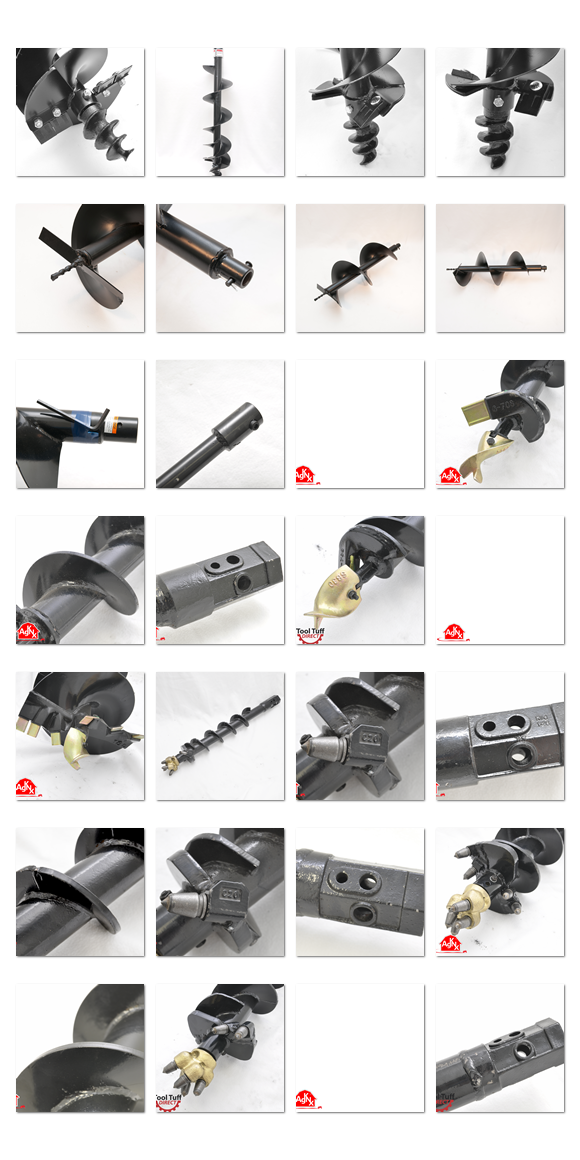

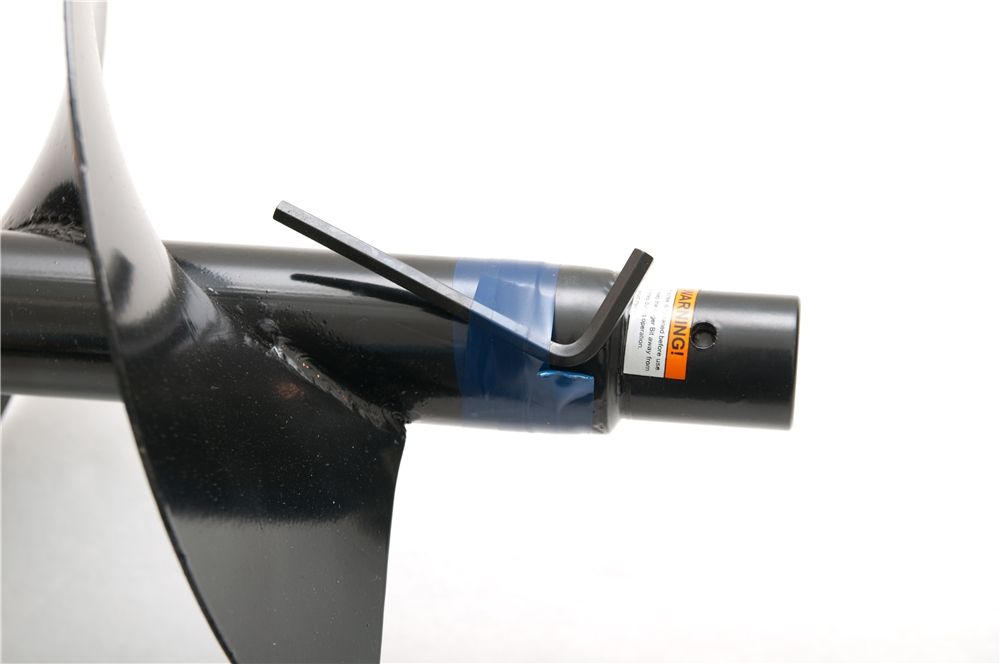

Auger Drill:
Durable material, Weld solid welding.
We can also provide extension shaft for deeper depth.

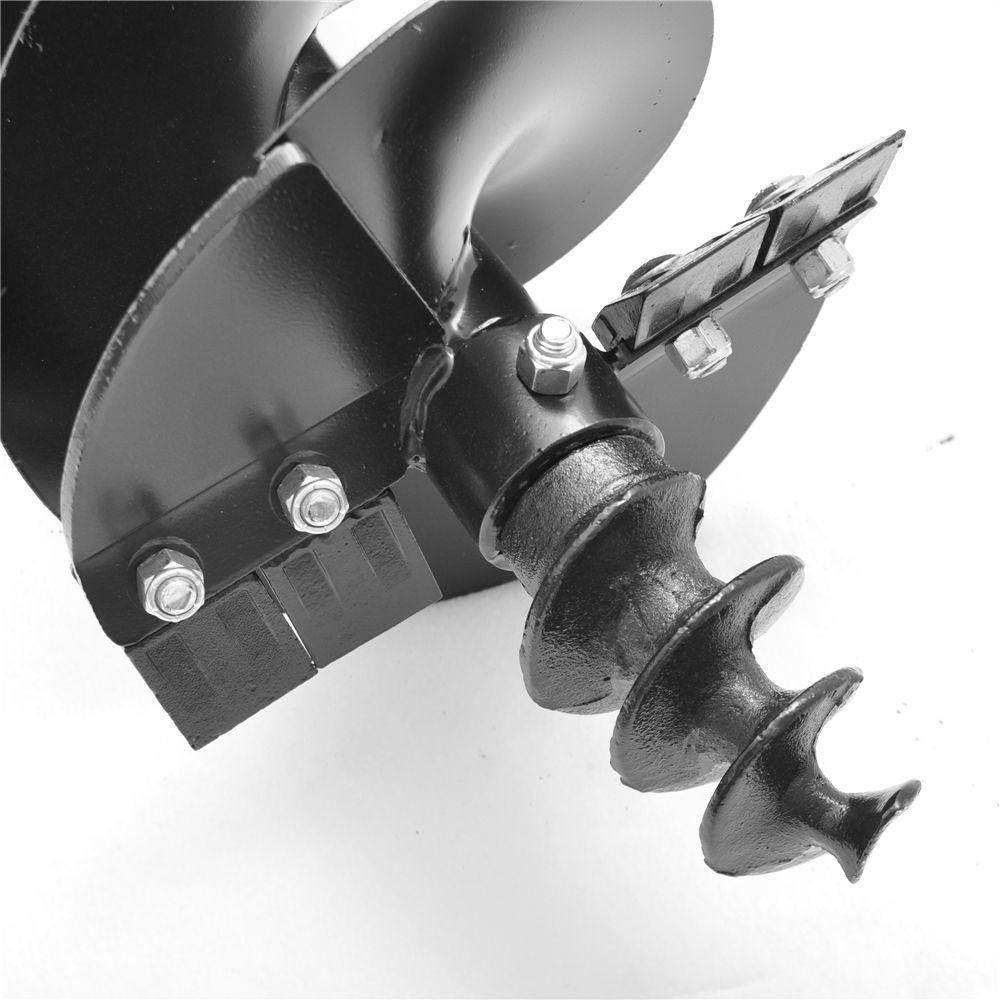

Auger Teeth and Pilot:
Rock Type: It fit to rock, pitch or a lot of gravel land. Harder than tungsten type.
Tusten Type: It fit to clay, snady land or a little gravel. Digging the soil land very easily. (Teeth Locking System: keep the teeth never fall down. Patent Number: 20425163.4)
Our Auger drive can connect to other attachments for different usage.
1.Stump Planner:
Removal of tree stumps is a job which, at best, is noisy, messy and time consuming. Traditional methods of removal shower chippings over a wide area making clean up a time-consuming exercise.
With the HZPT Stump Planner tree stumps are removed effortlessly and quietly and clean up time is reduced significantly.
The HZPT Stump Planner is the quick and easy attachments to any earth drill for the effective, clean removal of tree stumps of any size.
|
Model |
Unit | RSP250 | RSP350 |
| Carrier Weight | T | 1-5 | 4.5-8 |
| Diameter | mm | 250 | 350 |
| Length | mm | 635 | 675 |
| Hub Options | mm | 65 | 75 |
| Unit Weight | Kg | 25 | 33 |
Mixer Bowls:
| Model | Unit | RCM140 | RCM180 |
| Carrier Weight | T | 1-3 | 3-7 |
| Bowl Capacity | L | 140 | 180 |
| Unit Depth | mm | 600 | 690 |
| Unit Diameter | mm | 675 | 724 |
| Unit Weight | Kg | 28 | 33 |
Carton package & wooden package
PS:Wooden Package fits for heavy items, we choose different packaging as per
your requirments
