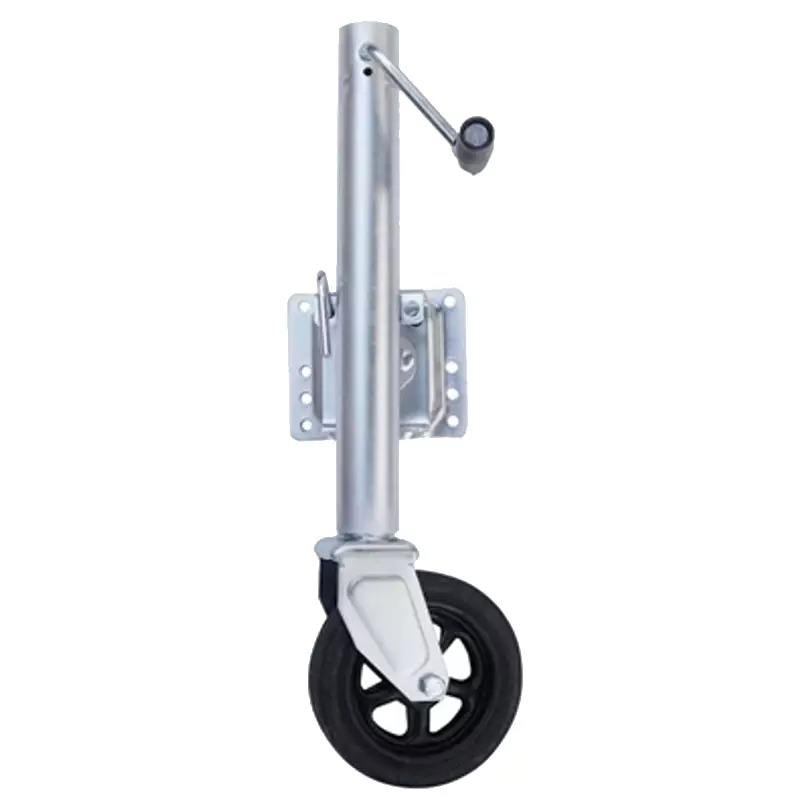

1000lbs JW1602 Jockey Wheel 6 Solid Wheel Trailer Jack With Hardware

Send Inquiry

Product Description

1000 pound trailer jack We produce reliable heavy-duty products such as freight trucks, multi-purpose drilling rigs (for pickup trucks), and livestock trailers. This jack is certified to comply with ASABE-S485 (American Society of Agricultural and Biological Engineers) standards and is recognized as a world-class standard in terms of performance for telescopic (screw) jack models. When searching for trailer jacks, please ensure that you have a jack that meets your requirements. Take our jack as an example. Circular jacks support light loads for coupling, separating, and fixing supports. The square and heavy models are very suitable for mixing medium and heavy steel bars, coupling and decoupling, and storing trailers. Rack and pinion jacks are the best choice for improving stability and also support trailers with heavier traction frames.

Measurement method for trailer jack In summary, you need to understand the three most important characteristics of a marine trailer jack: 1) Its weight capacity 2) Its bracket size 3) Its lifting height. Please remember that the jack does not need to lift the entire trailer, only the trailer tongue, which accounts for approximately 10-15% of the total weight. Standard jack brackets should be suitable for most frames, but if the frame height is greater than 3 inches or the depth is greater than 5 inches, a jack with adjustable brackets is required. As for the lifting height, marine trailer jacks typically use a combination of legs and inner tube extensions to generate total lift. Please remember that these three attributes will help you choose the best jack for your boat trailer.

Load	1000lbs
Lifting height	10"
Pipe Size	51mm/44mm
thickness of pipe	2mm
Wheel	6" solid wheel
Surface	zinc plated

Proper use of trailers Before each departure, the components should be carefully inspected. For trailers using a traction frame, check the traction hook, traction frame, connecting pins, nuts, lifting rings, buffer springs, locking pins, etc; For trailers using a turntable, it is necessary to check the center bolt of the turntable, as well as the safety chain, hub screws, steel plate springs and bolts, carriage, etc., to see if they are loose, bent, or broken; Check the brake connecting pipes, wires, and other devices, such as protective nets, signal lights, etc., to see if they are complete, if the connections are secure, and if the accompanying tools and items are ready. 2. The loaded goods should be placed evenly and no additional or extended carriages are allowed. Overloading is not allowed. For long-term loading and parking, the carriage should be padded to prevent tire deformation. 3. When starting, the clutch should engage slowly and steadily. When the trailer hook is tightened and the weight of the trailer is felt, the clutch pedal should be released when the tires begin to roll; When shifting gears, strive for stability and agility; When shifting gears, if the trailer collides with the main vehicle, it should be shifted into gear and slid for a certain distance, and then shifted forward as the speed of the front and rear vehicles gradually coincides. When driving, it is usually not recommended to slide out of gear. When encountering steep slopes or downhill turns, it is absolutely prohibited to coast out of gear. When going downhill, according to the length and gradient of the ramp, select the appropriate low gear in advance, and control the speed with the resistance of the engine. When braking is required, the brake pedal must be slowly pressed to avoid emergency braking and prevent tire wear or tread peeling. The braking time should not be too long to prevent braking heating and reduce braking efficiency.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.

Hot Tags: 1000lbs Jw1602 Jockey Wheel 6 Solid Wheel Trailer Jack With Hardware - Buy Trailer Jack,Jw1602 Jockey Wheel 6 Solid Wheel Trailer Jack,1000lbs Jw1602 Jockey Wheel 6 Solid Wheel Trailer Jack With Hardware Product on Raydafon
