WT-H430 Horizontal Micro-positioning Table Machine CNC Machining Center Parts CNC Turntable Rotary Table

Horizontal micro-positioning tableSuitable for horizontal processing machines, hydraulic lockHeavy-duty cutting, simultaneous machiningProduct ModelWT-H430Servo motorβ22i HF-204Panel Size430×430Total Reduction Ratio1:120Disk ApertureΦ80mmMaximum Rotation Speed Of Worktable33.3 r.p.mFlat Overall......

Send Inquiry

Product Description

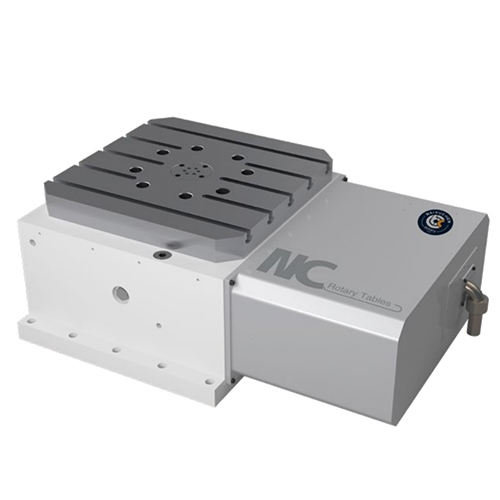

Horizontal micro-positioning table

Suitable for horizontal processing machines, hydraulic lock

Heavy-duty cutting, simultaneous machining

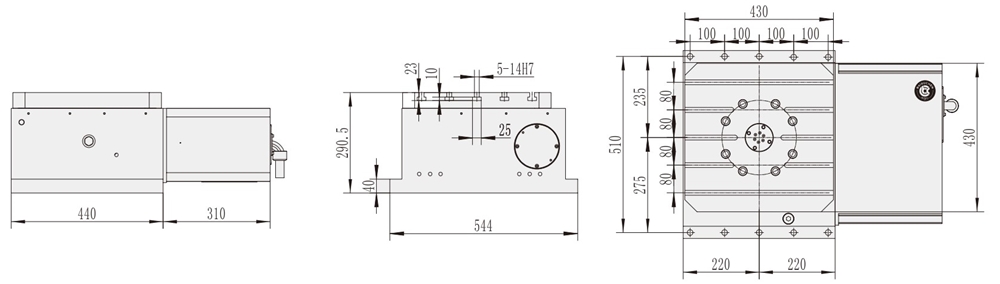

Product Model	WT-H430	Servo motor	β22i HF-204
Panel Size	430×430	Total Reduction Ratio	1:120
Disk Aperture	Φ80mm	Maximum Rotation Speed Of Worktable	33.3 r.p.m
Flat Overall Height	290.5mm	Minimum Setting Angle	0.001°deg
Disk T-Slot	12H8mm	Segmentation Accuracy	20″sec
Positioning Button	14H7mm	Repeat Positioning Accuracy	4''sec
Center Height	255mm	Locking Method	oil pressure 35Kg/cm²
Net Weight (about)	300Kg	Allowable Cutting Force	200Kg.m
Max.load Horizontal	500KG

Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
