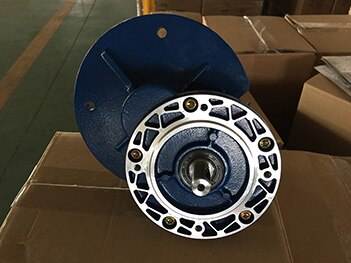

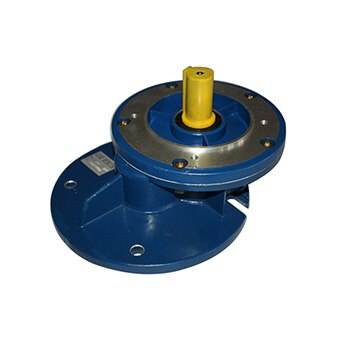

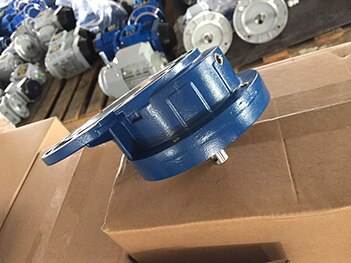

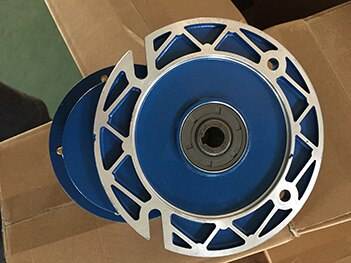

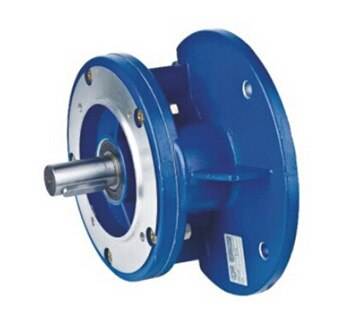

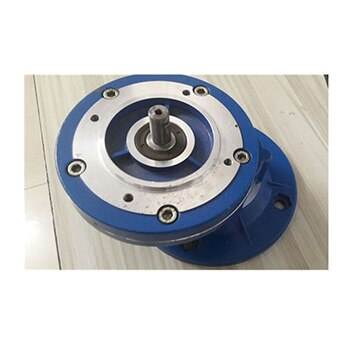

WP stepper motor worm gear/worm gear speed reducer/AC worm gearbox
1.Widely used in light industry, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric
running castings
2. The housing is of strong hardness, compact structure
3. Stable transmission, low vibration, large ratio, canbe matched with various machines
1.Housing:iron cast
2. low noise(<50DB)
3.Model:WPA 40-250,Ratio:10 to 60
4.Efficient and safe operating
5.ISO9001,Factory price,OEM
6.Technology Data:
| Type: | gearbox WPA |
| Model: | WPA 40-250 |
| Ratio: | 1:10,15,20,25,30,40,50,60 |
| Color: | Blue/Silver Or On Customer Request |
| Material: | Housing: Die-Cast Iron cast |
| Worm Gear-Copper-10-3# | |
| Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing: | Carton and Wooden Case |
| Bearing: | C&U Bearing |
| Seal: | NAK SKF |
| Warranty: | 1 Year |
| Input Power: | 0.06KW,0.09KW |
| Usages: | Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing, Woodworking,Glass. |
IEC Flange: | 56B14, 63B14, 63B5, 63B5, 71B14,80B14 AND SO ON |
| Lubricant: | Synthetic&Mineral |
Packing Details : Standard carton/Pallet/Standard wooden case
Delivery Details : 15-30 working days upon payment
