SQ..RS Series Spherical Plain Bearing Ball Joint Rod End Bearing SQ5RS SQ22RS

SQ..RS Rod End Bearing--Ball joint housing with right or left hand thread--Ball joint housing made of zinc base alloy--With rubber dust seal * Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required * Features: The rod end bearing i......

Send Inquiry

Product Description

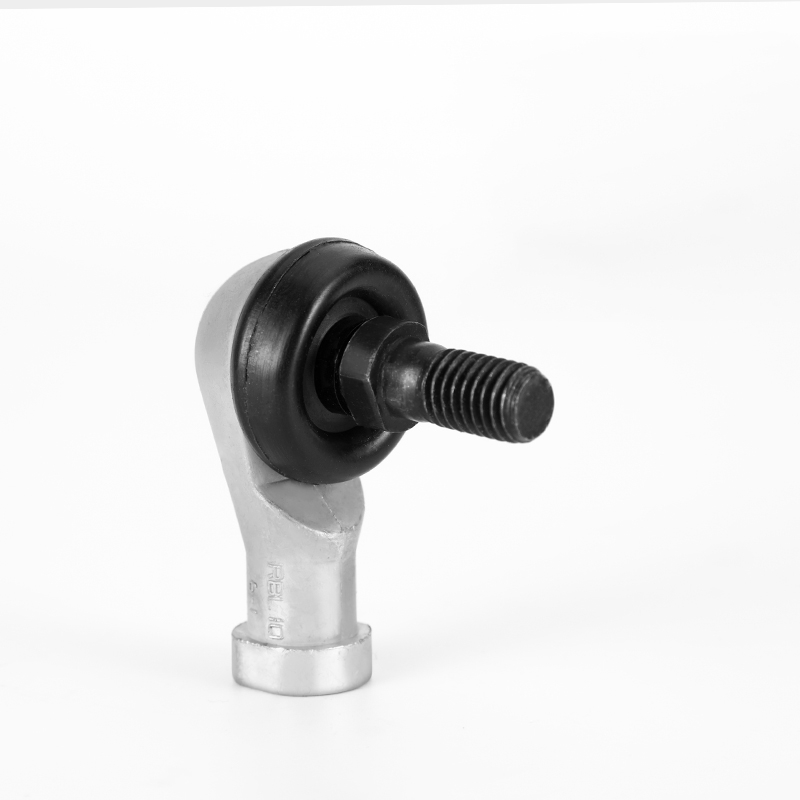

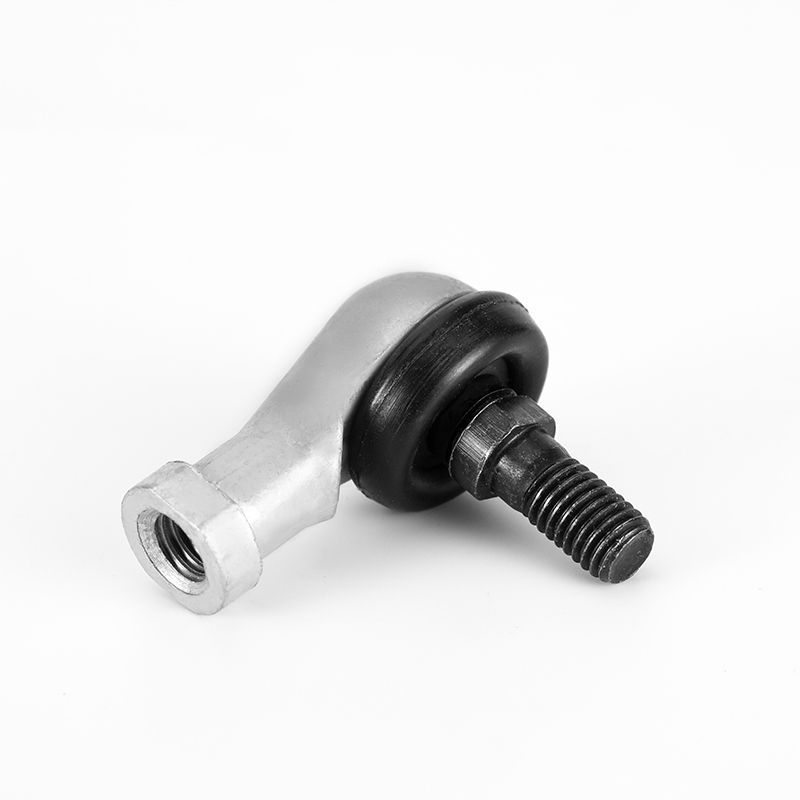

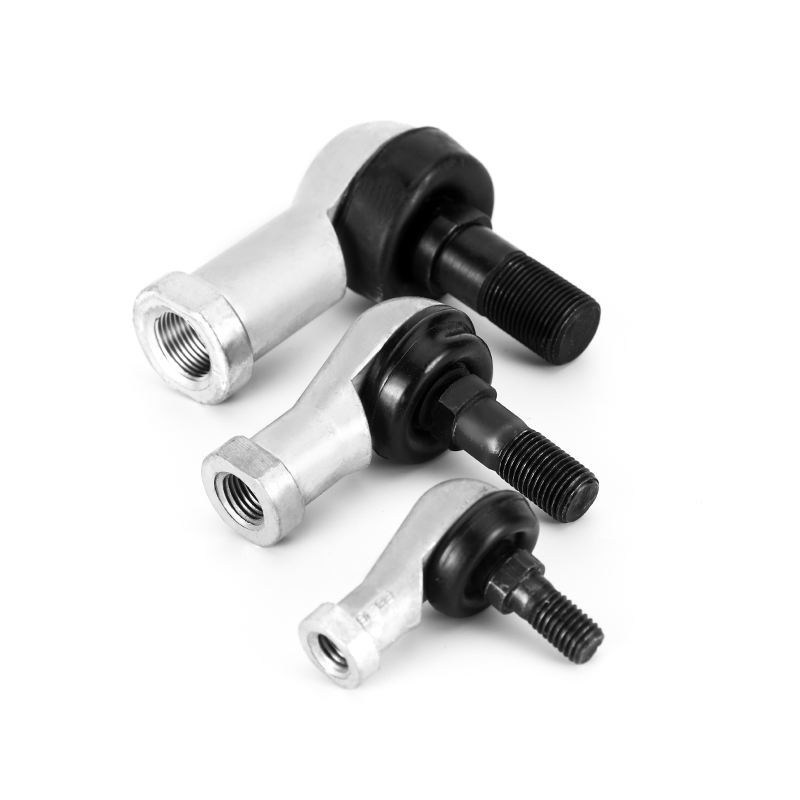

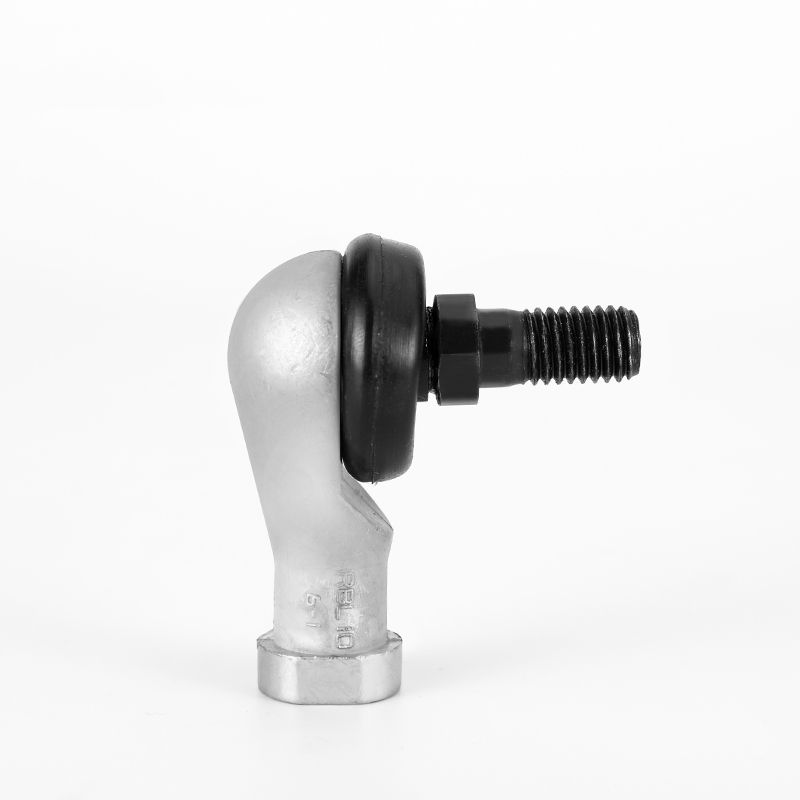

SQ..RS Rod End Bearing

--Ball joint housing with right or left hand thread

--Ball joint housing made of zinc base alloy

--With rubber dust seal

* Easy to use: easy to install and disassemble, the bearing can produce self-lubrication during work, no maintenance required
* Features: The rod end bearing is a spherical sliding bearing, which can rotate and swing at any angle during motion
* Applicable to instrumentation, construction machinery, mining and mineral processing, industrial fans, etc.

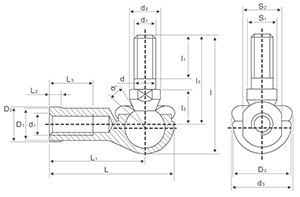

Part Number	Dimensions(mm)						Load ratings(KN)	Weight(g)
	d	d3	B	α ≈
SQ 5RS	5	M5×0.8	9	25	2.2	26
SQ 6RS	6	M6×1.0	10	25	3.5	39
SQ 8RS	8	M8×1.25	12	25	6.6	68
SQ 10RS	10	M10×1.25	14	25	10	112
SQ 10RS-1	10	M10×1.5	14	25	10	112
SQ 12RS	12	M12×1.25	17	25	16	164
SQ 12RS-1	12	M12×1.75	17	25	16	164
SQ 14RS	14	M14×1.5	19	25	19	254
SQ 14RS-1	14	M14×2.0	19	25	19	254
SQ 16RS	16	M16×1.5	22	20	26	336
SQ 16RS-1	16	M16×2.0	22	20	26	336
SQ 18RS	18	M18×1.5	23	20	33	464
SQ 20RS	20	M20×1.5	27	20	45	538
SQ 22RS	22	M22×1.5	27	16	48	713

-For left-hand thread of the ball joint housing ,please add suffix "L'in added to bearing number ,e.g.SQL 6RS
-The type number of ball joints without seal is SQ...

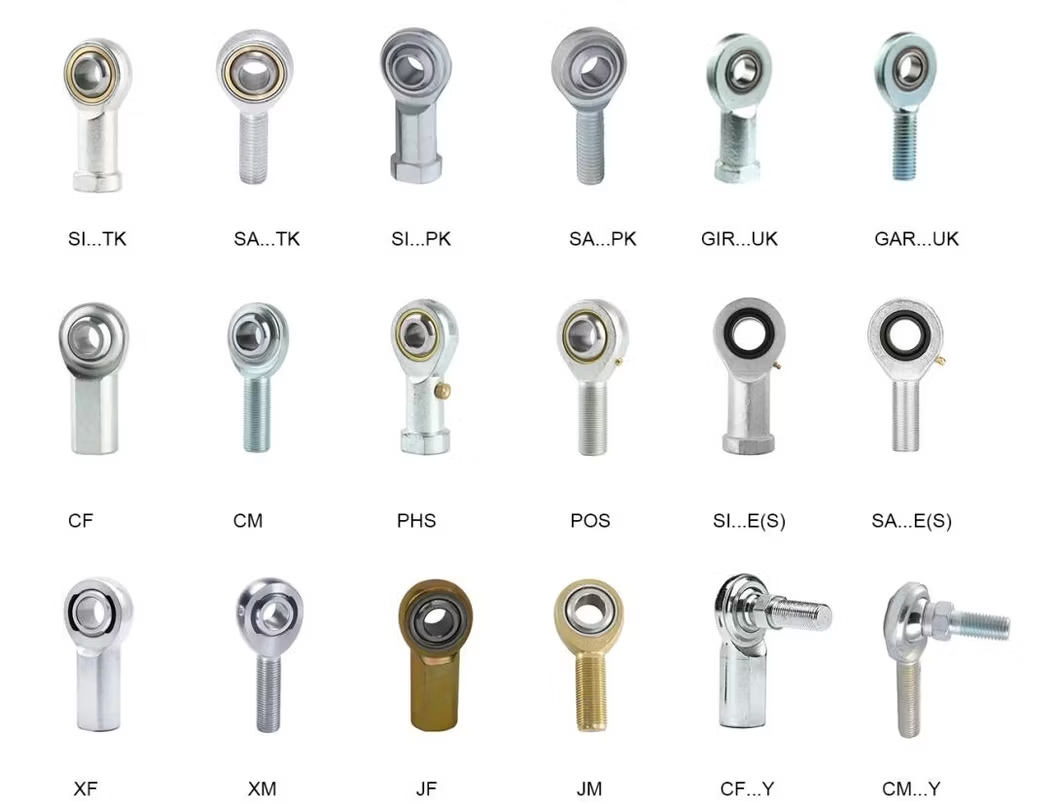

Raydafon Bearing Industry Co., Ltd. was established in 2003. It is a joint-stock company integrating R&D, manufacturing and import and export trade. The company's main products are rod ends, radial spherical bearings, linear bearings, linear slides, needle rollers, ball screws and linear guide mechanical parts. We not only design and produce various standard bearings, but also customize various non-standard bearings according to customer needs.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
