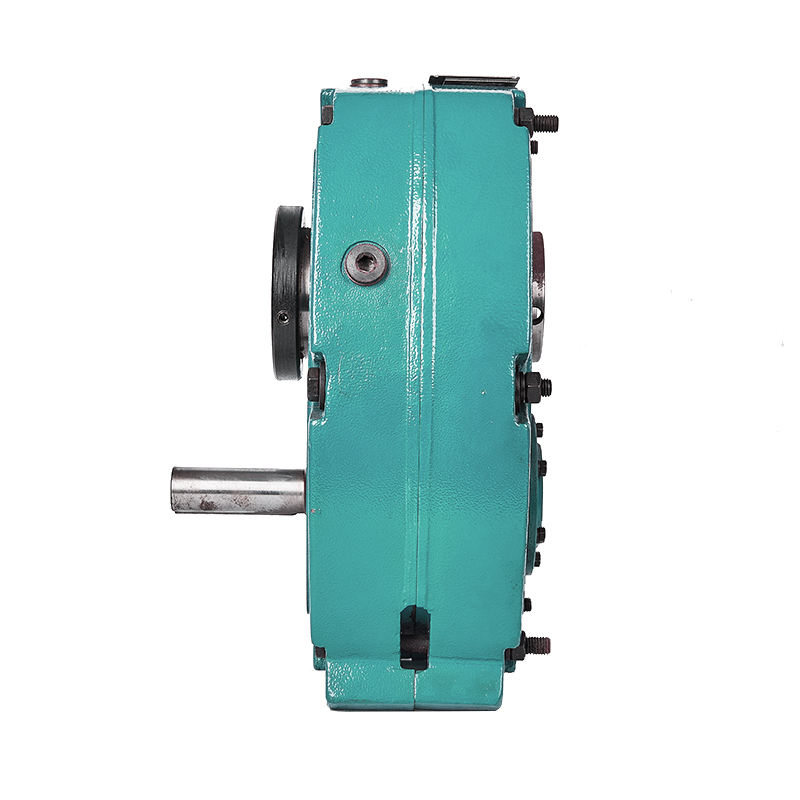

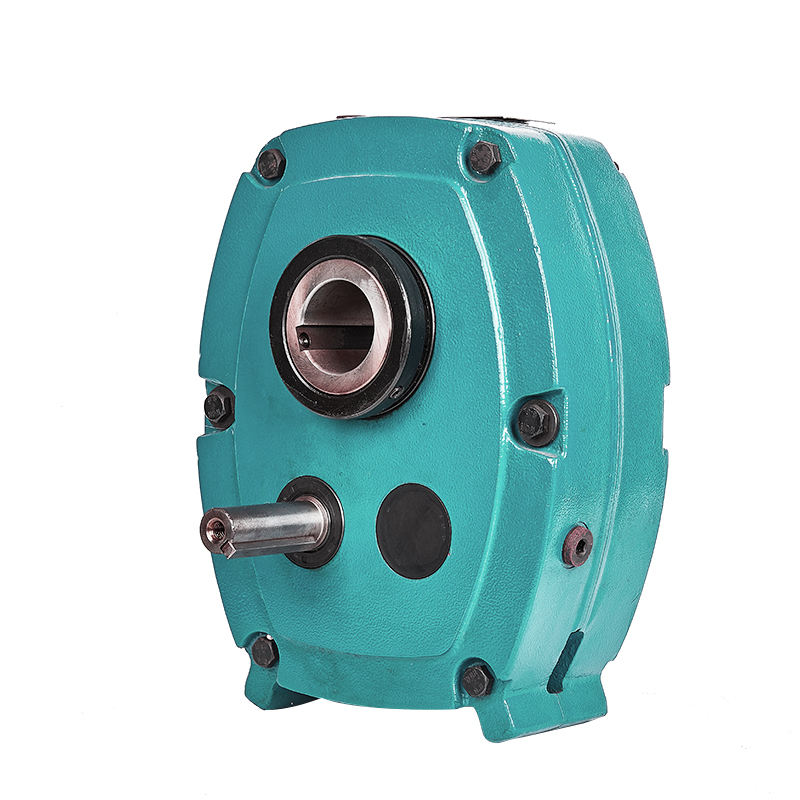

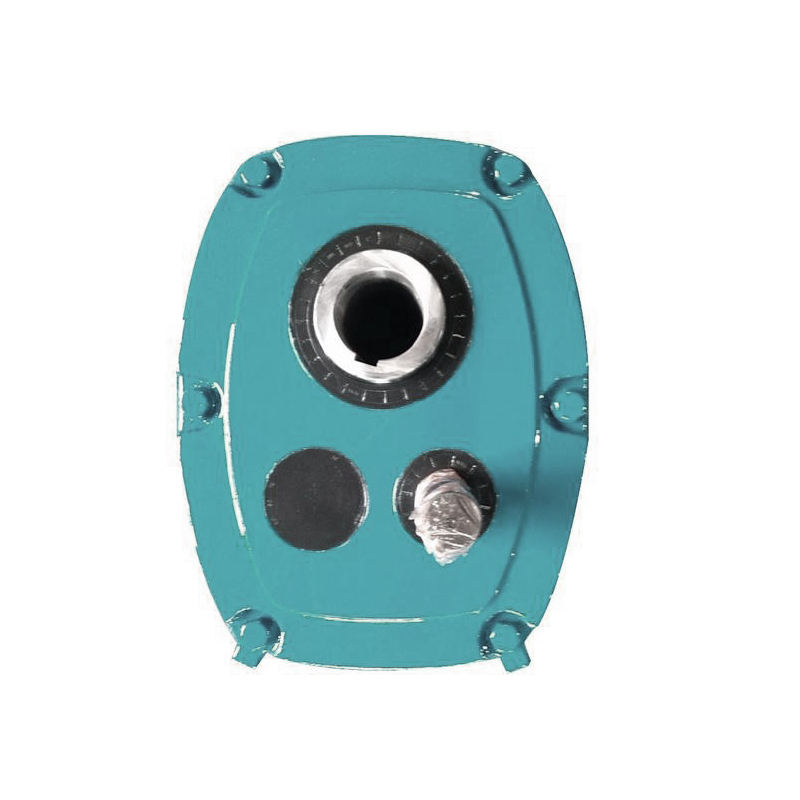

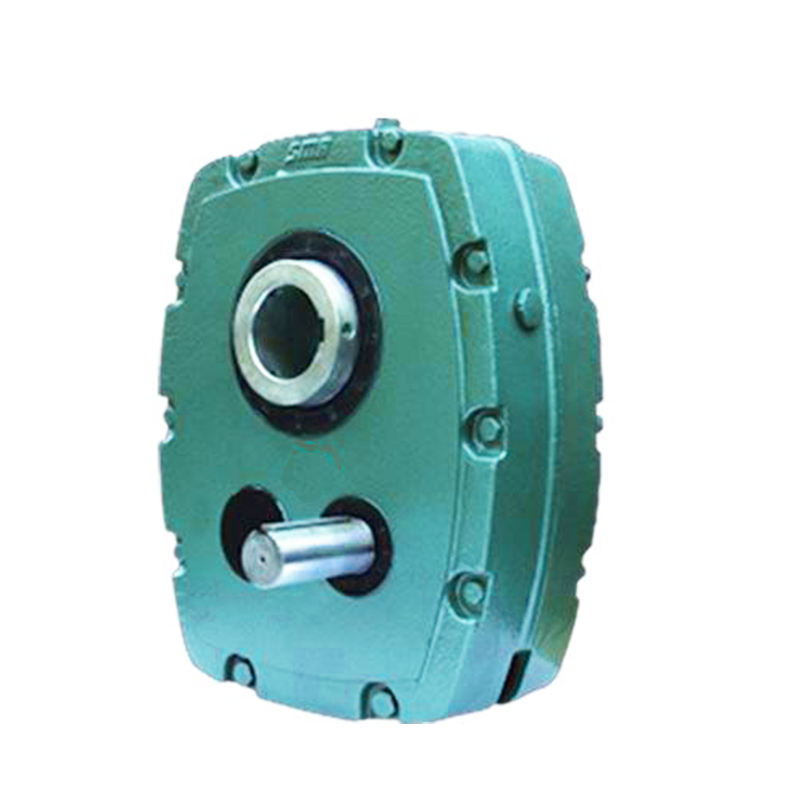

SMR Type D Small Right Angle Gearbox with Motor Spiral Bevel Gearbox Arrangement Helical Shaft Mounted Reducer ODM Customizable

Raydafon Group's SMR Type D Small Right Angle Gearbox with Motor Spiral Bevel Gearbox Arrangement Helical Shaft Mounted Reducer offers efficient power transmission in compact applications. Ideal for engineers and OEMs, it provides reliable performance, customizable ODM options, and enhances productivity with precision engineering, solving space and durability challenges.

Send Inquiry

Product Description

Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal: Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop

Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system

Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.

Installation:
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash

Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop

Cooling:
Natural Cooling

Models	Output Shaft Bore			Max. Torque*	Nominal Ratio
Models		Standard	Optional	Max. Torque*	Nominal Ratio
SMR-B	30mm	40mm	277N.m	5 13 20
SMR-C	40mm	50mm	468N.m
SMR-D	50mm	55mm	783N.m
SMR-E	55mm	65mm	1194N.m
SMR-F	65mm	75mm	1881N.m
SMR-G	75mm	85mm	2970N.m
SMR-H	85mm	100mm	4680N.m
SMR-J	100mm	120mm	7449N.m
