Description:

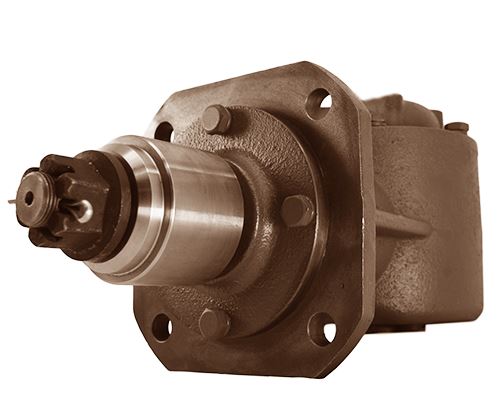

40 HP Rotary cutter gearbox with 1-3/8" smooth input shaft and a gear ratio of 1:1.47. Cast iron housing is sealed to protect the gears and bearings. The mounting plate has four bolt holes spaced 4.75" square. Ships without oil (16 oz of 80-90 W)
Gearbox has a piloted flange bottom to fit in a 5-1/4" pilot hole in the mower/cutter deck.
Application:
Replaces OEM gearboxes on 4', 5' and some 6' rotary cutters by these manufacturers， Please check measurements for proper fitment.
Technical Information:
Bolt Pattern:
4-3/4" Square with holes for 5/8" bolt
Pilot Hole Size: 5-1/4"
Input Shaft:
1-3/8" Smooth with 1/2 Shear-hole
Output Shaft: 1-9/16" Tapered 12-spline
Input Power Max: 40 HP
Input Speed: 540/1000 RPM
Shaft Rotation: CCW to CW with 1:1.47 Ratio
