Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine

Planar Enveloping Worm Gear box Speed Reducer Gearbox For Tire Forming Vulcanizing MachineThe flat enveloping toroidal worm gear reducer used in tire shaping vulcanizing machines adopts a flat enveloping toroidal worm gear pair inside, which has a large load-bearing capacity, high transmission effic......
Send Inquiry
Product Description

Planar Enveloping Worm Gear box Speed Reducer Gearbox For Tire Forming Vulcanizing Machine

The flat enveloping toroidal worm gear reducer used in tire shaping vulcanizing machines adopts a flat enveloping toroidal worm gear pair inside, which has a large load-bearing capacity, high transmission efficiency, compact and reasonable structure.
The contact end between the worm and the oil seal is treated with ultrasonic mirror surface treatment. The oil seal is made of imported high-temperature resistant TT0/NAK, and the shaft end is treated with mirror surface for high accuracy and a 20% increase in hardness, ensuring no leakage; Worm gear undergoes dynamic balance verification. Large carrying capacity; Compact and reasonable structure. High transmission efficiency; Smooth operation and low noise; Long service life.
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine
Reduction Gears For Tire Forming Vulcanizing Machine
Reducer
Using for tire forming vulcanizing machine
Center Distance
Transmission ratio
Standard mm
Max. mold clamping force kN(tf)
265
70
910(36 inches)
1030(105)
1030(40.5 inches)
1330(135)
1070(46 inches)
1716(175)
320
80
1050(42 inches)
1370(140)
1170(46 inches)
1960(200)
1170(46 inches)
2160(220)
360
93
1310(55 inches)
2890(295)
1525(63.5 inches)
4220(430)
1900(75 inches)
6470(660)
79
1400(55 inches)
2940(300)
2160(85 inches)
8430(860)
2500(100 inches)
using for turnover transmission
450
65
2500(100 inches)
12750(1300)
140/280
400
1525(63.5)
4220(430)
140/280
500
1525(63.5)
4220(430)

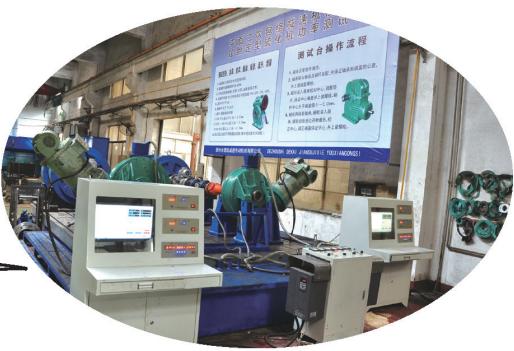

Test Board of Planar Double-Énveloping Tire Forming Wulcanizing Machine Detect and test torque, power, efficiency, vibrationnoise,temperature rise and leakage
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine
Planar Enveloping Worm Gear Box Speed Reducer Gearbox for Tire Forming Vulcanizing Machine

Scene drawing of vulcanizingmachine assembly
