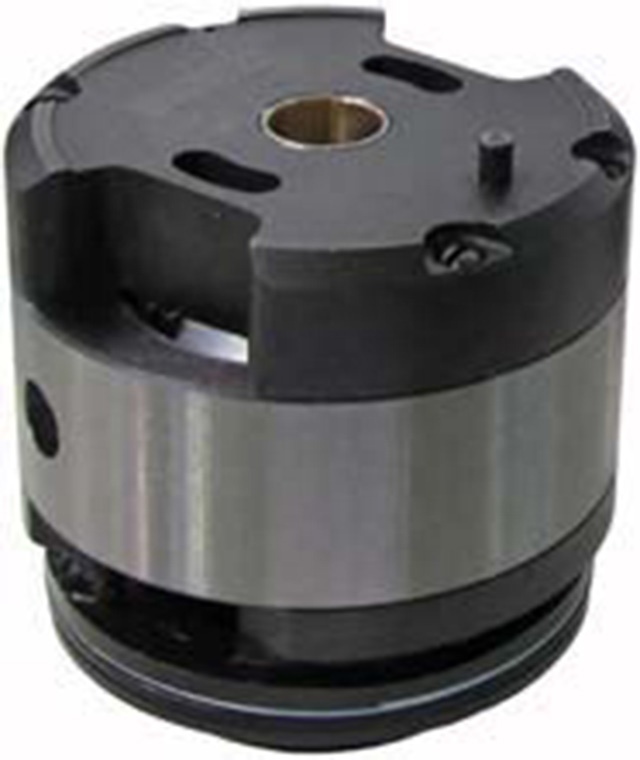

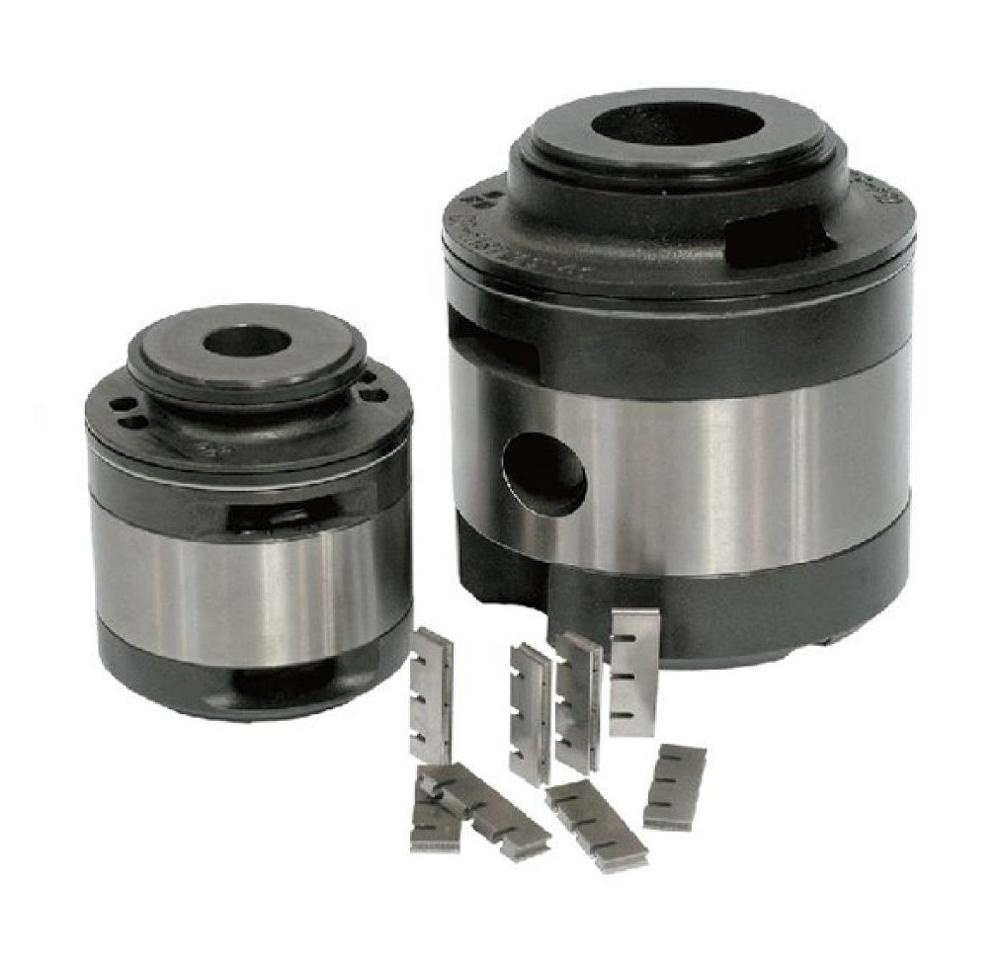

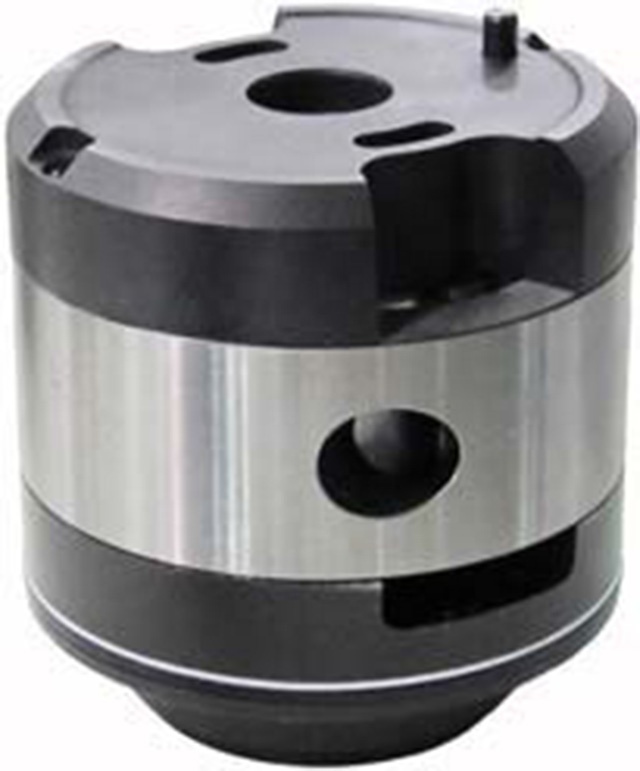

Parker Denison Hydraulic Vane Pump Cartridge Kits
Single vane pump, T6C, T6D, T6E, T7E, T7ES, T7BS, etc.
Double vane pump, T6CC, T6DC, T6EC, T6ED, T67DB, T7BB, T67CB, T7DB, etc.
Triple vane pump, T6DCC, T6EDC, T6DDC, T67DCB, T67EDB, T67DDC, etc.
The high pressure vane pumps incorporate the design of vane pin holdout. They are applicable for those hydraulic machineries that demand high rotation pressure and low noise level. The vane pump series are designed for applications in die casting machines, injection molding machines and other special construction equipments.
| Denison vane pump full range P/N below: | ||||||||
| Model T6CM, T6CCM, T6DCM, T6ECM, T6DCCM, T6CCM, T6DCCM, T6EDCM, T6CRM | ||||||||
| B03 | 10.8 | 034-59050 | S24-30097 | S24-40150 | S24-40175 | S24-40505 | S24-40200 | S24-44646 |
| S24-30098 | S24-40151 | S24-40176 | S24-40506 | S24-40201 | S24-44647 | |||
| B05 | 17.2 | 034-59051 | S24-30099 | S24-40152 | S24-40177 | S24-40507 | S24-40202 | S24-44648 |
| S24-30100 | S24-40153 | S24-40178 | S24-40508 | S24-40203 | S24-44649 | |||
| B06 | 21.3 | 034-59052 | S24-30101 | S24-40154 | S24-40179 | S24-40509 | S24-40204 | S24-44650 |
| S24-30102 | S24-40155 | S24-40180 | S24-40510 | S24-40205 | S24-44651 | |||
| B08 | 26.4 | 034-50953 | S24-30103 | S24-40156 | S24-40181 | S24-40511 | S24-40206 | S24-44652 |
| S24-30104 | S24-40157 | S24-40182 | S24-40512 | S24-40207 | S24-44653 | |||
| B10 | 34.1 | 034-59054 | S24-30105 | S24-40158 | S24-40183 | S24-40513 | S24-40208 | S24-44654 |
| S24-30106 | S24-40159 | S24-40184 | S24-40514 | S24-40209 | S24-44655 | |||
| B12 | 37.1 | 034-66595 | S24-30107 | S24-40160 | S24-40185 | S24-40515 | S24-40210 | S24-44656 |
| S24-30108 | S24-40161 | S24-40186 | S24-40516 | S24-40211 | S24-44657 | |||
| B14 | 46 | 034-59206 | S24-30109 | S24-40162 | S24-40187 | S24-40517 | S24-40212 | S24-44658 |
| S24-30110 | S24-40163 | S24-40188 | S24-40518 | S24-40213 | S24-44659 | |||
| B17 | 58.3 | 034-59207 | S24-30111 | S24-40164 | S24-40189 | S24-40519 | S24-40214 | S24-44660 |
| S24-30112 | S24-40165 | S24-40190 | S24-40520 | S24-40215 | S24-44661 | |||
| B20 | 63.8 | 034-66607 | S24-30113 | S24-40166 | S24-40191 | S24-40521 | S24-40216 | S24-44662 |
| S24-30114 | S24-40167 | S24-40192 | S24-40522 | S24-40217 | S24-44663 | |||
| B22 | 70.3 | 034-59208 | S24-30115 | S24-40168 | S24-40193 | S24-40523 | S24-40218 | S24-44664 |
| S24-30116 | S24-40169 | S24-40194 | S24-40524 | S24-40219 | S24-44665 | |||
| B25 | 79.3 | 034-59209 | S24-30117 | S24-40170 | S24-40195 | S24-40525 | S24-40220 | S24-44666 |
| S24-30118 | S24-40171 | S24-40196 | S24-40526 | S24-40221 | S24-44667 | |||
| B28 | 88.8 | 034-59245 | S24-30119 | S24-40172 | S24-40197 | S24-40527 | S24-40222 | S24-44668 |
| S24-30120 | S24-40173 | S24-40198 | S24-40528 | S24-40223 | S24-44669 | |||
| B31 | 100 | 034-66843 | S24-45791 | S24-45793 | S24-45795 | S24-45777 | S24-45775 | S24-49345 |
| S24-45792 | S24-45794 | S24-45796 | S24-45778 | S24-45776 | S24-58015 | |||
| Port Plate (Bi-directional) | Pressure | 034-66453 | 034-66453 | 034-66453 | 034-66493 | 034-66453 | 034-66453 | |
| Rear assy | S14-45605 | S24-10418 | S24-10139 | S24-10418 | S24-10349 | S14-45605 | ||
| Model T6DC, T6EC, T6DCC, T6EDC, T6DDC, T6CC, T67DCC, T67EDC, T67DDC, T6CR, T67DCC, T67DCB | ||||||||
| 3 | 10.8 | 034-59050 | S24-10692 | S24-10731 | S24-10767 | S24-25551 | S24-10749 | S24-26354 |
| S24-10693 | S24-10732 | S24-10768 | S24-25561 | S24-10750 | S24-26353 | |||
| 5 | 17.2 | 034-59051 | S24-10694 | S24-10733 | S24-10769 | S24-25552 | S24-10751 | S24-26356 |
| S24-10695 | S24-10734 | S24-10770 | S24-25562 | S24-10752 | S24-36355 | |||
| 6 | 21.3 | 034-59052 | S24-10696 | S24-10735 | S24-10771 | S24-25553 | S24-10753 | S24-26358 |
| S24-10697 | S24-10736 | S24-10772 | S24-25563 | S24-10754 | S24-26357 | |||
| 8 | 26.4 | 034-50953 | S24-10698 | S24-10737 | S24-10773 | S24-25554 | S24-10755 | S24-26360 |
| S24-10699 | S24-10738 | S24-10774 | S24-25564 | S24-10756 | S24-26359 | |||
| 10 | 34.1 | 034-59054 | S24-10721 | S24-10739 | S24-10775 | S24-25555 | S24-10757 | S24-26362 |
| S24-10722 | S24-10740 | S24-10776 | S24-25565 | S24-10758 | S24-26361 | |||
| 12 | 37.1 | 034-66595 | S24-26478 | S24-26509 | S24-26480 | S24-26484 | S24-26482 | S24-26383 |
| S24-26479 | S24-26510 | S24-26481 | S24-26485 | S24-26483 | S24-26382 | |||
| 14 | 46 | 034-59206 | S24-10723 | S24-10741 | S24-10777 | S24-25556 | S24-10759 | S24-26364 |
| S24-10724 | S24-10742 | S24-10778 | S24-25566 | S24-10760 | S24-26363 | |||
| 17 | 58.3 | 034-59207 | S24-10725 | S24-10743 | S24-10779 | S24-25557 | S24-10761 | S24-26366 |
| S24-10726 | S24-10744 | S24-10780 | S24-25567 | S24-10762 | S24-26365 | |||
| 20 | 63.8 | 034-66607 | S24-26859 | S24-26853 | S24-40234 | S24-40352 | S24-31023 | S24-31885 |
| S24-26860 | S24-26854 | S24-40235 | S24-40353 | S24-40032 | S24-50391 | |||
| 22 | 70.3 | 034-59208 | S24-10727 | S24-10745 | S24-10781 | S24-25558 | S24-10763 | S24-26368 |
| S24-10728 | S24-10746 | S24-10782 | S24-25568 | S24-10764 | S24-26367 | |||
| 25 | 79.3 | 034-59209 | S24-10729 | S24-10747 | S24-10783 | S24-25559 | S24-10765 | S24-26370 |
| S24-10730 | S24-10748 | S24-10784 | S24-25569 | S24-10766 | S24-26369 | |||
| 28 | 88.8 | 034-59245 | S14-97761 | S24-25510 | S14-97722 | S24-25560 | S24-25547 | S24-26372 |
| S24-25519 | S14-97738 | S24-25791 | S24-25570 | S24-25546 | S24-26371 | |||
| 31 | 100 | 034-66843 | S24-45785 | S24-45787 | S24-45789 | S24-45773 | S24-45771 | S24-49442 |
| S24-45786 | S24-45788 | S24-45790 | S24-45774 | S24-45772 | S24-49443 | |||
| Pressure | 034-59772 | 034-59772 | 034-59773 | 034-66521 | 034-59773 | 034-59772 | ||
| Port Plate | 034-59773 | 034-59773 | 034-59772 | 034-66522 | 034-59772 | 034-59773 | ||
| Rear assy | S24-10803 | S24-10805 | S24-10809 | S24-10806 | S24-10807 | S24-10808 | ||
| S24-10804 | S24-10806 | S24-10810 | S24-10805 | S24-10808 | S24-10807 | |||
| Model T67DBB, T67DB, T67EB, T7BB, T67CB, T7DBB, T67DCB, T7DB, T7EB | |||||||
| B02 | 5.8 | 034-66909 | S24-50144 | S24-58078 | S24-50610 | S24-51513 | S24-59709 |
| S24-50145 | S24-58079 | S24-50611 | S24-51514 | S24-59710 | |||
| B03 | 9.8 | 034-66910 | S24-50146 | S24-58080 | S24-50612 | S24-51515 | S24-59711 |
| S24-50147 | S24-58081 | S24-50613 | S24-51516 | S24-59712 | |||
| B04 | 12.8 | 034-66911 | S24-50148 | S24-58082 | S24-50614 | S24-51517 | S24-59713 |
| S24-50149 | S24-58083 | S24-50615 | S24-51518 | S24-59714 | |||
| B05 | 15.9 | 034-66912 | S24-50150 | S24-58084 | S24-50616 | S24-51519 | S24-59715 |
| S24-50151 | S24-58085 | S24-50617 | S24-51520 | S24-59716 | |||
| B06 | 19.8 | 034-66913 | S24-50152 | S24-58086 | S24-50618 | S24-51521 | S24-59717 |
| S24-50153 | S24-58087 | S24-50619 | S24-51522 | S24-59718 | |||
| B07 | 22.5 | 034-67063 | S24-59970 | S24-59974 | S24-59907 | S24-59972 | S24-59976 |
| S24-59971 | S24-59975 | S24-59908 | S24-59973 | S24-59977 | |||
| B08 | 24.9 | 034-66914 | S24-50154 | S24-58088 | S24-50620 | S24-51523 | S24-59719 |
| S24-50155 | S24-58089 | S24-50621 | S24-51524 | S24-59720 | |||
| B09 | 28 | 034-67383 | S24-77219 | S24-77225 | S24-72910 | S2477376 | S24-77916 |
| S24-77220 | S24-77226 | S24-72697 | S24-77377 | S24-59917 | |||
| B10 | 31.8 | 034-66915 | S24-50156 | S24-58090 | S24-50622 | S24-51525 | S24-59721 |
| S24-50157 | S24-58091 | S24-50623 | S24-51526 | S24-59722 | |||
| B11 | 35 | 034-67461 | S24-77221 | S24-77227 | S2477173 | S24-77378 | S24-77918 |
| S24-77223 | S24-77228 | S24-76880 | S24-77379 | S24-77919 | |||
| B12 | 41 | 034-67032 | S24-59005 | S24-59013 | S24-59009 | S24-59017 | S24-59723 |
| S24-59006 | S24-59014 | S24-59010 | S24-59018 | S24-59724 | |||
For more detailed model number, please contact our company.
