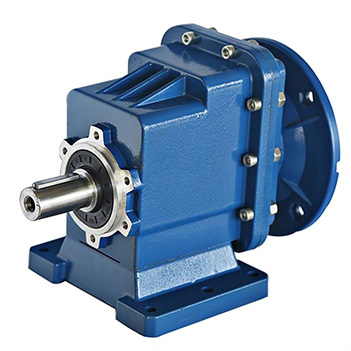

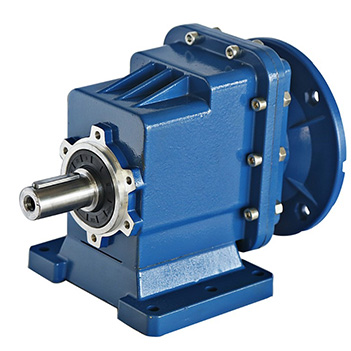

Product Description

Technical features:
The highly modular is a design features of SLRC helical gearboxes range. It can be connected respectively with motors such as normal motor,brake motor,explosion-proof motor,frequency conversion motor,servo motor,IEC motor and so on. This kind of product is widely used in drive fields such as textile,foodstuff,ceramics packing,logistics,plastics and so on. It is possible to set up the version required using flanges or feet

Product features:
SLRC series helical gear units has more than 4 types,power 0.12kw-4kw,ratio3.66-54;max torque120-500NM,It can be connected(foot or
flange)discretionary and use multi-mounting positions according customers' requirements
1 Ground-hardened helical gears
2. Modularity,can be combined in many forms
3. Aluminum casing,light weight
4. Gears in carbonize hard,durable
5. Universal mouting
6. Refined design, compact in structure and low noise

MODEL ILLUMINATE :

GEAR UNIT MOTOR

① ②③④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩⑪

SLRC-F-01-II-P71B5-23.56-M2/270°-0.37kw-4p-220/380v-50HZ/S

①	SLRC : Code for gear units series

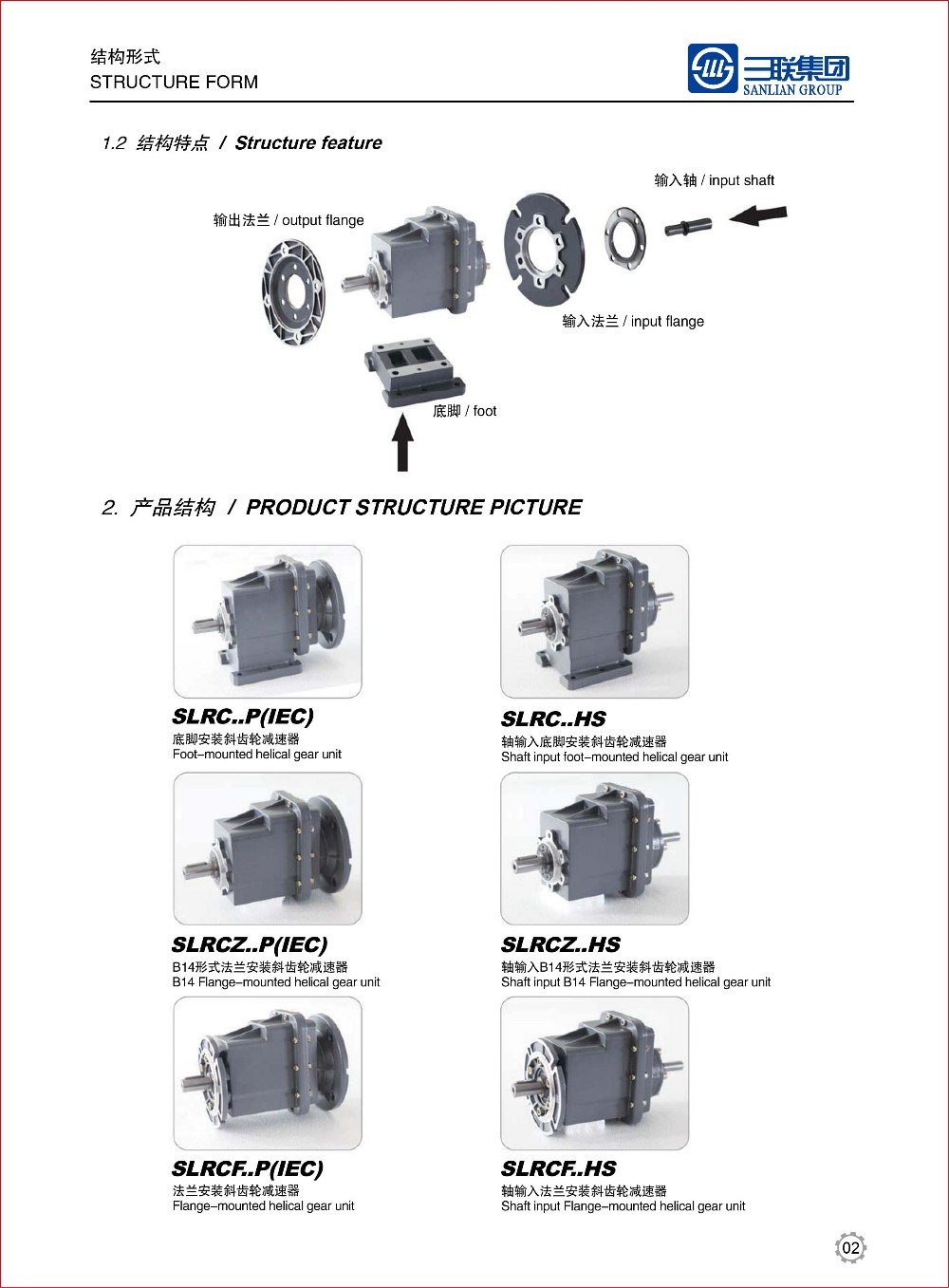

②	1) No code means foot-mounted 2) F : B5 flange mounted 3) Z : B14 flange mounted
③	Specification code of gear units 01 , 02 , 03 , 04
④	1) B01、M01.......means foot code, without flange 2) I , II , III B5 output flange specification, default I not to write out is ok
⑤	1) IEC input flange 2) HS: Shaft input
⑥	Transmission ratio of gear units ( i )
⑦	M1: default mounting position M1 not to write out is ok
⑧	Position diagram for motor terminal box, default position 0° not to write out is ok
⑨	1) No mark means without motor 2) Model motos (poles pf power)
⑩	Voltage-frequency
⑪	Coil in position for motor, default position S not to write out is ok

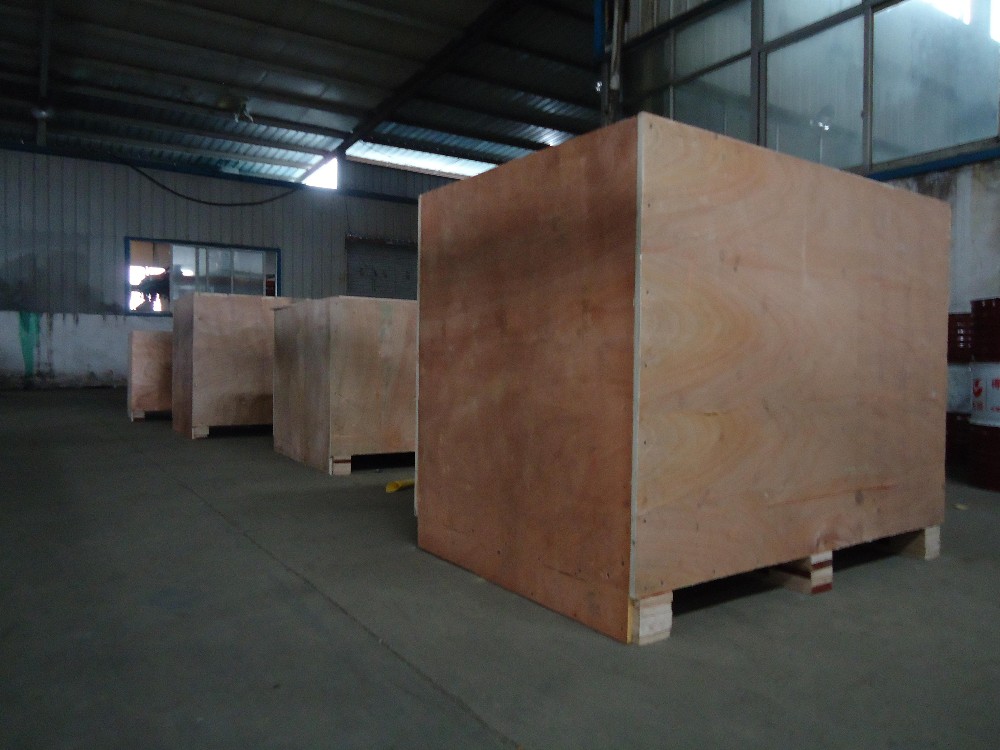

Packing&Shipping

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

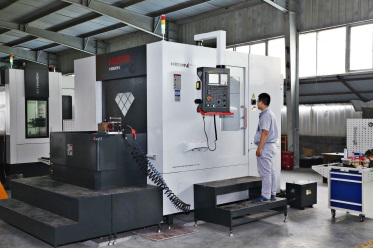

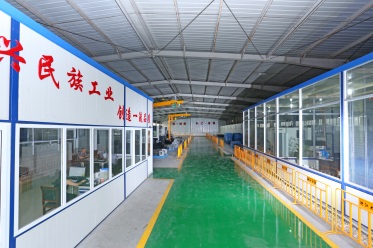

Company Introduction
