Low Cost Material Handling Transport Conveyor System Suitable -15C to 40C Universal Belt Conveyor for Mining Industry
What is a Universal Belt Conveyor? A universal belt conveyor is a versatile, modular conveyor system that uses a continuous belt loop to transport bulk materials. It is supported by pulleys (drive and idler), rollers, and a robust frame, with tensioning systems to maintain belt alignment and perform......

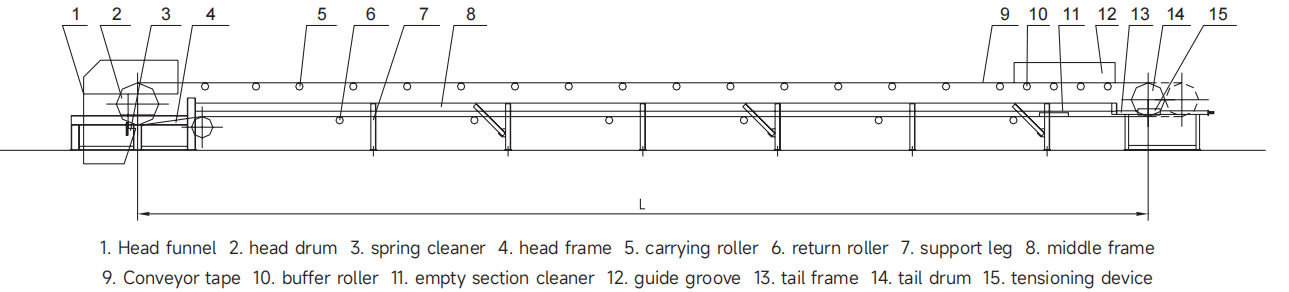

A universal belt conveyor is a versatile, modular conveyor system that uses a continuous belt loop to transport bulk materials. It is supported by pulleys (drive and idler), rollers, and a robust frame, with tensioning systems to maintain belt alignment and performance.
Purpose and scope of use
The TD75 universal belt conveyor has the advantages of simple structure, large conveying capacity, convenient maintenance and use, low cost, and strong universality, suitable for working in an ambient temperature range of -15°C to 40°C. If corresponding protective measures are taken, it can also be applied to occasions with special requirements such as explosion-proof, waterproof.
Product feature
1.The capacity for conveying materials is below 2.5t/m3
2.Can be divided into 500, 650, 800, 1000, 1200, 1400
3.Can be divided into: 0.8, 1.0, 1.25, 1.6, 2.0, 2.5, 3.15, 4.0

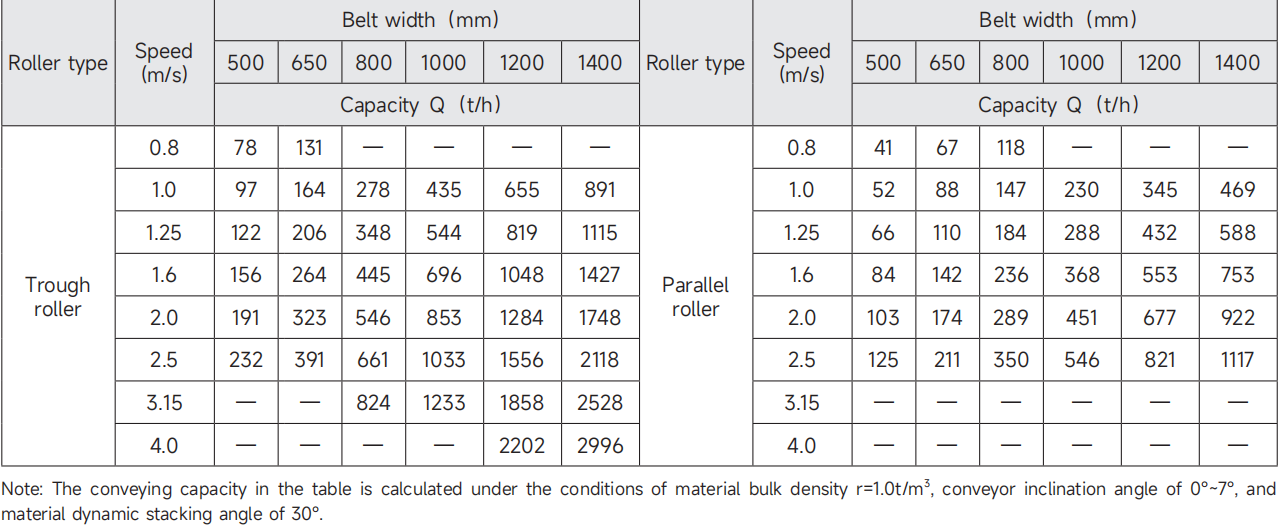

Technical parameters
Applications in the Mining Industry

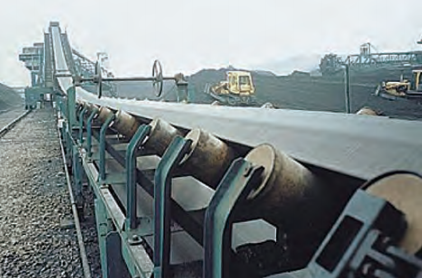

1. Surface Mining (Open-Pit):
Transport overburden, ore, coal, or aggregates from extraction sites to crushers, processing plants, or stockyards over distances up to several miles.
2. Underground Mining:
Move ore or coal from deep mine faces to surface processing facilities through confined tunnels, often navigating steep inclines.
3. Crushing and Screening:
Feed mined materials to crushers or screens for processing, ensuring continuous flow between stages.
4. Stockpiling and Blending:
Stack materials like coal or ore into stockpiles using tripper or radial telescopic conveyors, enabling efficient blending for downstream processing.
5. Overland Conveying:
Transport materials over long distances to ports, railways, or refineries, replacing truck haulage.
Example: The 98 km conveyor at Bou Craa phosphate mine in Western Sahara, the world’s longest system.
6. Heap Leaching and Aggregate Handling:
Support heap leaching by conveying ore to stacking areas or transport aggregates like gravel for construction.
Example: Mobile bridge conveyors link crushers to overland systems in heap leaching plants.
For more details, please click here to contact us!
Raydafon Group Co., Ltd. manufacturing of transmission and transportation machinery for more than 20 years, The company has a modern factory building area of over 18000 square meters. The company mainly engages in the design and manufacturing of various transmission machinery products. The products cover DT II (A), DT II, TD75, DJ high-angle belt conveyors, circular tube belt conveyors and various conveyor accessories
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
