Large Heavy-duty Ball Screw for CNC Lathe Bridge Gantry Machining Center

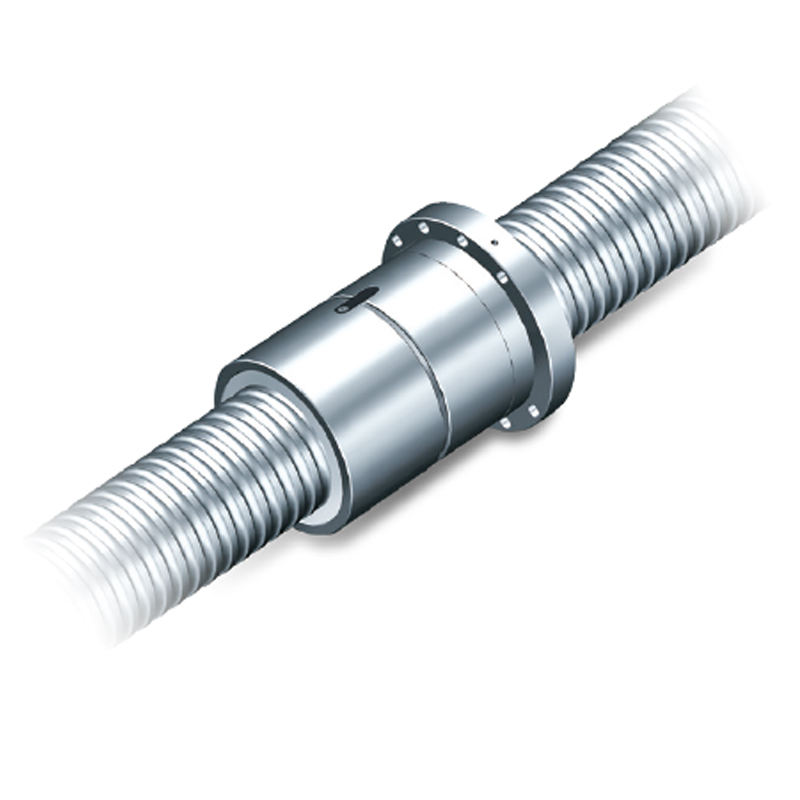

Large heavy-duty ball screwLarge: The maximum length of the entire piece is 10 meters, and it can be extended up to 19 metersHeavy load: rated dynamic load 126 tons, rated static load 595 tonsSerialization: Ball screws with nominal diameters of 63, 80, 100, 120, 160, 200Short lead time: 30 daysIndus......
Large: The maximum length of the entire piece is 10 meters, and it can be extended up to 19 meters
Heavy load: rated dynamic load 126 tons, rated static load 595 tons
Serialization: Ball screws with nominal diameters of 63, 80, 100, 120, 160, 200
Short lead time: 30 days
Industrialization: Ball screw sub industrialization base
Application:
Widely used in large gantry boring and milling machines, composite machining centers, aerospace, large mechanical lifting equipment, large ship locks
In the fields of forging equipment, metallurgical equipment, hydraulic equipment, large aircraft and ships, and large power generation equipment.
Length and heavy load have always been important challenges to overcome in manufacturing large heavy-duty ball screw pairs. This series of products has overcome design, heat treatment, straightening, raceway forming processing, and dynamic detection technologies. In terms of structural design, the product adopts a design structure with multiple paths and large diameter ball circulation circuits. The maximum rated dynamic load of the product is 126 tons, and the maximum rated static load is 595 tons. we have now put into use a series of equipment, including a 10 meter large lathe, a 10 meter hard body rotary milling machine, a 10 meter large grinding machine, a 10 meter medium frequency quenching machine, a 10 meter large straightening machine, and a 10 meter laser screw (pair) stroke error measuring instrument
We have taken the lead in establishing the first production line for a single 10 meter ball screw pair in China. The 10 meter laser screw (pair) travel error measuring instrument has been calibrated and put into use by Jiangsu Institute of Metrology, solving the key technology in the dynamic detection process of a single 10 meter ball screw pair. We have established an industrial base for large-scale heavy-duty ball screw pairs.
Precision linear guideway

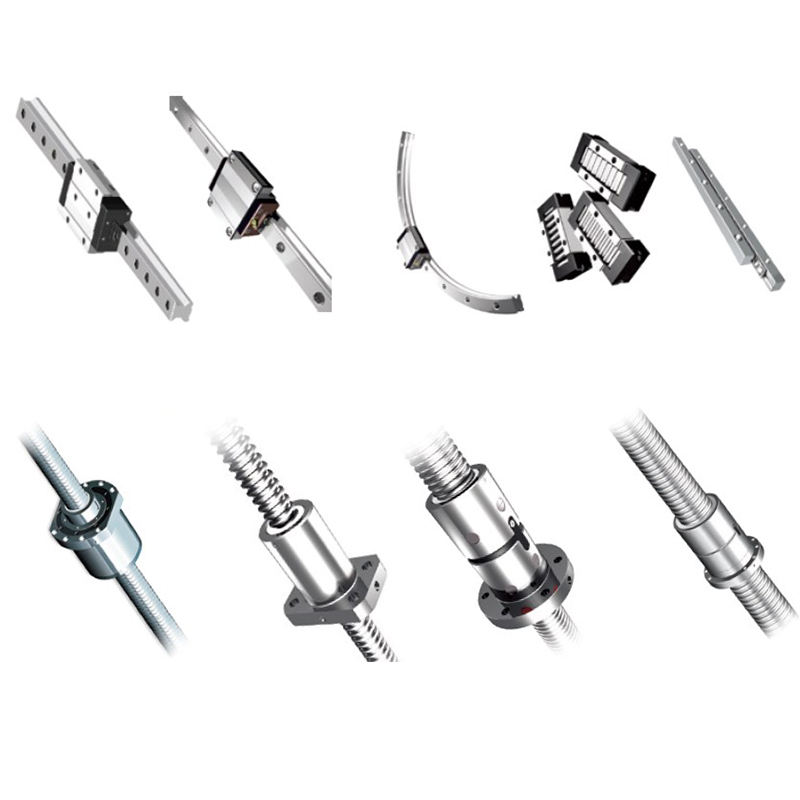

GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMG GZB-BA/BAL heavy load roller LMG GGB four direction equal load ball LM guide GGB-AA/AAL four direction equal load ball LM guide GGB-AB/ABL four direction equal load ball LM guide GGB-BABAL four direction equal load ball LM guide GGC type Miniature linear guideway GGD heavy load radial linear guideway GGD-AAAAL heavy load radial guideway GGD-BA/BAL heavy load radial guideway
Dimension series of GTB , GTB-T , GTBT , GTBT-T type
Dimension series of GTC type bushing

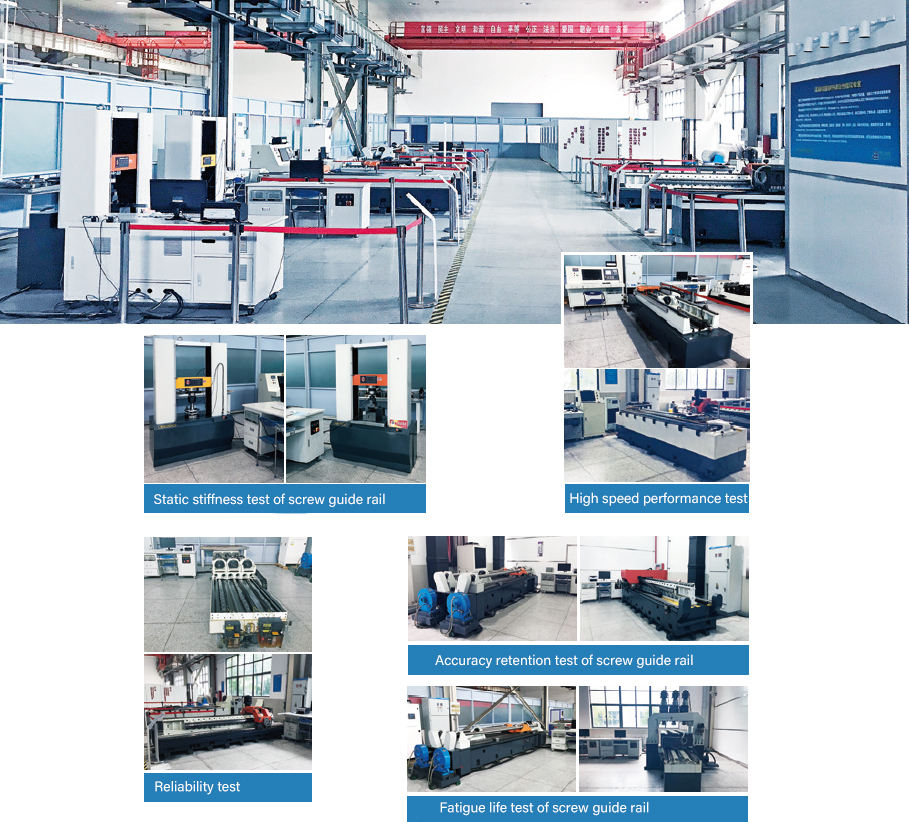

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components.
In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
