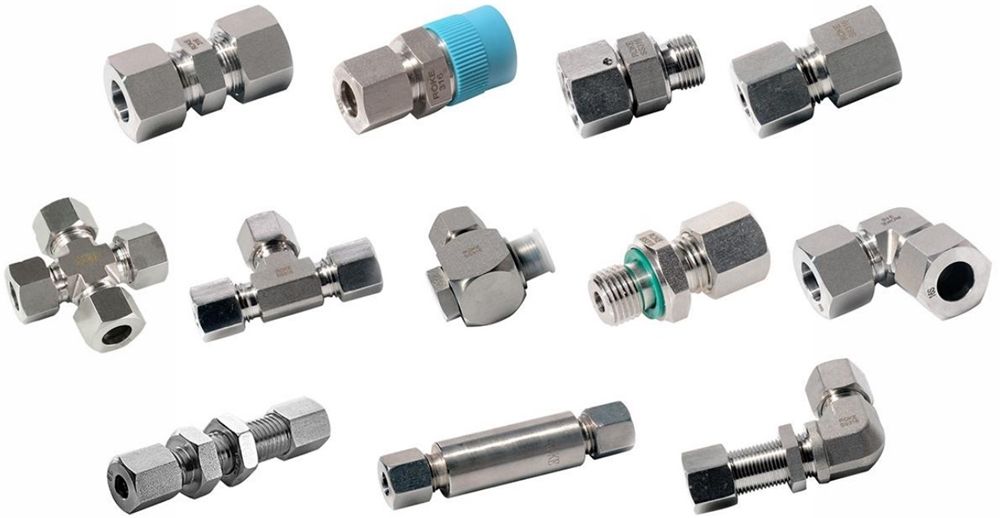

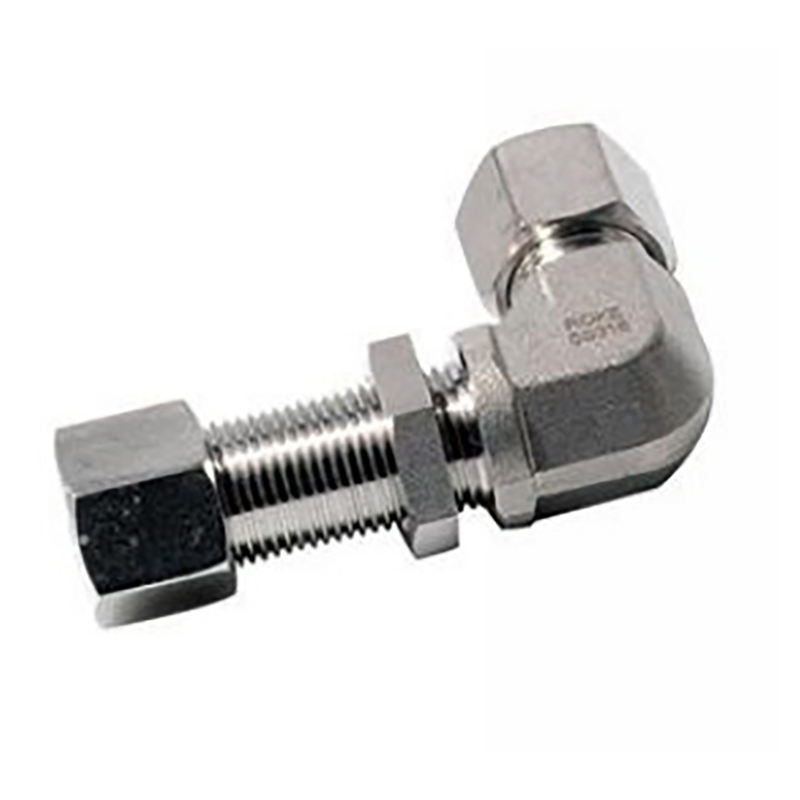

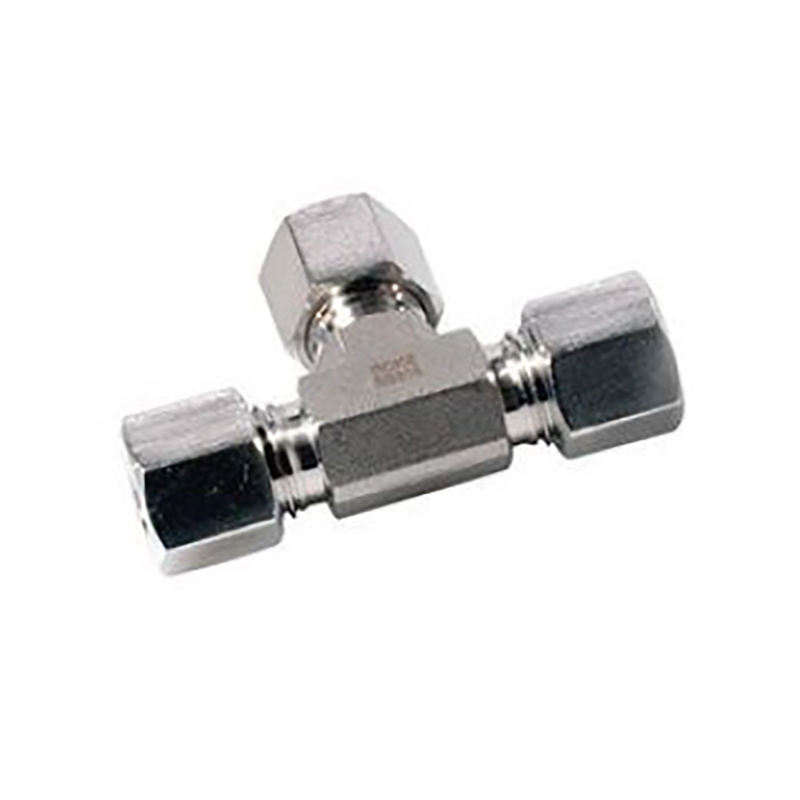

Product Description

Hydraulic fittings play a crucial role in hydraulic systems and offer several important benefits and functions. Here are some key reasons why hydraulic fittings are essential: 1. Leak-Free Connections: Hydraulic systems operate under high pressures, and any leakage can result in a loss of efficiency, reduced performance, and potential safety hazards. Hydraulic fittings provide secure and leak-free connections between different components such as hoses, tubes, valves, and cylinders. They ensure that hydraulic fluid is properly contained and routed within the system, maintaining system integrity and preventing fluid loss. 2. System Efficiency and Performance: Properly selected and installed hydraulic fittings contribute to the overall efficiency and performance of hydraulic systems. They minimize pressure drops, restrictions, and turbulence in the fluid flow, ensuring smooth and consistent operation. By providing reliable connections, hydraulic fittings help maintain optimal system pressure, flow rates, and responsiveness, enhancing the efficiency and performance of hydraulic machinery and equipment. 3. Flexibility and Adaptability: Hydraulic fittings offer flexibility and adaptability in hydraulic system design and configuration. They allow for the connection and disconnection of components, making it easier to assemble, disassemble, and modify hydraulic systems as needed. Hydraulic fittings accommodate variations in component sizes, thread types, and connection methods, enabling customization and adaptation to specific application requirements. 4. Safety: Hydraulic systems often operate in demanding and potentially hazardous environments. Hydraulic fittings that are properly selected, installed, and maintained contribute to the safety of the system and its operators. They help prevent leaks, pressure spikes, and failures that could lead to accidents, injuries, or equipment damage. Additionally, fittings with appropriate seals and connections ensure that hydraulic fluid remains contained, reducing the risk of fluid contact with personnel or the environment. 5. Versatility: Hydraulic fittings are available in a wide range of types, sizes, and configurations to accommodate different hydraulic system requirements. They can connect various components with different thread types, sizes, and connection methods. This versatility allows hydraulic fittings to be used in diverse industries and applications, making them suitable for a broad range of hydraulic systems and equipment. 6. Maintenance and Serviceability: Hydraulic fittings facilitate maintenance and service tasks in hydraulic systems. They allow for easy access to components, such as valves, filters, or cylinders, for inspection, replacement, or repair. Quick-connect couplings, for example, enable rapid connection and disconnection of hydraulic hoses, simplifying maintenance procedures and reducing downtime. 7. Compatibility and Interchangeability: Hydraulic fittings are designed to adhere to industry standards and specifications. This ensures compatibility and interchangeability between different brands and suppliers, making it easier to source and replace fittings when needed. Standardized hydraulic fittings promote system integration and interoperability, providing greater flexibility and convenience for hydraulic system designers, manufacturers, and end-users. In summary, hydraulic fittings are vital components in hydraulic systems, offering leak-free connections, system efficiency, flexibility, safety, versatility, and ease of maintenance. Their proper selection, installation, and maintenance contribute to the overall performance, reliability, and longevity of hydraulic systems in a wide range of applications across industries.

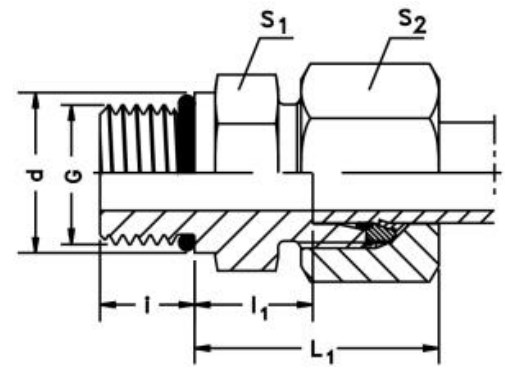

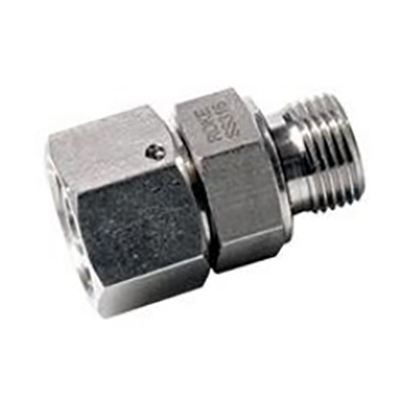

GEO Part NO.	Series Working Pressure (bar/psi)	Tube O.d.	G Male Metric thread	d	i	I1	L1	S1	S2
O-ring ID&Cross Section	-GEO04LLM	LL Very light 100bar 1450psi	4	M8*1	11	6.5	9.5	19	11
10	6.1*1.6	-GEO04LLM10*1		4	M10*1	13	6.5	9.5	19
13	10	8.1*1.6	-GEO06LLM		6	M10*1	13	6.5	8
19.5	13	12	8.1*1.6	-GEO06LM	L light 315 bar 4560psi	6	M10*1	14	8.5
8.5	23	14	14	8.1*1.6	-GEO08LM		8	M12*1.5	17
11	10	25	17	17	9.3*2.2	-GEO10LM		10	M14*1.5
19	11	11	26	19	19	11.3*2.2	-GEO12LM		12
M16*1.5	22	11.5	12.5	27	22	22	13.3*2.2	-GEO15LM
15	M18*1.5	24	12.5	13.5	29	24	27	15.3*2.2	-GEO18LM
	18	M22*1.5	27	13	14.5	31	27	32	19.3*2.2
-GEO22LM27*2	160bar 2320psi	22	M27*1.5	32	16	16.5	33	32	36
23.6*2.9	-GEO28LM		28	M33*2	41	16	17.5	34	41
41	29.6*2.9	-GEO35LM		35	M42*2	50	16	17.5	39
50	50	38.6*2.9	-GEO42LM		42	M48*2	55	17.5	19
42	55	60	44.6*2.9	-GEO06SM	S Heavy 630bar 9130psi	6	M12*1.5	17	11
13	28	17	17	9.3*2.2	-GEO08SM		8	M14*1.5	19
11	15	30	19	19	11.3*2.2	-GEO10SM		10	M16*1.5
22	12.5	15	31	22	22	13.3*2.2	-GEO12SM		12
M18*1.5	24	14	17	33	22	24	15.3*2.2	-GEO16SM	400bar 5800psi
16	M22*1.5	27	15	18.5	37	27	30	19.3*2.2	-GEO20SM
	20	M27*2	32	18.5	20.5	42	32	36	23.6*2.9
-GEO25SM		25	M33*2	41	18.5	23	47	41	46

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.
3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly
5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

How to select Hydraulic Fittings? When selecting hydraulic fittings, several factors need to be considered to ensure compatibility, reliability, and optimal performance within your hydraulic system. Here are some key considerations: 1. System Pressure: Determine the maximum operating pressure of your hydraulic system. Select hydraulic fittings that have a pressure rating equal to or higher than the system's maximum pressure to ensure safe and reliable operation. 2. Fluid Compatibility: Consider the type of hydraulic fluid used in your system, such as mineral oil, synthetic oil, water-based fluids, or specialized fluids. Ensure that the materials used in the hydraulic fittings are compatible with the hydraulic fluid to prevent chemical reactions, degradation, and leakage. 3. Thread Type and Size: Identify the thread type and size required for your hydraulic fittings. Common thread types include National Pipe Thread (NPT), British Standard Pipe (BSP), Metric (M), and others. Ensure that the thread type and size of the fittings match the corresponding components in your system to achieve a proper and leak-free connection. 4. Connection Method: Determine the appropriate connection method for your application. Choices include threaded connections, flared connections, O-ring face seal connections (ORFS), quick-connect couplings, or specialized connectors. Consider factors such as ease of installation, convenience for maintenance, and the ability to withstand system vibrations. 5. Material Selection: Select hydraulic fittings made from materials that are suitable for your system's requirements. Common materials include steel, stainless steel, brass, and aluminum. Consider factors such as system pressure, fluid compatibility, environmental conditions (corrosion resistance), and weight considerations. 6. Seal Type: Hydraulic fittings often incorporate seals, such as O-rings or metal-to-metal seals, to maintain a leak-free connection. Ensure that the seal type and material are compatible with the hydraulic fluid and system requirements. Proper sealing is critical to prevent leakage and ensure system integrity. 7. Standards and Certifications: Consider using hydraulic fittings that meet industry standards and certifications, such as those set by organizations like the International Organization for Standardization (ISO). Compliance with standards ensures quality, performance, and interchangeability of hydraulic fittings. 8. Application and Environment: Evaluate the specific application and environment in which the hydraulic fittings will be used. Factors such as temperature range, vibration levels, exposure to chemicals or abrasive substances, and space limitations should be taken into account to select fittings that can withstand these conditions. 9. Consult Experts: If you are unsure about selecting the appropriate hydraulic fittings, consult with hydraulic system experts, hydraulic component suppliers, or manufacturers. They can provide guidance and recommend suitable fittings based on your system requirements. Remember, proper installation, tight connections, and regular maintenance are essential for the reliable and leak-free operation of hydraulic fittings. Always follow the manufacturer's instructions and guidelines when installing and using hydraulic fittings.

Raydafon., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
