Product Introduction:

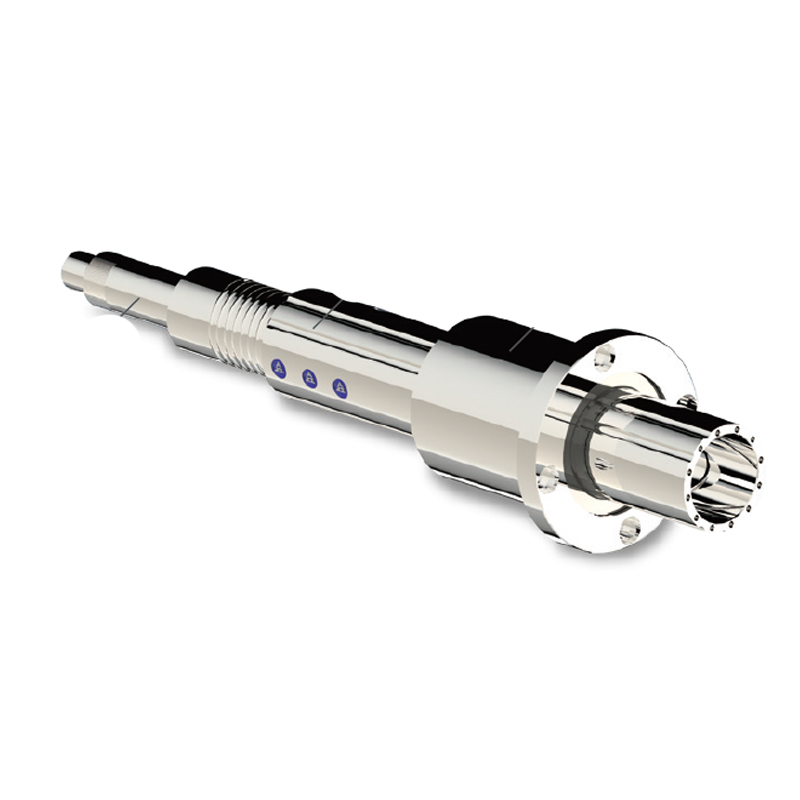

The ball nut rolling spline composite unit is designed for automated and intelligent production lines
The new composite rolling functional components developed in the application field mainly consist of precision ball screws, ball nuts/rolling spline shafts, rolling spline sleeves, etc. This product is mainly used in servo machines. By integrating precision ball screw nuts with ball spline shafts, the structure of the press is simplified and the space of the press cylinder body is saved; The screw and nut structure adopts a high load design to meet the large tonnage requirements of the press; Adopting ball spline pairs for anti rotation, with rolling friction during operation, flexible movement, and low noise; The screw and nut raceways are precision ground and processed, with high feed accuracy

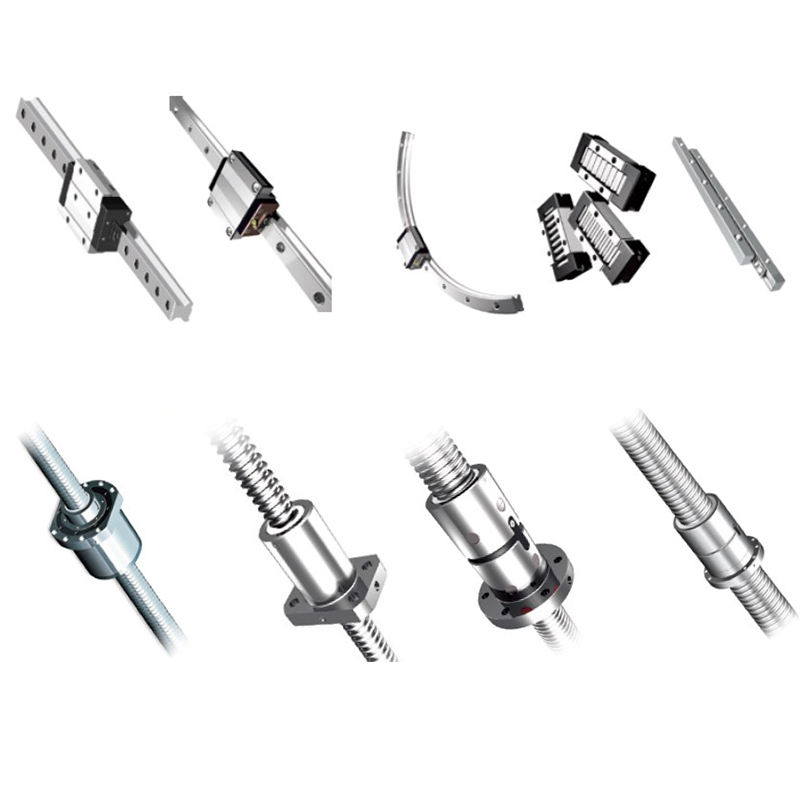

Precision linear guideway
GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMG GZB-BA/BAL heavy load roller LMG GGB four direction equal load ball LM guide GGB-AA/AAL four direction equal load ball LM guide GGB-AB/ABL four direction equal load ball LM guide GGB-BABAL four direction equal load ball LM guide GGC type Miniature linear guideway GGD heavy load radial linear guideway GGD-AAAAL heavy load radial guideway GGD-BA/BAL heavy load radial guideway
Dimension series of GTB , GTB-T , GTBT , GTBT-T type
Dimension series of GTC type bushing

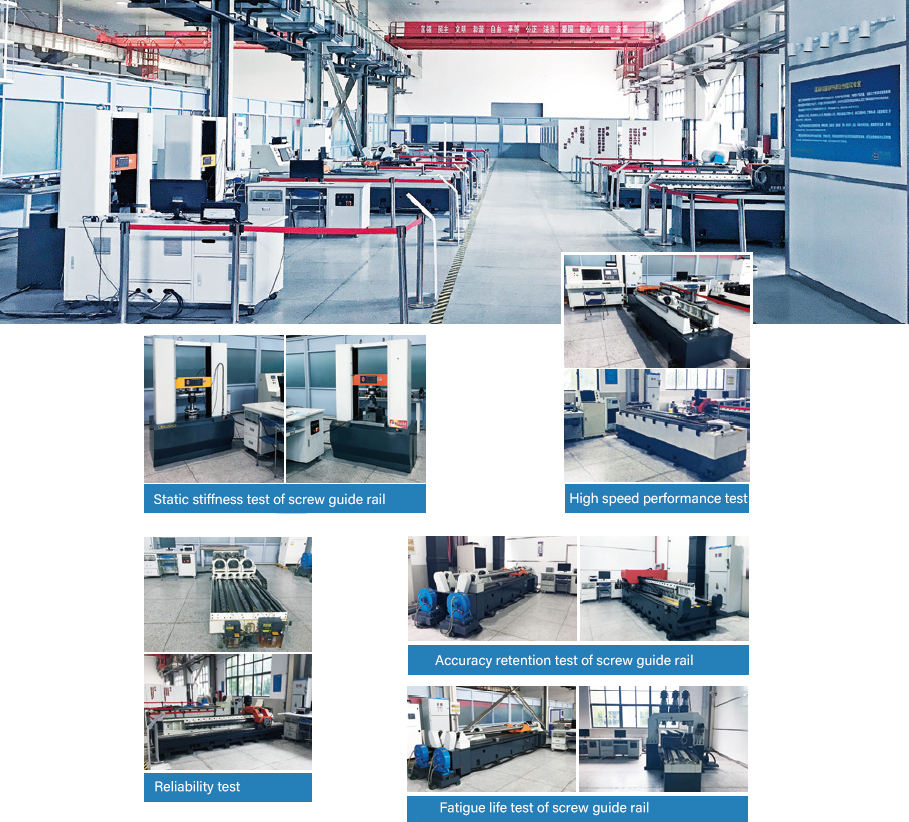

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components.
In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
