Good Quality FGM-250 CNC Forming Gear Grinding Machine

Send Inquiry

Product Description

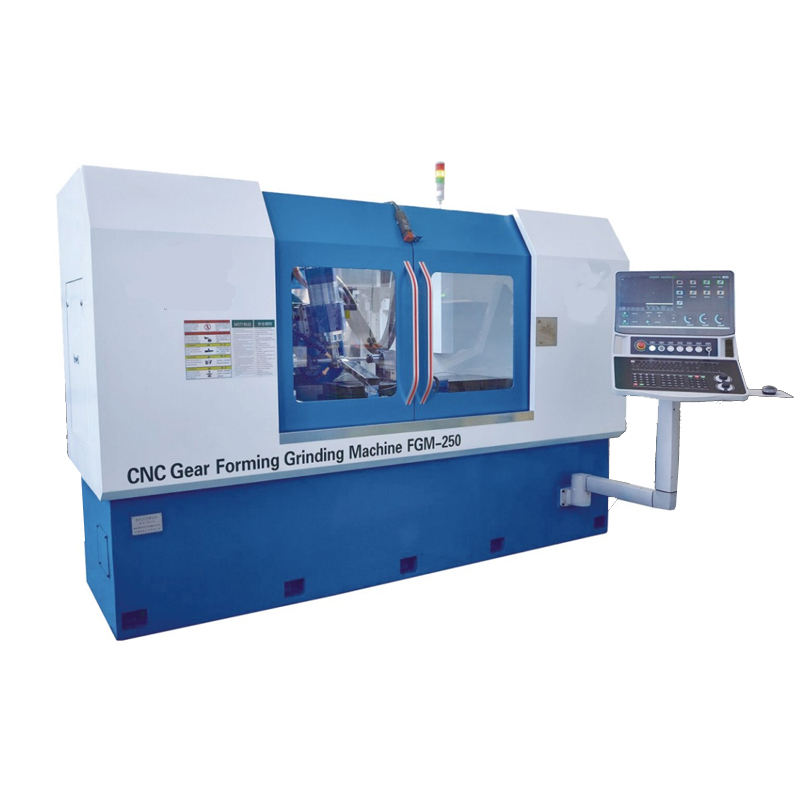

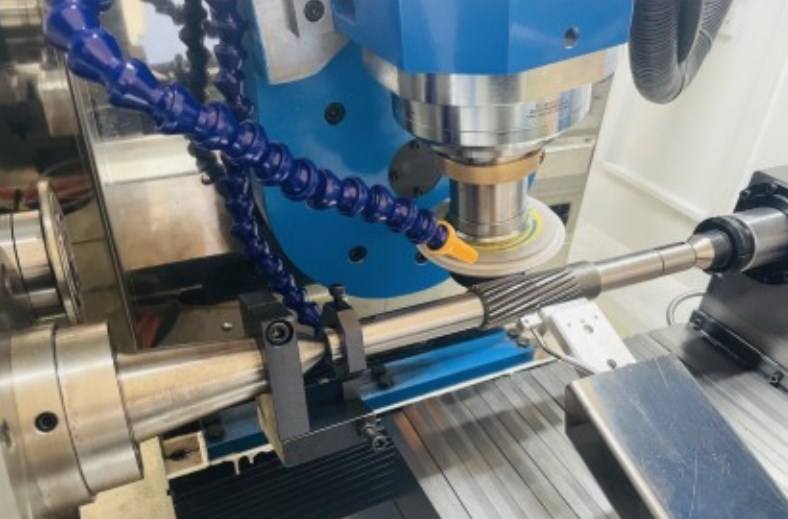

The CNC forming gear grinding machine adopts FANUC's system of five/six axis three linkage control; The gear grinding motion is completed by the linkage of a high rigidity and high torque torque torque motor (A-axis) and a linear motor (X-axis). The torque motor and linear motor simplify the transmission system, not only ensuring efficient forward and reverse continuous grinding, but also ensuring machining accuracy; The diamond roller can be adjusted online for various tooth profiles of the grinding wheel through dual direct drive linear axis (X-axis and Z-axis) interpolation combined with the self-developed GPM modification software. The grinding wheel spindle adopts a high-power and high torque electric spindle to ensure grinding efficiency and quality. This machine tool not only supports standard tooth profile machining, but also supports CAD tooth profile import function for special teeth.
Applicable scope Gear with fewer teeth, oil pump gear, high-precision shaft gear, and high-precision plug gauge, etc.

	FGM-250
Center Height	240mm/130mm
Center Distance	700mm
Worm Diameter	Φ250mm
Maximum Effective Length	650mm
Maximum modulus	M0.5-M8
Heads	Any
Lead Angle	±45°
Max.Grind Depth	18mm
Accuracy	DIN3974 Teeth&Helix Level 5
Table Transverse Strokt	X=820mm
WheelLongitudinal Stroke	Z = 340mm
Grinding Spindle	18.5kw, Max.15000rpm
Max.Wheel	Φ250xΦ50x25mm
CNC System	FANUC Oi-MF PIus
Power	3AC 380V 50KVA
Main Machine Size	3000x2000x1900mm
Main Machine Weight	6000kg
