Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts

3V Series Cast Iron Three-Groove QD Sheaves for "3V" Belts3V series three groove QD (quick disassembly) bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. They range in diameter from 2.50 "to 33.50". Depending on the pulley size, they use JA, SH, SDS, SK or SF Q......
Send Inquiry
Product Description
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts

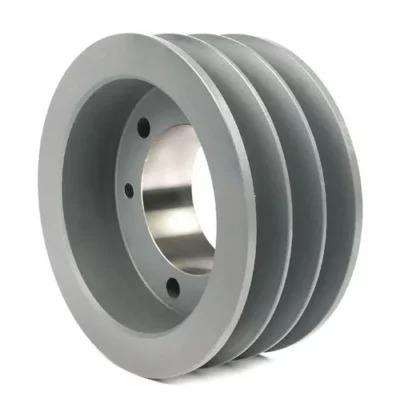

3V Series Cast Iron Three-Groove QD Sheaves for "3V" Belts

3V series three groove QD (quick disassembly) bushing pulley is applicable to 3V, 3VX, belt 3V and belt 3VX belts. They range in diameter from 2.50 "to 33.50". Depending on the pulley size, they use JA, SH, SDS, SK or SF QD bushings, which we also have in stock. Our three groove 3V QD pulleys are mostly made of high-strength 35 cast iron, coated with phosphate and anti-corrosion paint. All these are balanced at the factory to ensure smooth operation of the machine.

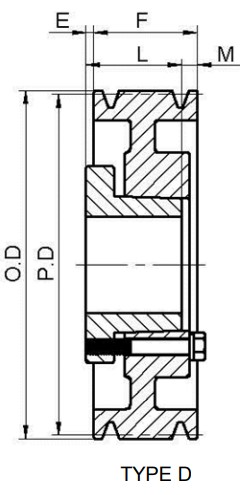

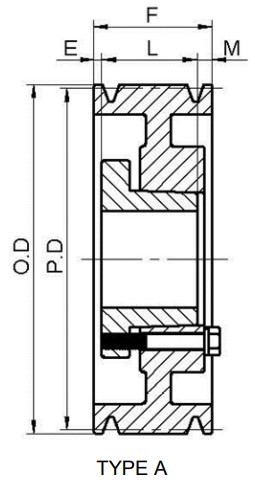

Three-Groove 3V QD Sheave Size Chart
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
For more details, please click here to contact us!
Size
Bushing Type
Type
Pitch Diameter
Outside Diameter
(E)
(F)
(L)
(M)
Weight (LBS)
33V250JA
JA
E
2.45"
2.50"
1 13/32
1 1/2
1
29/32
0.8
33V265JA
JA
D
2.60"
2.65"
3/8
1 1/2
1
7/8
1.0
33V280JA
JA
D
2.75"
2.80"
3/8
1 1/2
1
7/8
1.4
33V300SH
SH
E
2.95"
3.00"
1 5/32
1 1/2
1 5/16
31/32
1.7
33V315SH
SH
E
3.10"
3.15"
1 5/32
1 1/2
1 5/16
31/32
1.8
33V335SH
SH
D
3.30"
3.35"
17/32
1 1/2
1 5/16
23/32
1.9
33V365SH
SH
D
3.60"
3.65"
17/32
1 1/2
1 5/16
23/32
2.3
33V412SH
SH
E
4.07"
4.12"
1/32
1 1/2
1 5/16
5/32
2.8
33V450SDS
SDS
A
4.45"
4.50"
1/32
1 1/2
1 5/16
5/32
3.5
33V475SDS
SDS
A
4.70"
4.75"
1/32
1 1/2
1 5/16
5/32
4.0
33V500SDS
SDS
A
4.95"
5.00"
1/32
1 1/2
1 5/16
5/32
4.5
33V530SDS
SDS
A
5.25"
5.30"
1/32
1 1/2
1 5/16
5/32
5.2
33V560SDS
SDS
A
5.55"
5.60"
1/32
1 1/2
1 5/16
5/32
6.0
33V600SDS
SDS
A
5.95"
6.00"
1/32
1 1/2
1 5/16
5/32
7.0
33V650SDS
SDS
A
6.45"
6.50"
1/32
1 1/2
1 5/16
5/32
8.1
33V690SDS
SDS
A
6.85"
6.90"
1/32
1 1/2
1 5/16
5/32
8.9
33V800SK
SK
D
7.95"
8.00"
17/32
1 1/2
1 5/16
3/32
11.3
33V1060SK
SK
D
10.55"
10.60"
17/32
1 1/2
1 15/16
3/32
14.0
33V1400SK
SK
D
13.95"
14.00"
17/32
1 1/2
1 15/16
3/32
21.6
33V1900SF
SF
D
18.95"
19.00"
19/32
1 1/2
1 15/16
1/32
32.1
33V2500SF
SF
D
24.95"
25.00"
19/32
1 1/2
2 1/16
1/32
50.0
33V3350SF
SF
D
33.45"
33.50"
19/32
1 1/2
2 1/16
1/32
78.0

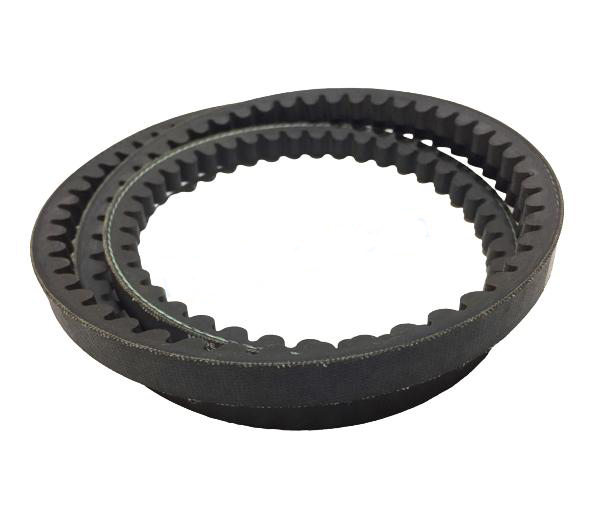

Relevant supporting 3V, 3VX series V-belts (1) 3V series deep wedge V-belt The classic 3V series V-belt has a top width of 0.38 ", a thickness of 0.31" and an angle of 38 °, which also classifies it as a deep wedge V-belt. The 3V series belt is designed to be more compact and more powerful than the standard 40 ° angle v-belt. Because of their long-term success and economic operation, they are also one of the most widely used belt series in the industry. The high-quality 3V series v-belts we provide are manufactured according to ISO 9001 specifications and ARPM standards; They are oil and heat resistant and can be directly interchanged with other brands. The 3V conveyor belt is made of natural rubber compound and polyester rope, and is covered with a mixture of cotton and polyester, with high durability. The 3V series belts are used with HVAC, lawn and garden equipment, and agricultural equipment for most general heavy industrial applications. We also stock a complete set of high-power v-belts and matching v-belt pulleys/pulleys. (2) 3VX toothed V-belt The top width of the 3VX toothed v-belt is 0.38 "and the thickness is 0.31". Our grooved 3VX v-belts are manufactured with rough sidewalls to eliminate slip, improve efficiency and save operating costs. They are also manufactured according to ARPM standards and are oil and heat resistant. The 3VX conveyor belt is composed of high-quality neoprene compound and high-strength polyester string, and the top fabric is made of cotton polyester blend. In addition to performance, durability and energy saving advantages, our toothed v-belts will also be used with existing vertical pulleys/pulleys.
(3) 3V series ribbon V-belt The 3V series v-belts are part of the "classic" series of v-belts because they are one of the oldest and most common styles used. Our belts are manufactured according to ARPM standards and have excellent strength, durability and performance. The top width of each belt (belt/rib) of the 3V series v-belt is 0.38 inches. (4) 3VX belt toothed V-belt All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. All our v-belts are manufactured according to ARPM specifications, with excellent performance and durability. Because of its design, the belt 3VX toothed v-belt runs more smoothly and loosely, and is generally more durable than the standard belt C v-belt. They also provide higher efficiency than ordinary v-belts, which means less energy costs.
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Related QD Bushings | Quick Disconnect Bushings
QD bushings are widely used in industrial power transmission and agricultural markets for multiple sprockets, pulleys, pulleys and synchronous drives. They can be used for quick setup and simple uninstallation; They are also commonly referred to as quick disconnect bushings. QD bushings can be installed routinely by all flange outboard and reverse mounting, regardless of the location of the flange on the inboard side, and use a single split that extends through the entire length of the bushing. Our QD bushings are interchangeable with other brands and are made of high-grade steel and precision machined for the best applications. The positive aspects of QD casing relative to its unique style include:; It is easy to install/uninstall, with high holding energy and strength. We stock all traditional sizes of QD bushings and provide custom QD bushings as well as stainless steel on request. QD casing is located in some of the strongest applications in the world; These days, please contact our customer service personnel for any quotation or other information about high-quality QD casing.
Three reasons for belt pulley heating: 1. Belt pulley material: the selection of belt pulley shall be based on the matching material of mechanical running speed. Many customers have vague requirements for materials and processes when selecting the pulley, which leads to the pulley being unable to keep up with the speed of the machine, so it is very hot to touch, and the pulley required is more worn. 2. Selection of pulley type: the selection of pulley type shall be determined according to the speed and power of equipment. Incorrect selection of pulley type will result in insufficient torque. It cannot bear the load of the machine, because many customers have a vague concept of pulley selection. . Belt pulley balance: the belt pulley runs out when it rotates. Normally, the pulley is not dynamically balanced. Dynamic balancing has a great influence on the service life and service life of the pulley. If dynamic balancing has been carried out, it can ensure that the transmission is accurate without slip. Reminder: During the operation of the equipment, the belt pulley heating is a normal phenomenon, but it must also be kept within the normal range. If the temperature is too high, the cooling equipment shall be well cooled and shut down for rest. Regularly check the tightness of the belt and timely maintain the pulley. This can not only avoid problems of the pulley during operation, but also prolong the service life of the pulley!
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts

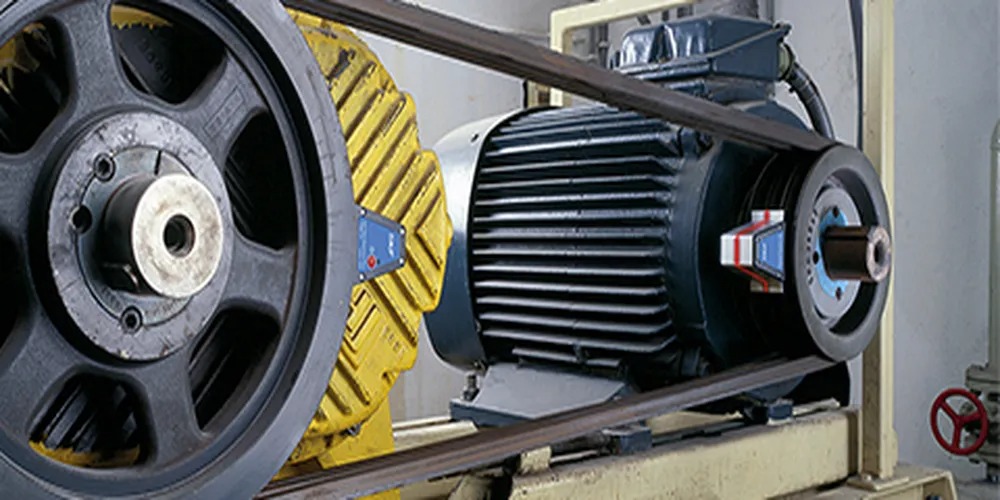

Use scenario of 3V QD pulley The pulley is a hub type part. Generally, the relative size is relatively large. The manufacturing process is usually based on casting and forging. Use less cast steel (poor performance of cast steel); Generally, smaller dimensions can be designed for development, and the material is steel). Belt pulley is mainly used for long-distance transmission of power, such as output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging presses and some small horsepower motorcycles, transmission of agricultural machinery power, air compressors, reducers, reducers, generators, cotton ginners
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
We also provides belts matching pulleys:https://planetary-gearboxes.en.Raydafon/productgrouplist-825651128/Belt.html?spm=a2700.shop_pl.98.11
Technological Processing
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Warehouse inventory The warehouse covers an area of 5000 square meters, and can provide various standard models of A/B/C/Z, with complete quantities and large inventory. At the same time, it accepts various non-standard customized drawings. The daily output is 10 tons and the delivery time is short.
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Factory Sale Various 3V Series Cast Iron Three-Groove American Standard QD Sheaves for 3V Belts
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
