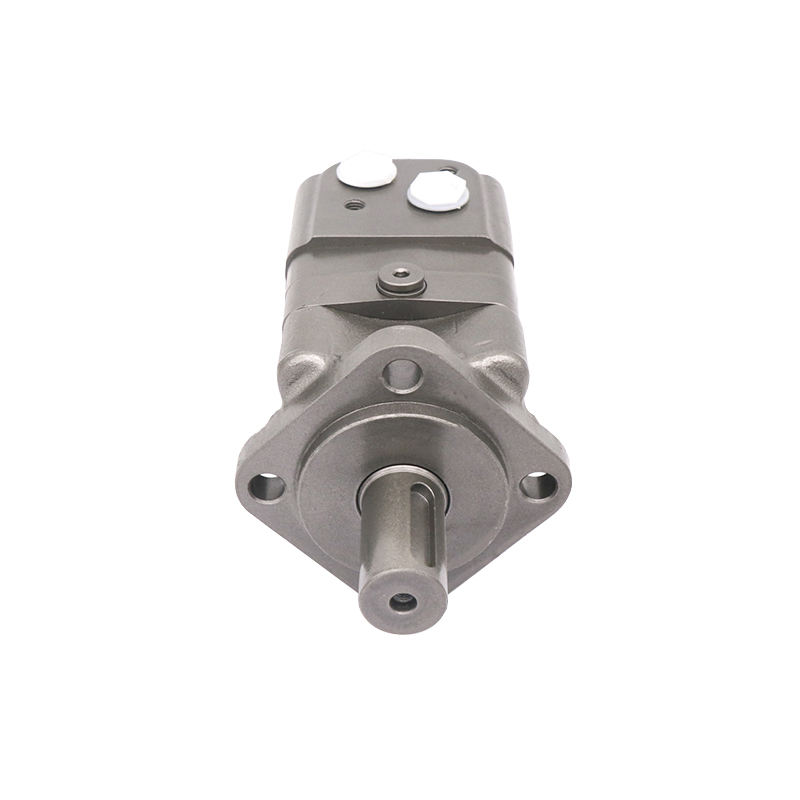

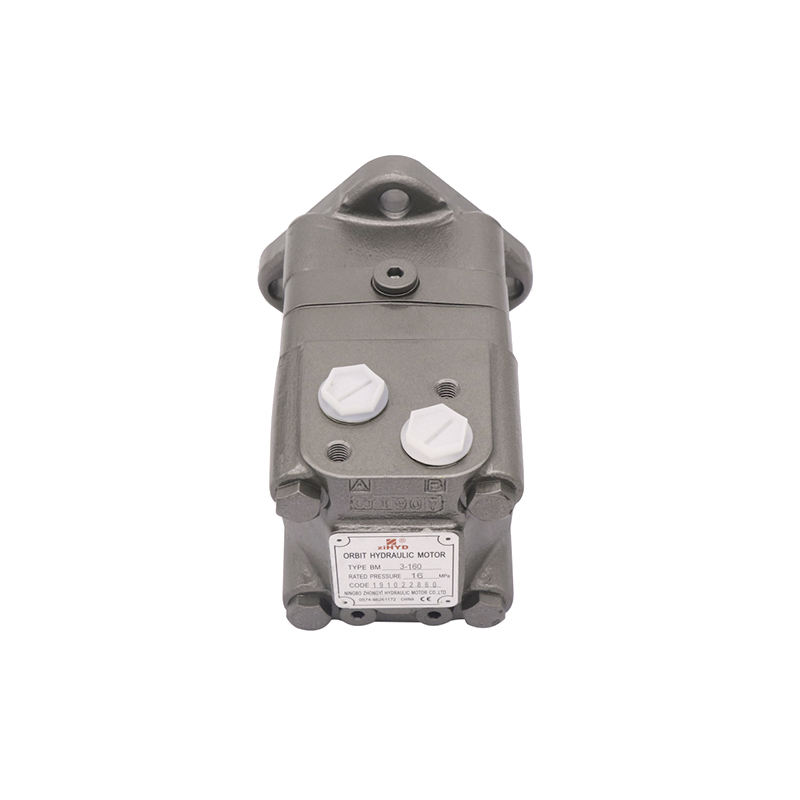

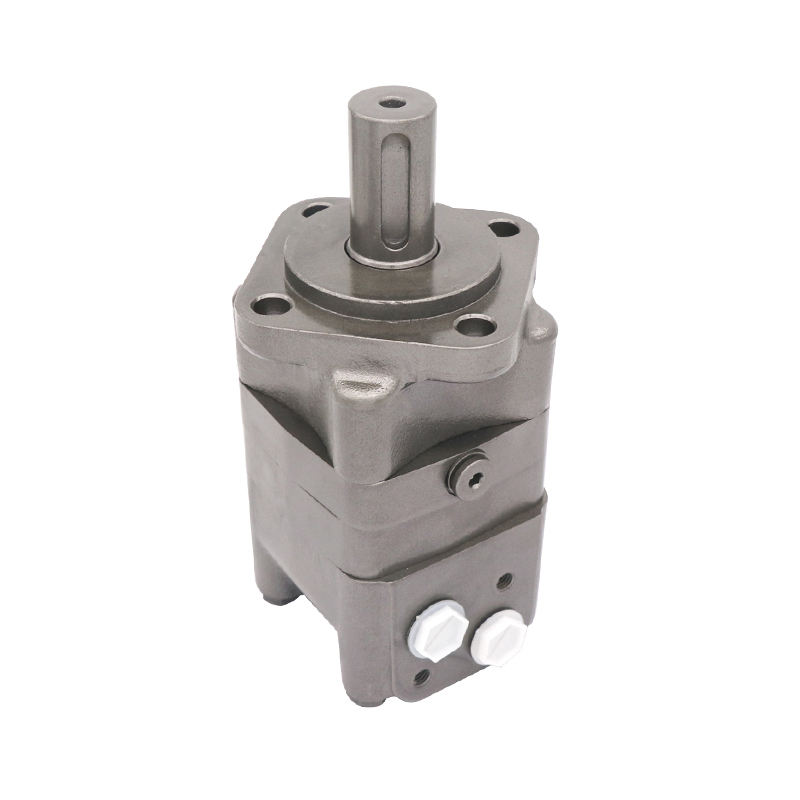

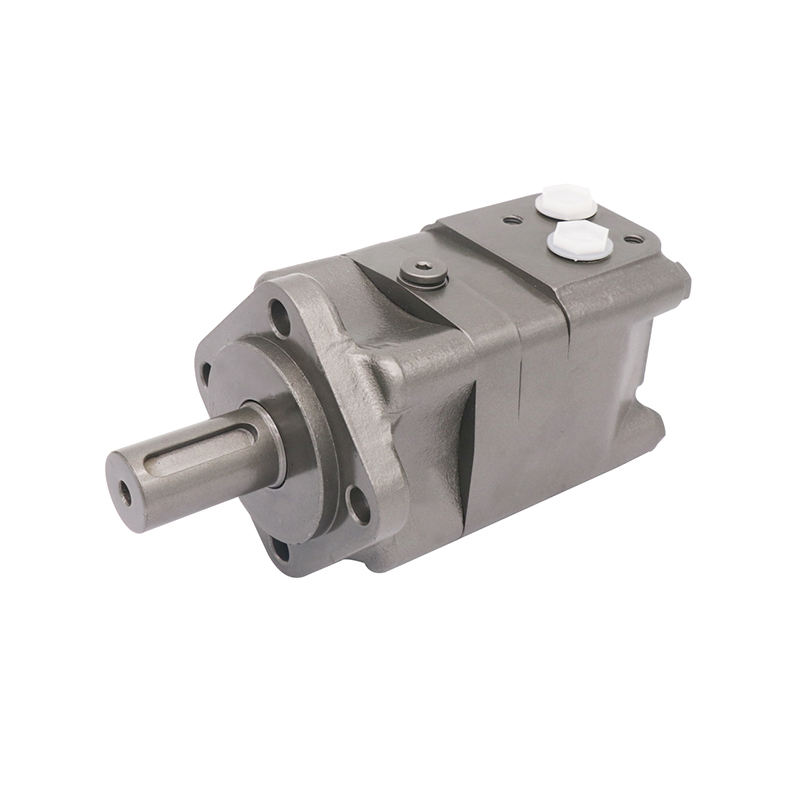

China Supplier Factory Exporter Eaton Char-lynn Motor 104-1384 104-1385 104-1386 104-1387 104-1388 104-1389 104-1390 104-1391

Raydafon Group, a trusted China supplier and factory exporter, offers high-quality Eaton Char-lynn Motors (104-1384 to 104-1391) for industrial applications. These robust motors deliver reliable performance, advanced engineering, and durability, ideal for machinery and automation needs. Experience enhanced efficiency and peace of mind with our competitively priced, superior products.

Send Inquiry

Product Description

BM3 TECHNICAL DATA
TYPE		BM3Y-80	BM3Y-100	BM3Y-125	BM3Y-160	BM3Y-200	BM3Y-250	BM3Y-315	BM3Y-400	BM3Y-500
		BM3YS-80	BM3YS-100	BM3YS-125	BM3YS-160	BM3YS-200	BM3YS-250	BM3YS-315	BM3YS-400	BM3YS-500
		BM3YW-80	BM3YW-100	BM3YW-125	BM3YW-160	BM3YW-200	BM3YW-250	BM3YW-315	BM3YW-400	BM3YW-500
Displacement(ml/r)		80.5	100.5	126.3	160.8	200.9	252.6	321.5	401.9	476.5
Max.Pressure.Drop(Mpa)	cont.	20.5	20.5	20.5	20.5	20.5	20	20	15.5	12
	int.	27.5	27.5	27.5	26	25	25	24	19	14
	peak.	29.5	29.5	29.5	28	27	27	26	21	16
Max.torque(N.m)	cont.	226	282	355	451	564	684	870	813	728
	int.	293	365	459	559	672	845	1032	1021	903
	peak.	306	383	481	588	708	891	1091	1141	1044
Max. Speed (cont.)(r/min)		805	745	590	465	370	295	230	185	155
Max.Flow(cont.)(L/min)		65	75	75	75	75	75	75	75	75
Max.Output.Power(cont.)(Kw)		16	18	18	18	18	18	17	11	9
Weight(kg)		9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3

Intermittent operation the permissible values may occur for max.10% of every minute

Peak load:the permissible values may occur for max.1% of every minute
